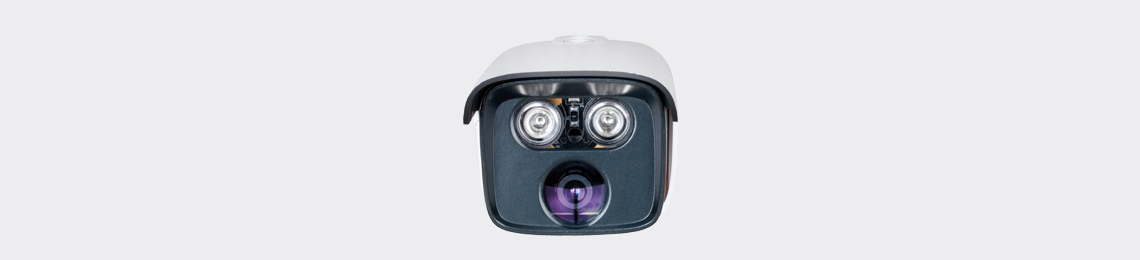

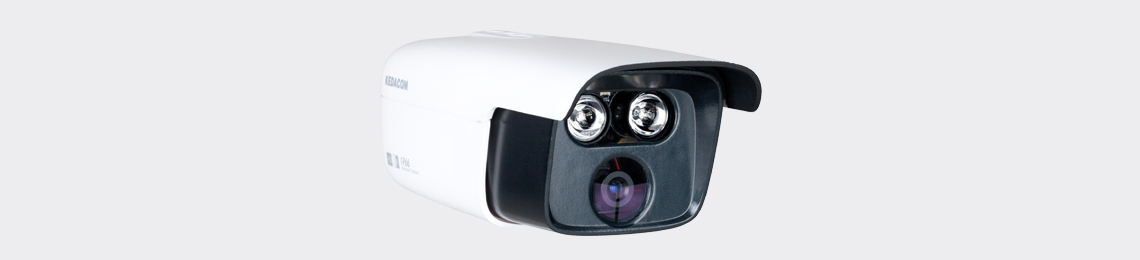

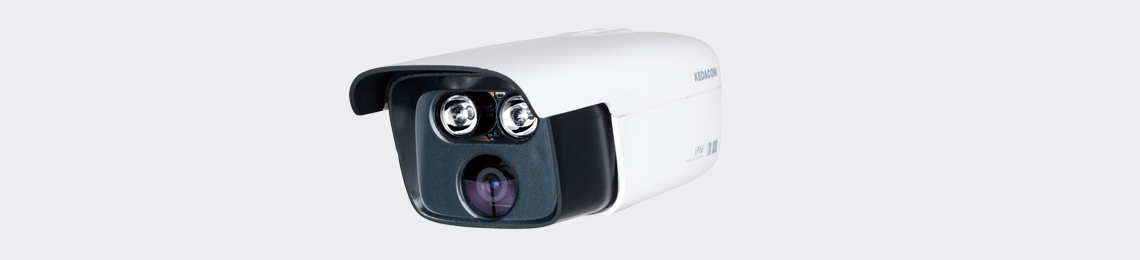

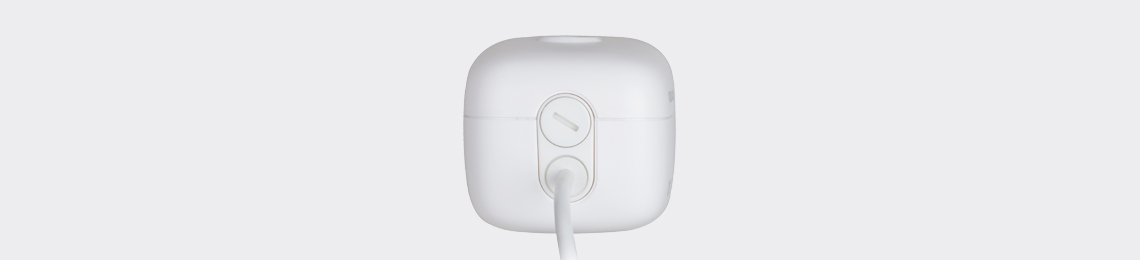

| IPC2152-AN(-IR2, -IR3, -IR4, -IR5, -IR6) | |
| Camera | |
| Image Sensor | 1/3’’ progressive scan CMOS |
| Pixels | 1.3 Megapixel |
| Min. Illumination | Color: 0.01lux @ (F1.6, AGC ON) |
| B/W: 0lux with IR | |
| Shutter Speed | 1/10 ~ 1/10,000s |
| Day / Night | Auto (ICR) / Color / B/W |
| Wide Dynamic Range | Digital WDR |
| S/N Ratio | >52dB |
| White Balance | Auto / Manual |
| Gain Control | Auto / Manual |
| Backlight Compensation | Off / BLC / WDR |
| Lens | |
| Mount Type | M12 |
| Focal Length | 3.6mm (-IR2) / 6mm (-IR3) / 8mm (-IR4) / 12mm (-IR5) / 16mm (-IR6) |
| Angle of View | 75.6° (-IR2) / 46.7° (-IR3) / 35.3° (-IR4) / 23° (-IR5) / 16.9° (-IR6) |
| Infrared | |
| IR LED | 1 pc IR LED(-IR2, -IR3, -IR4) 2 pcs IR LED(-IR5, -IR6) |
| IR Distance | 30m (-IR2, -IR3, -IR4) 50m (-IR5, -IR6) |
| IR Intensity | Smart IR |
| Video | |
| Compression | H.264 / MJPEG |
| Image Resolution | Main stream: 960p |
| Secondary stream: D1 | |
| Frame Rate | Main stream: 960p@30fps |
| Secondary stream: D1@30fps | |
| Bitrate | 32kbps ~ 16Mbps |
| Bitrate Control | VBR / CBR |
| Multi-stream | Supported |
| Caption | Date and time / Alarm / Customized |
| Privacy Masking | Up to 4 zones |
| Motion Detection | Up to 4 zones |
| Video Freeze | Supported |
| Digital Noise Reduction | 3D noise reduction |
| Image Flip | Flip / Mirror / Rotation at 90°,180°,270° |
| Audio | |
| Compression | G.711a / G.711u / ADPCM / G.722 |
| Bitrate | 32kbps ~ 64kbps |
| Audio Function | Bi-directional audio / AEC / Mixed audio recording / Dumb / Mute |
| Network | |
| Network Protocols | TCP/IP, UDP, HTTP, DHCP, DNS/DDNS, RTP/RTCP, RTSP, PPPoE, FTP, VSIP, UPnP, 802.1x, IPv4, IPv6 (optional) |
| User Interface | IPC Control (IE, Firefox, Chrome) |
| Max. User Access | Max. 10 Users (includes 2 internal) |
| Application Programming | ONVIF (Profile S), GB/T 28181-2011, API, CGI |
| Automatic Network Replenishment (ANR) | Supported |
| Alarm | |
| Alarm Triggers | Motion detection / Shield area / Network disconnect / Disk full / Disk Error / Alarm input |
| Alarm Events | Alarm report / Recording / Alarm caption / Snapshot / External output |
| Interfaces | |
| Ethernet | 10/100M, RJ45 interface |
| Audio In / Out | 1 x Line in / 1 x Line out |
| Control | 1 x RS485 |
| Alarm In / Out | 1 x Input / 1 x Output |
| Video Out | 1 x BNC, 1.0V [p-p] / 75Ω |
| Memory Slot | Micro SD card slot, supports up to 128GB |
| Environmental | |
| Operating Temperature | -30°C ~ 60°C / -22°F ~ 140°F |
| Operating Humidity | 10% ~ 95% |
| Protection Level | IP66 |
| Electrical | |
| Power | 12V DC ± 10% / PoE (IEEE802.3af) |
| Power Consumption | Max. 11W |
| Mechanical | |
| Weight | 1 kg / 2.2lb (Gross Weight) |
| Dimensions | 181.5 x 80 x 73mm / 7.15’’ x 3.15’’ x 2.87’’ |
CM-W13
Wall mounted/ceiling mounted small bracket
CM-W16
Wall mounted small bracket
