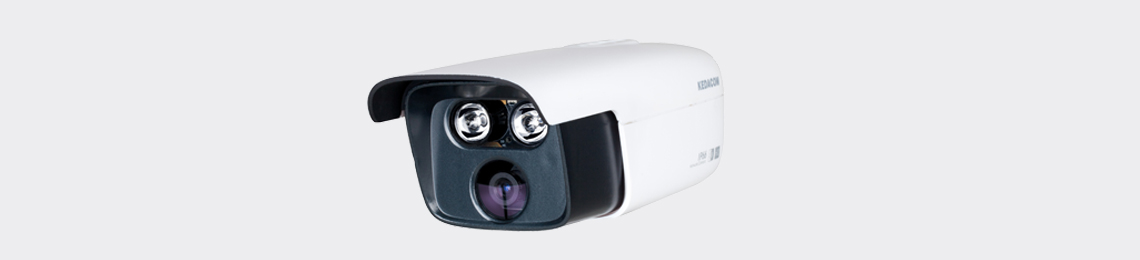

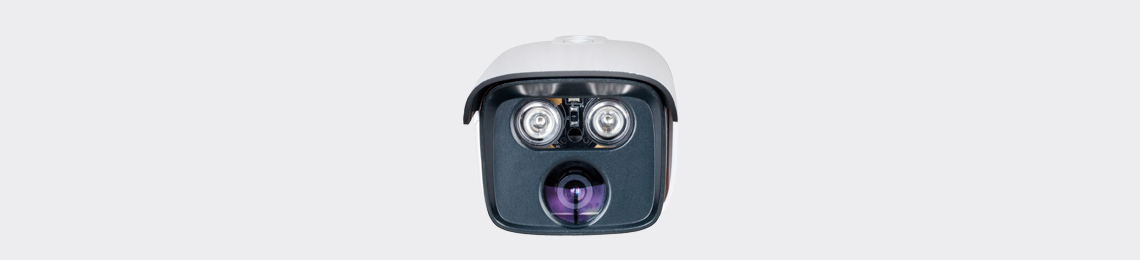

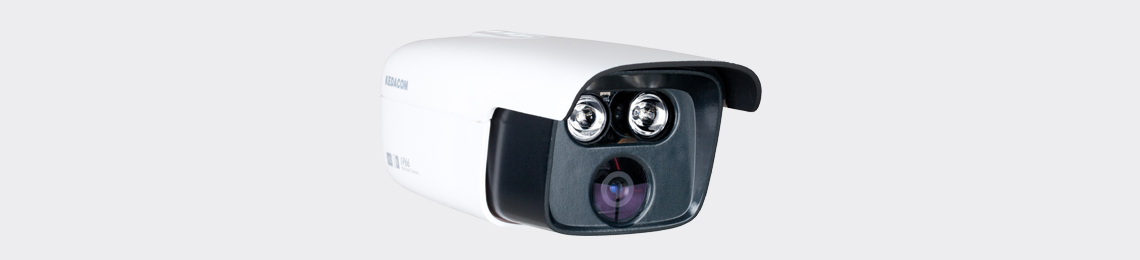

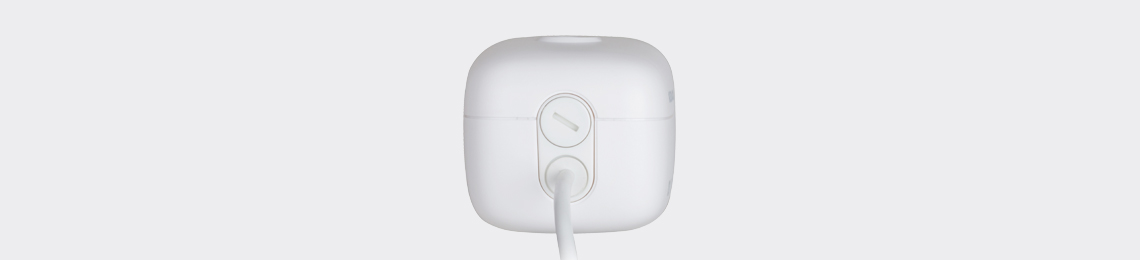

LC2150-BN-D 1.3MP HD Network IR Bullet Camera
Excellent Image Quality
  • 1.3 Megapixel 1/3’’ progressive scan CMOS sensor
  • High definition and smooth picture, 960p@30fps
  • Low illumination, 0.01lux with color picture
  • WDR support / 3D noise reduction
Integrated High Efficiency IR
  • Industrial IR LED with long operational lifespan
  • 30 ~ 50m IR distance
  • Smart IR function
Abundant Functions and Features
  • Dual-stream (960p+D1)
  • IP66
　LC2150-BN-D(IR2, IR3, IR4, IR5, IR6)
Camera
Image Sensor1/3’’ progressive scan CMOS
Pixels1.3 Megapixel
Min. IlluminationColor: 0.01lux @ (F1.6, AGC ON)
B/W: 0lux  with IR
Shutter Speed1/10 ~ 1/10,000s
Day / NightAuto (ICR) / Color / B/W
Wide Dynamic RangeDigital WDR
S/N Ratio>50dB
White BalanceAuto / Manual
Gain ControlAuto / Manual
Backlight CompensationOff / BLC / WDR
Lens
Mount TypeM12
Focal Length3.6mm (IR2) / 6mm (IR3) / 8mm (IR4) / 12mm (IR5) / 16mm (IR6)
Angle of View76.2° (IR2) / 46.3° (IR3) / 35.6° (IR4) / 22.8° (IR5) / 16.9° (IR6)
Infrared
IR LED1 pc IR LED(IR2, IR3, IR4)
2 pcs IR LED(IR5, IR6)
IR Distance30m (IR2, IR3, IR4)
50m (IR5, IR6)
IR IntensitySmart IR
Video
CompressionH.264
Image ResolutionMain stream: 960p
Secondary stream: D1
Frame RateMain stream: 960p@30fps
Secondary stream: D1@30fps
Bitrate64kbps ~ 8Mbps
Bitrate ControlVBR / CBR
Dual-streamSupported
CaptionDate and time / Alarm / Customized
Privacy MaskingUp to 4 zones
Motion DetectionUp to 4 zones
Video FreezeSupported
Digital Noise Reduction3D noise reduction
Image FlipFlip / Mirror
Network
Network ProtocolsTCP/IP, UDP, HTTP, DHCP, DNS/DDNS, RTP/RTCP, RTSP, PPPoE, FTP, VSIP, UPnP, 802.1x, IPv4, IPv6 (optional)
User InterfaceIPC Control (IE, Firefox, Chrome)
Max. User AccessMax. 10 Users (includes 2 internal)
Application ProgrammingONVIF (Profile S), GB/T 28181-2011, API, CGI
Alarm
Alarm TriggersMotion detection
Alarm EventsAlarm caption / Snapshot
Interfaces
Ethernet10/100M, RJ45 interface
Environmental
Operating Temperature-30°C ~ 60°C / -22°F ~ 140°F
Operating Humidity10% ~ 95%
Protection LevelIP66
Electrical
Power12V DC ± 10%
Power ConsumptionMax. 11W
Mechanical
Weight1 kg / 2.2lb (Gross Weight)
Dimensions181.5 x 80 x 73mm / 7.15’’ x 3.15’’  x 2.87’’
Recommended Bracket

CM-W13

Wall mounted/ceiling mounted small bracket

CM-W16

Wall mounted small bracket
