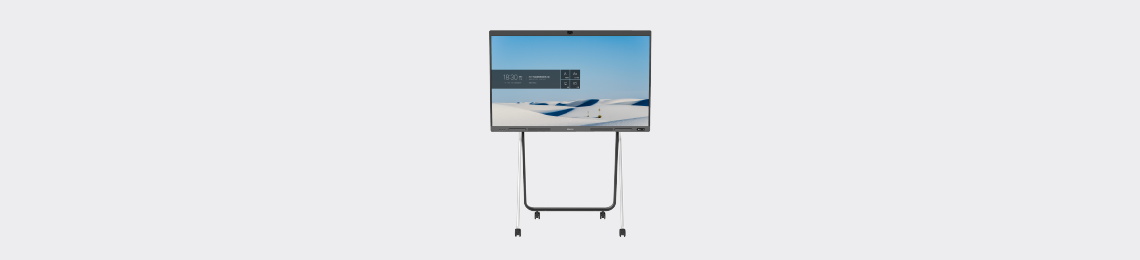

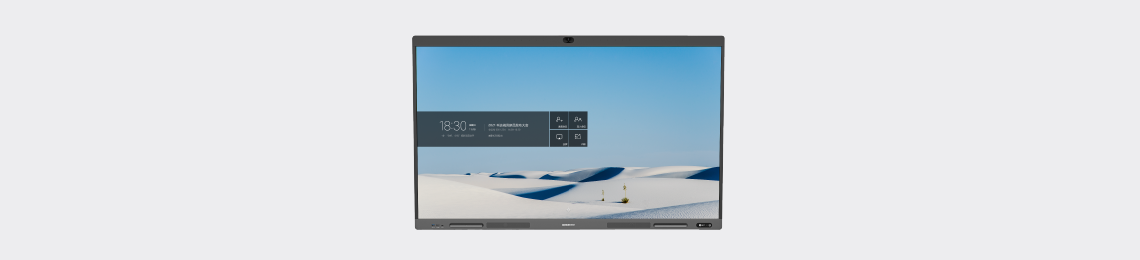

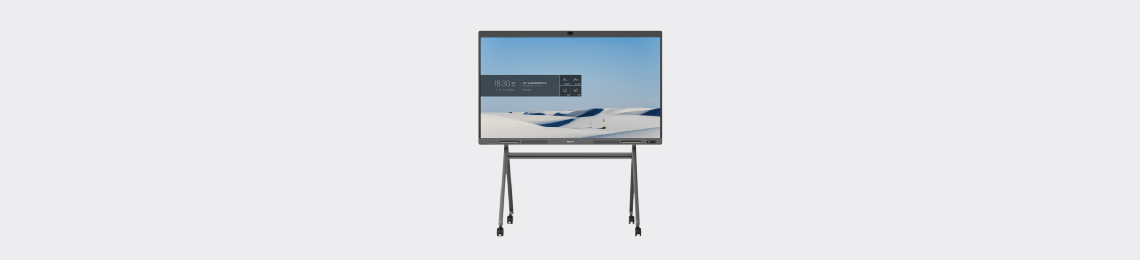

ZEN Z1120T Smart Meeting Board

All-in-one Design, Superior Performance

Deep integration of display, video conferencing, collaboration, AI and touch technologies

Built-in 4K AI camera, supporting auto framing and speaker tracking, facilitates each conference

Embedded smart array microphones and stereo sound speakers provide professional audio experience

Easy and concise UI, rich versatile connectivity, effective for all types of workspaces

Duo OS supported with OPS slot, esay extension for multiple application scenarios

Built-in bulletin window, easy for key information and company culture demonstration

4K UHD Display, Vivid Image Quality

Anti-glare 4K 60FPS panel, 4K wireless projection, ultra-high resolution

Full lamination tempered glass, display and writing without distortion

85% NTSC rich color gamut, 178° ultra wide visible angle

Profound AV Capability, Born for Conferencing

Native 4K UHD video conferencing solution, face-to-face communication experience

Third party cloud meeting services compatible, flexible to start conference

H.265 encoding and effective transmission technologies, lower bandwidth, higher picture quality

Smart AEC / ANS / AGC process engine, crystal clear audio

Multiple encryption mechanism: H.235, 256bit AES encryption, TLS and SRTP protocol, password authentication and role-based authorization, etc.

Interactive Collaboration, Unlimited Inspiration

Borderless interactive whiteboard, writing your mind freely without restraint

Ultra-low writing latency, super-high touch accuracy, smooth pen-to-paper writing sense

20 touch points, dual-person writing, palm-swipe erasing, convenient operation

Instantly annotate on any interface, freely capture your ideas and key points

Smart drawing recognition, media and document merging, practical meeting tools, helping fast brainstorm

Local save, QR code download, Email sharing, easy save and sharing all meeting minutes

Versatile Casting Capability, Flexible Projection

Multiple ways of projection connections, including physical input, OPS, Casting dongle, PC/Mobile/Skyshare

Wireless casting and reverse control of your laptop via casting dongle, one-click to share, up to 4K30 resolution

Easy switch via window navigator between different casting sources

Open interoperability, Easy Operation

Standard H.323 / SIP, interoperable with standard conference endpoints and systems from third-party vendors

Open SDK,  allows to use and develop industry custom applications

USB configuration and upgrading, easy to install, use and maintenance

ZEN Z1120T
Sub Models-S-Pro-86-86-Pro
PanelScreen Size65"86"
Backlight TypeE-LEDD-LED
Aspect Ratio16:9
Response Time8ms (typ. G-to-G)
Refreshing Frequency60Hz
Viewing Angle178°(H) / 178°(V)
Color Gamut85% NTSC
Glass SurfaceThickness3mm tempered
Lamination TechnologyFull lamination
Anti-Glare GlassYes
TouchSensing TypeInfrared Touch Frame
Touch Points≤20 points
Writing Latency35ms
Touch Accuracy±2mm
CameraOutput Resolution4K30 (-Pro model), 1080P30, 720P30, 480P30
Horizontal Field of ViewMax. 87°
Lens2x digital zoom
Speaker TrackingSupported
Auto FramingSupported
Privacy ProtectionSupportedNot Supported
MicrophoneArray Quantity6
Frequency Response100Hz ~ 22kHz
Sound Pickup Range180° (H), 90° (V)
Sound Pickup DistanceMax. 8m
Audio FeaturesBuilt-in AI enhanced AEC / ANS / AGC algorithm
Voice LocalizationSupported
SpeakerBuilt in Speakers2x15W/8Ω
Frequency Response150Hz ~ 20kHz
Stereo AudioSupported
Native Video
System StandardsH.323, SIP, RTC
H.221, H.225, H.235, H.239, H.245, H.281, H.460
Video StandardsH.264 Base Profile, H.264 High Profile, H.265
Audio StandardsG.711A, G.711u, G.722, G.722.1 Annex C, G.729, MP3, MPEG4-AAC (LD), Opus
Dual-streamH.239 / BFCP
Adjustable bandwidth ratio
Wireless content sharing by SkyShare software or NexPresence transmitter
Conference Bitrate64Kbps ~ 8Mbps
Video ResolutionVideo:
4K (3840 x 2160, -Pro model), 1080p (1920 x 1080), 720p (1280 x 720), VGA (640 x 480)
4K (3840 x 2160, -Pro model), 1080p (1920 x 1080), 720p (1280 x 720), VGA (640 x 480)
Audio FeaturesDual stereo sound
Acoustic Echo Cancellation (AEC), Acoustic Noise Suppression (ANS), Automatic Gain Control (AGC)
Automatic lip synchronization
Mute and dumb
Security FeaturesH.235 conference encryption
256-bit AES encryption
TLS and SRTP protocol
Conference password authentication
User authentication and role-based authorization
Advanced setting authentication
Gatekeeper password-protected
SystemCPUDual-chip 2*4-core@1.5 GHz
OSAndroid 8.0
Network ProtocolsTCP / IP, Telnet, HTTPS, HTTP, DHCP, RTP / RTCP, DNS, SSH, 802.11a/b/g/n/ac
IP ProtocolsIPv4 and IPv6 dual stack
Maintenance FunctionsWeb interface
NMS manageable and event logs
Factory settings restoration
Loop / image / audio / network tests
Real-time video / audio bitrate display
Configuration file importing / exporting
ConnectivityVideo InterfacesInput:
1 x HDMI 2.0 (Rear, Support 4K, ARC), 1 x HDMI (Front, Support 4K), 1x OPS-C (Support 4K)
1 x HDMI 2.0 (Rear, Support 4K)
Audio InterfacesOutput:
1 x 3.5mm, 1 x SPDIF
Control Interfaces1 x Touch USB interface, Touch X conference touch pad supported. (Support native conferencing control operations via pad including conference initiating and control,  participants management,  volume adjustment, content sharing, camera control, preset operation, exit/end conference, etc)
1 x RS232
Plug PC SlotOpen Pluggable Specification (OPS) supported, 1x OPS-C interface.
Network Interfaces1 x 10 / 100 / 1000M Ethernet, RJ45 interface;
1 x Built-in 2.4G+5.8G Wi-Fi module,  AP and station mode
Other Interfaces2 x USB 3.0, 1 x USB 2.0, 1 x Type-C
PhysicalVESA600*400mm, 4-M8 screw1000*400mm, 4-M8 screw
EnvironmentalOperating temperature: 0°C ~ 45°C / 32 ~ 113
Operating humidity: 10% ~ 90%
Atmospheric pressure: 53 ~ 106 kPa
ElectricalPower: 100 ~ 240V AC, 50 ~ 60Hz
Power consumption: Max. 300W without OPS
Power: 100 ~ 240V AC, 50 ~ 60Hz
Power consumption: Max. 460W without OPS
MechanicalNet weight: 42kg / 92.59lb
Package weight: 58.9kg / 129.85lb
Product dimensions: 938.5 x 1493.1 x 68.5mm / 36.95" x 58.78" x 2.70"  (H x W x D)
Package dimensions: 1150 x 1670 x 230mm / 45.28" x 65.75" x 9.06"  (H x W x D)
Net weight: 75kg / 165.35lb
Package weight: 90kg / 198.42lb
Product dimensions: 1197 x 1960 x 93.7mm / 47.13" x 77.17" x 3.69"  (H x W x D)
Package dimensions: 1370 x 2170 x 335mm / 53.94" x 85.43" x 13.19"  (H x W x D)
