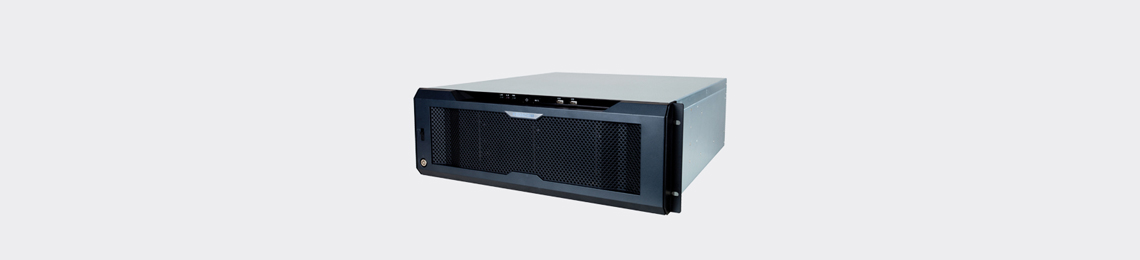

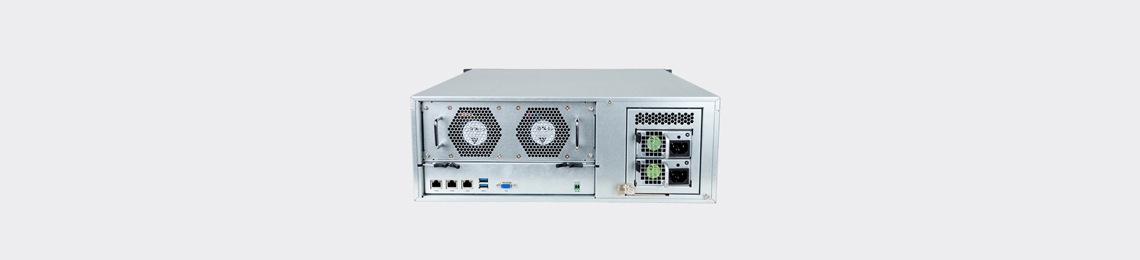

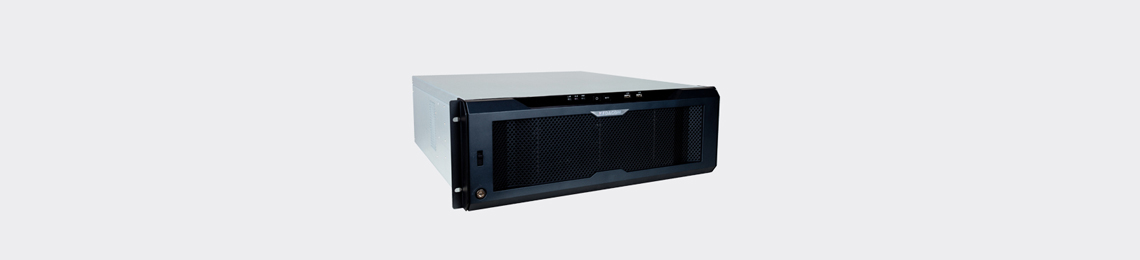

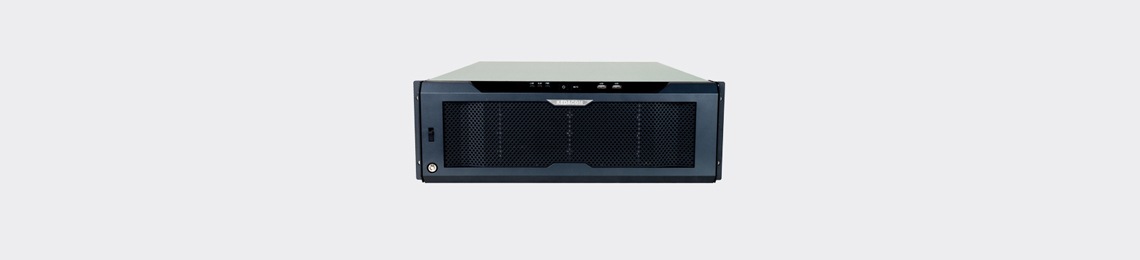

VS200G 16 Bay IP SAN
High-performance, High-capacity
  • Max.  500Mbps recording rate
  • Max. 16 HDDs up to 96TB storage
  • High reliability
  • Embedded Linux
  • RAID 0/1/5/6/10, RAID X
  • HDD hot spare
  • Redundant Power Supply
  • HDD hot-swap
  • Ethernet trunk
Abundant functions and features
  • Multiple units management
  • Alarm management
  • Modular design



 VS200G
General
Disk InterfaceSATA: 1TB, 2TB, 3TB, 4TB, 6TB
RAIDRAID0,1,5,6,10, RAID X
HDD Hot-swapSupported
Max. Internal HDDs16 x 3.5’’ HDD
Max. 96TB (up to 6TB/each)
Storage Management
Recording rate500Mbps
Disk management:S.M.A.R.T. (Self-Monitoring, Analysis and Reporting)
Device Management
ManagementWeb-based GUI,  Multiple units management
AlarmSound, LED, Email,  GUI Warning
Network
Network ProtocolsTCP/IP, UDP, HTTP, FTP, IPv4, iSCSI, NAS, NRU
TrunkSupported
Interfaces
Ethernet3 x Gigabit network port, RJ45 interface
OutputVGA output for debugging
USB2 x USB3.0, for keyboard or user data backup
Environmental
Operating Temperature10°C ~ 35°C / 50°F ~ 95°F
Operating Humidity10% ~ 90%
Electrical
Power100 ~ 240V AC, 50 ~ 60Hz
Redundant Power Supply
Power ConsumptionMax. 216W (HDD not included)
Mechanical
WeightApprox.20kg (HDD not included, redundant power supply)
Dimensions156 x 483 x 500mm / 6.14’’ x 19.02’’ x 19.69’’
