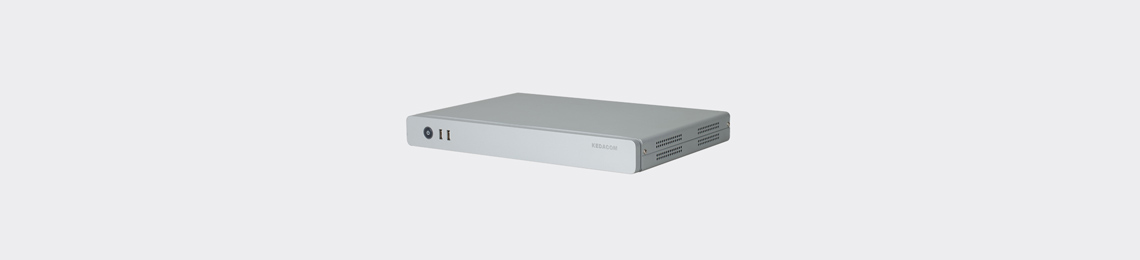

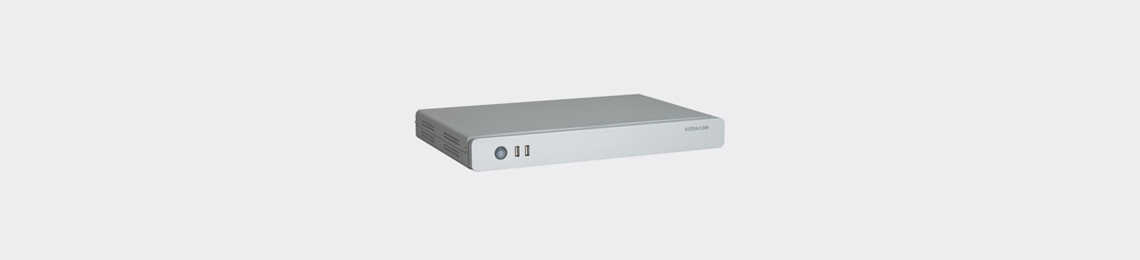

NVR1825-HP 2 Bay PoE Network Video Recorder
High-performance
  • Up to 1 x 1080p@30fps / 4 x 720p@30fps video decoding capability
  • 1080p supported
Small size
  • 1.6Kg / 3.52lb
  • 350 x 240 x 40mm / 13.78’’ x 9.45’’  x 1.57’’
Easy to install
  • Automatic network organizing
  • Bulid-in DHCP server
  • 4 PoE port
High reliability
  • Embedded Linux
  • Low power consumption
  • Supports Automatic Network Replenishment (ANR)
  • Supports Packet Loss Recovery (PLR)
Abundant functions and features
  • E-Map, TV-Wall supported
  • Bi-directional audio, Broadcasting
  • NAT, Socks5
  • Alarm management
  • Free CMS (NVR Station), supports 128 NVR simultaneously
  • CMS supports 6 screens simultaneously (4 x Live viewing, 1 x E-Map, 1 x TV-Wall)
 NVR1825-4HPNVR1825-9HP
Video/Audio Input
IP Camera Input4 channel9 channel
Resolution1080p, UXGA, 960p, 720p, XGA, SVGA, D1, CIF, QCIF
CompressionH.264
ProtocolsOnvif, RTSP, KEDACOM
Incoming Bandwidth20Mbps45Mbps
Live Viewing
Local Display1 x HDMI, 1 x VGA, simultaneously output same content
Multi Screen Display Local monitor1, 2, 41, 2, 4, 9, 1+4, 1+8
Multi Screen Display
Client
up to 4 screen simultaneously:
1, 3, 4, 9, 12, 16, 20, 25, 30, 36, 42, 49, 56, 63, 64
1+5, 1+7, 1+8, 1+9, 1+11, 1+15, 1+16, 1+33, 1+47, 1+48
E-MapLive Viewing in E-Map (NVR Station)
FunctionE-PTZ / Scheme / Polling / TV-Wall (optional with decoder)
Recording
Resolution1080p, UXGA, 960p, 720p, XGA, SVGA, D1, CIF, QCIF
ModeManual / Continuous / Schedule / Event (Pre / Post)
Event TriggerAlarm input / Video lost / Motion detection
TagSupported
ReliabilityAutomatic Network Replenishment (ANR)
Search & Playback
Search ModeDate and time (Calendar) / Event
Resolution1080p, UXGA, 960p, 720p, XGA, SVGA, D1, CIF, QCIF
Playback
(Local Monitor)
1 x 1080p@30fps or 4 x 720p@30fps1 x 1080p@30fps or 4 x 720p@30fps
Playback
(Client)
4 x 1080p@30fps4 x 1080p@30fps
Synchronize Playback (Local Monitor)4 x 720p@30fps4 x 720p@30fps
Synchronize Playback
(Client)
4 x 1080p@30fps4 x 1080p@30fps
FunctionSlow forward / Fast forward / Loop / Single frame / E-PTZ
Storage
Max. Internal HDDs2 x 3.5’’ HDD
Max. 8TB (up to 4TB/each)
Audio
CompressionG.711a / G.711u / ADPCM
Bit rate32kbps ~ 64kbps
Audio FunctionBi-directional audio / Dumb / Mute / Broadcasting
Alarm
Alarm TriggersAlarm input / Video lost / Motion detection / System alarm
Alarm EventsSnapshot / Recording / PTZ preset / Alarm out / Buzzer / Email / Link to Client / Alarm caption
System
Operating SystemEmbedded Linux
User ManagementAdmin / User
Log ManagementUser login / User operation / Alarm / Backup / Update
Aplication ProgrammingNVR Station SDK
Network
Network ProtocolsTCP/IP, UDP, HTTP, DHCP, DNS/DDNS, RTP/RTCP, RTSP, PPPoE, FTP, SNTP, VSIP
Viewer SoftwareCMS (NVR Station) / Web / iOS app / Android app
Max. User Access64 Users
Output Bandwidth45Mbps
FunctionNAT / Socks5 / Multiple network access / Packet loss recovery / Auto network organizing
Network TestSupported
Interfaces
Ethernet1 x 10/100M, RJ45 interface
PoE4 x 10/100M PoE port, RJ45 interface, 15W / each port
Video Out1 x HMDI (up to 1920 x 1080@60Hz)
1 x VGA (up to 1920 x 1080@60Hz)
Audio In / Out1 x RCA Line in / 1 x RCA Line out
Alarm In / Out2 x Inputs / 2 x Outputs
Control1 x RS485
USB2 x USB 2.0
Environmental
Operating Temperature-10°C ~ 55°C / 14°F ~ 131°F
Operating Humidity10% ~ 90%
Electrical
Power12V DC ± 10%
Power ConsumptionMax. 20W (HDD / PoE not included)
Mechanical
Weight1.6kg / 3.52lb (HDD not included)
Dimensions350 x 240 x 40mm / 13.78’’ x 9.45’’  x 1.57’’
