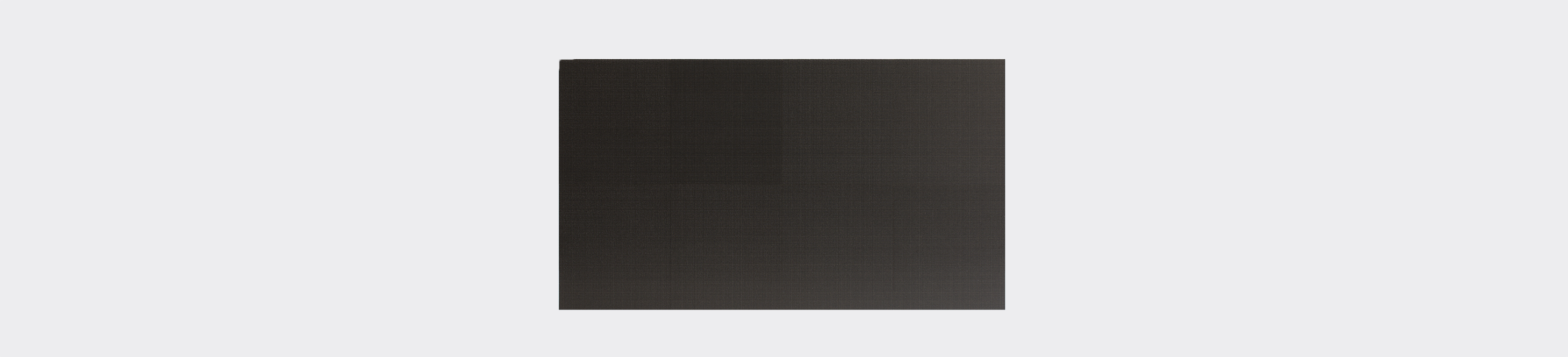

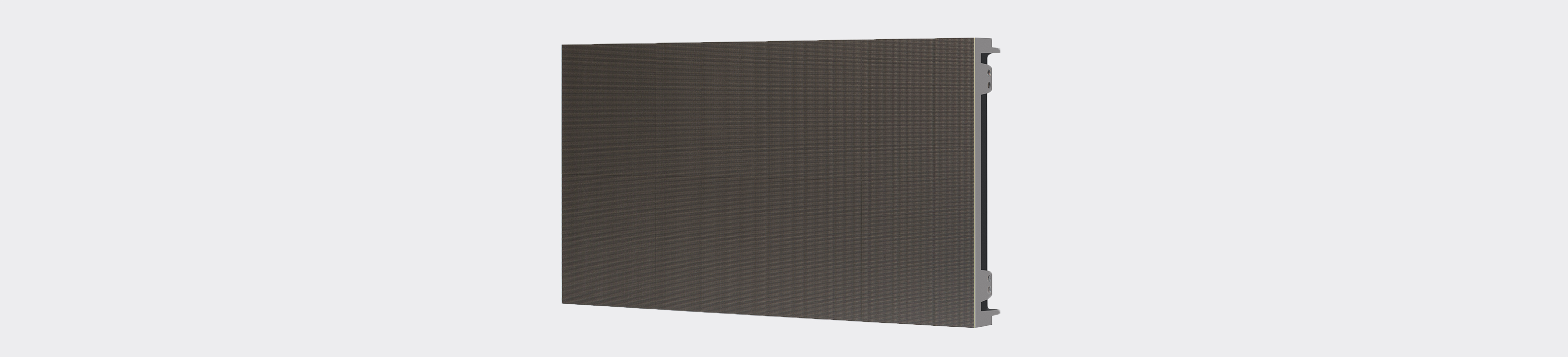

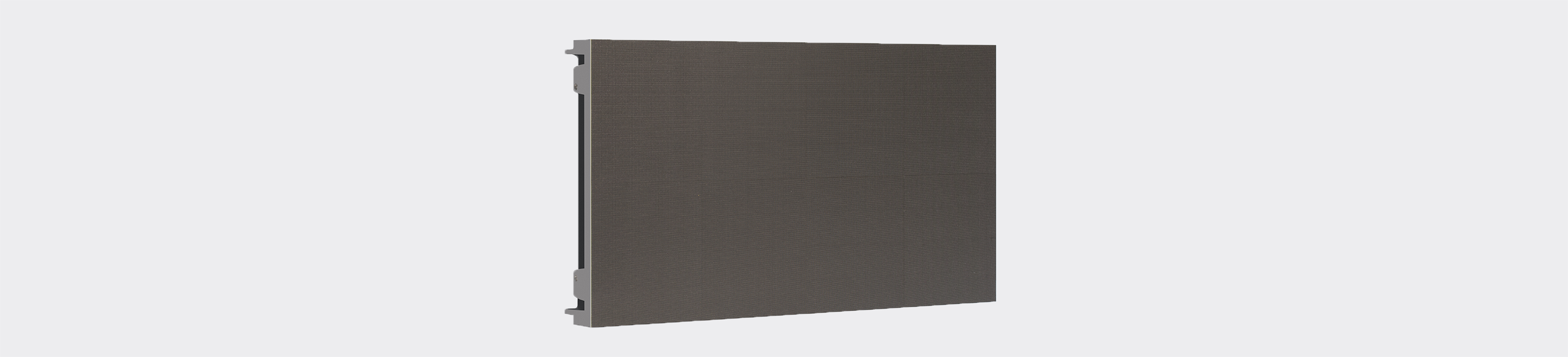

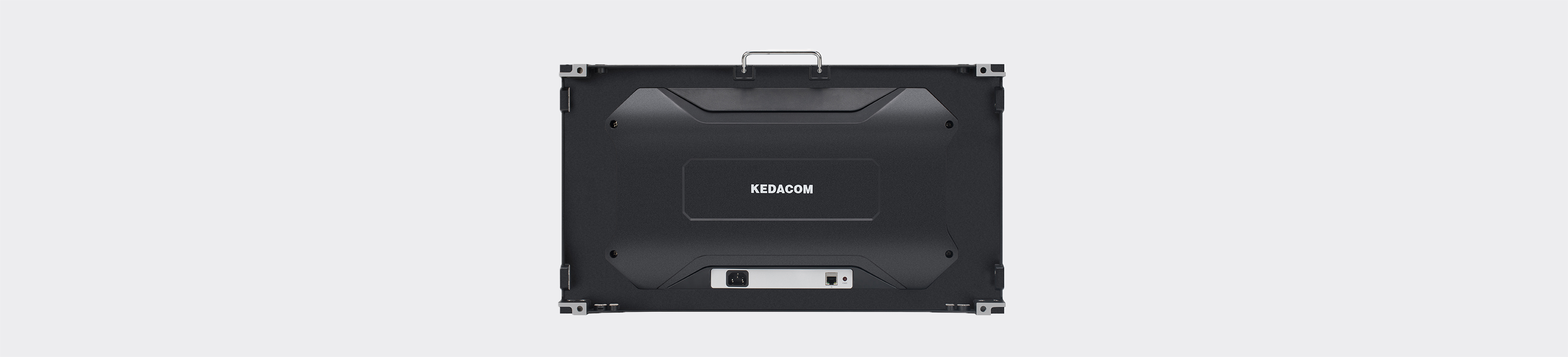

JY-P3-X12L/15L P3 LED Display Screen
ModelJY-P3-X15L
(Single Power Single Receiver)
JY-P3-X12L
(Single Power Single Receiver)
BitmapBitmap
ModulePixel ConfigurationSMD 3 in 1SMD 3 in 1
Pixel Pitch (mm)1.56251.25
Module Resolution (W × H)96 × 108120 × 135
Module Dimensions (W × H × D)150.00 × 168.75 x 11.68 (mm)150.00 × 168.75 x 11.68 (mm)
UnitNo. of Modules per Unit (W × H)4 × 24 × 2
Unit Resolution (W x H)384 × 216480 × 270
Unit Dimensions (W × H × D)600 × 337.5 × 69 (mm)600 × 337.5 × 69 (mm)
Unit Area (m2)0.20250.2025
Weight per Unit (kg / unit)6.66.6
Flatness of Unit (mm)≤ 0.1≤ 0.1
Hardware InterfaceVideo Receive Port (RJ45)11
Power Input Port11
 Brightness Correction of Single PointSupportedSupported
Color Correction of Single PointSupportedSupported
White Balance Brightness (nits)800 (CT 6500k, by correction)800 (CT 6500k, by correction)
CT (K)2000~9300, adjustable2000~9300, adjustable
Viewing Angle (H)160°160°
Viewing Angle (V)160°160°
Central Light Deviation≤ 2.5%≤ 2.5%
Brightness Uniformity≥ 98%≥ 98%
Color UniformityWithin ±0.003 Cx, CyWithin ±0.003 Cx, Cy
Contrast Ratio5000:15000:1
ElectricalMax. Power Consumption106W/unit, 524W/m2135W/unit,666W/m2
Avg Power Consumption35W/unit, 173W/m245W/unit, 222W/m2
Power SupplyAC100~240V (50~60 Hz)AC100~240V (50~60 Hz)
Processing CapacityDriving ModeConstant Current DriveConstant Current Drive
Frame Rate (Hz)50 / 6050 / 60
Refresh Rate (Hz)38403840
OperationLifetime (Hrs)100,000100,000
Operating Temp. (℃ )-10 ~ +55-10 ~ +55
Storage Temp. (℃ )-25 ~ +85-25 ~ +85
Operating Humidity (RH)10 ~ 90% RH non-condensing10 ~ 90% RH non-condensing
Storage Humidity (RH)10 ~ 95% RH non-condensing10 ~ 95% RH non-condensing
MaintenanceServiceabilityModule front maintenanceModule front maintenance
