| Model | JY-S100-D15L (Sender) | JY-S100-T-D15L (HDBaseT twisted- pair sender) | JY-S100-D12L (Sender) | JY-S100-T-D12L (HDBaseT twisted- pair sender) | |

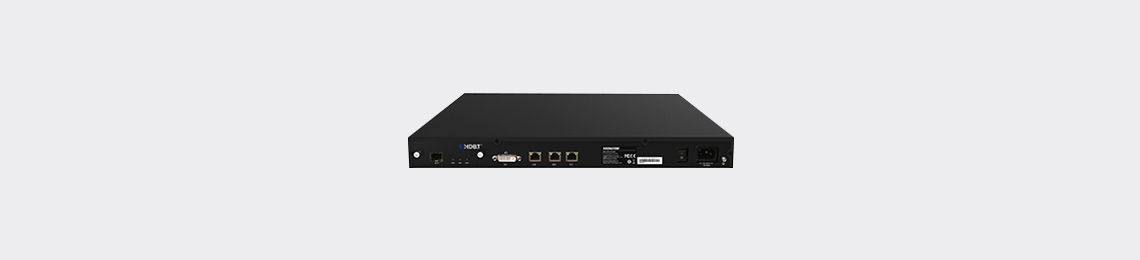

 Bitmap |  Bitmap | Bitmap |  Bitmap | ||
| Input | Video Input | 1 × DVI-D | 1 × DVI-D 1 × HD BaseT twisted-pair | 1 × DVI-D | 1 × DVI-D 1 × HD BaseT twisted-pair |
| Standard | VESA | VESA HD BaseT protocol, suggest CAT-6S/ UTP | VESA | VESA HD BaseT protocol, suggest CAT-6S/ UTP | |
| Transmission Distance (m) | 10 | 100 | 10 | 100 | |
| Max. Load Resolution | 1920 × 1080p @ 60Hz | 1920 × 1080p @ 60Hz | 1920 × 1080p @ 60Hz | 1920 × 1080p @ 60Hz | |
| High Bit Video Input | 12bit / 10bit / 8bit | 12bit / 10bit / 8bit | 12bit / 10bit / 8bit | 12bit / 10bit / 8bit | |
| Output | Video Output | 28 data ports output, self-adaptive | 28 data ports output, self-adaptive | 20 data ports output, self-adaptive | 20 data ports output, self-adaptive |
| Processing Capacity | Video Format | RGB / YUV4:2:2 / YUV4:4:4 | RGB / YUV4:2:2 / YUV4:4:4 | RGB / YUV4:2:2 / YUV4:4:4 | RGB / YUV4:2:2 / YUV4:4:4 |
| Mode Selection | Supported | Supported | Supported | Supported | |
| Point-by-point Color Correction | Supported | Supported | Supported | Supported | |
| Point-by-point Brightness Correction | Supported | Supported | Supported | Supported | |
| Management | LAN Port | 1 × LAN port (100Base-TX), for uniform control | 1 × LAN port (100Base-TX), for uniform control | 1 × LAN port (100Base-TX), for uniform control | 1 × LAN port (100Base-TX), for uniform control |
| Synchronous Port | 1 × M/S senders data sync port | 1 × M/S senders data sync port | 1 × M/S senders data sync port | 1 × M/S senders data sync port | |
| Debug Port | 1 × RS232 | 1 × RS232 | 1 × RS232 | 1 × RS232 | |
| General | Dimensions (W × H × D) | 443 × 384 × 44 (mm) | 443 × 384 × 44 (mm) | 443 × 384 × 44 (mm) | 443 × 384 × 44 (mm) |
| Weight (kg) | 5.6 | 5.7 | 5.6 | 5.7 | |
| Power Input | AC100~240V (50~60Hz) | AC100~240V (50~60Hz) | AC100~240V (50~60Hz) | AC100~240V (50~60Hz) | |
| Max. Consumption (W) | 46 | 51 | 42 | 47 | |
| Operating Temp. (℃ ) | -10 ~ +55 | -10 ~ +55 | -10 ~ +55 | -10 ~ +55 | |
| Storage Temp. (℃ ) | -25 ~ +85 | -25 ~ +85 | -25 ~ +85 | -25 ~ +85 | |
| Operating Humidity (RH) | 10~90% RH non-condensing | 10~90% RH non-condensing | 10~90% RH non-condensing | 10~90% RH non-condensing | |
| Storage Humidity (RH) | 10~95% RH non-condensing | 10~95% RH non-condensing | 10~95% RH non-condensing | 10~95% RH non-condensing | |
