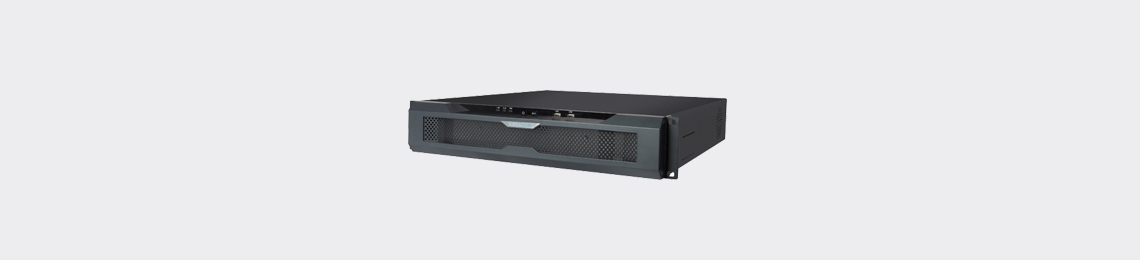

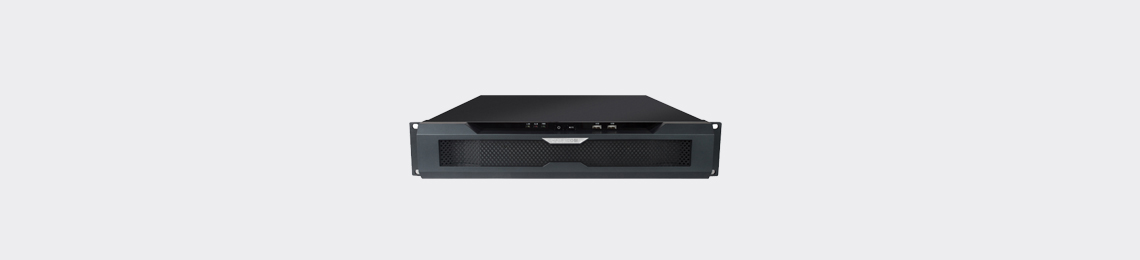

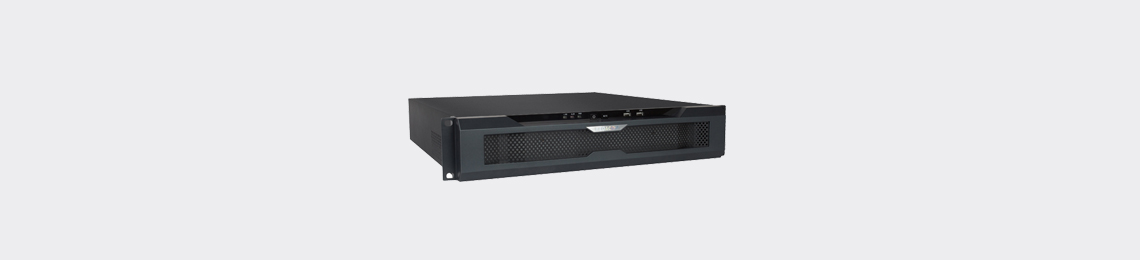

VS-G800-A Media Processing Gateway
Product Features
  • Based on embedded structure, the system is stable and reliable
  • Support 1080P resolution rate in maximum
  • Single equipment supports the registration of 32 sets of G gateway in maximum
  • Single equipment supports 31 slave machines in maximum and realize balance load of multiple-transcoding gateway
  • Coordinate with G400-A to invoke and monitor the stream of the third party in the meeting
  • Coordinate with G400-A to realize the transcoding of different parameters coding

VS-G800-A
Design Structure
Embedded design
Equipment Capacity
Video format
H.264
Input resolution
1080P, 720P, D1, 4CIF, CIF, QVGA, QCIF,
Output resolution
1080P, 720P, D1, 4CIF, CIF, QVGA, QCIF
Video bit rate
64K~8M
Input audio format
ADPCM, G.711u, G.711α, G.722.1C, MP3
Output audio format
G.711u, G.711α, MP3
Audio bit rate
16~64Kbps
Maximum support gateway
Single set supports at most 32 sets of G gateway access
Maximum slaves
Single set supports at most 31 slaves in the connection
Network protocol
HTTP, RTP/RTCP, etc.
Typical Application
Transcoding capacity
D1 transcoded to 4CIF ×10 channels, D1 transcoded to QVGA×25 channels
720P transcoded to 720P ×4 channels, 1080P transcoded to 1080P×2 channels
Physical Features
Network interface
2×RJ45，100Base-TX/1000Base-T
Physical dimensions
88mm (Height) ×443mm (Width) ×461mm (Depth)
Weight
13Kg
Working Environment
Power supply
Power supply AC 100～240V,50～60Hz
Power consumption
≤130W
Working temperature
0℃～55℃
Storage humidity
10%～90%RH
