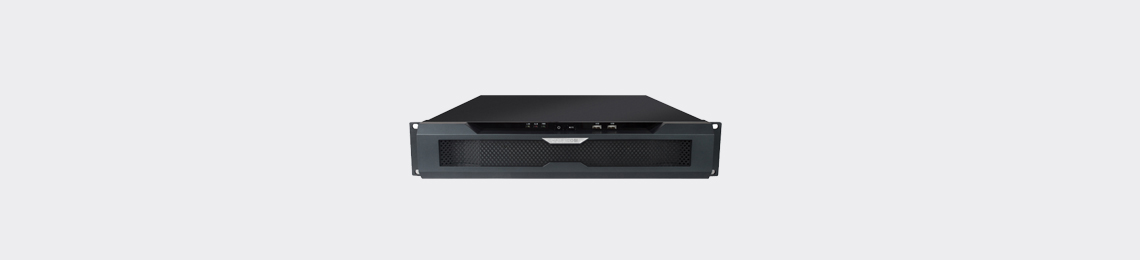

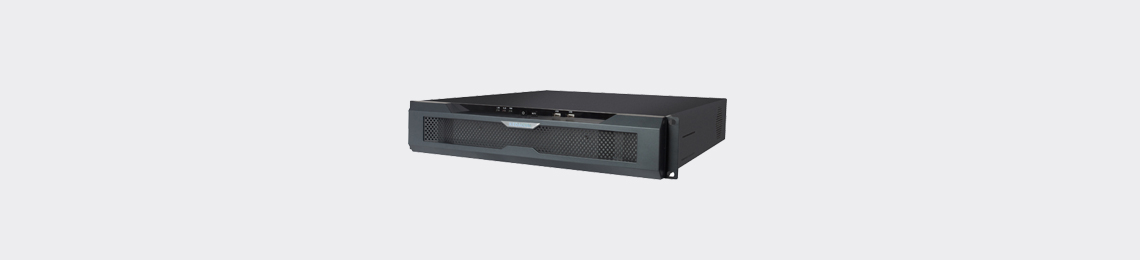

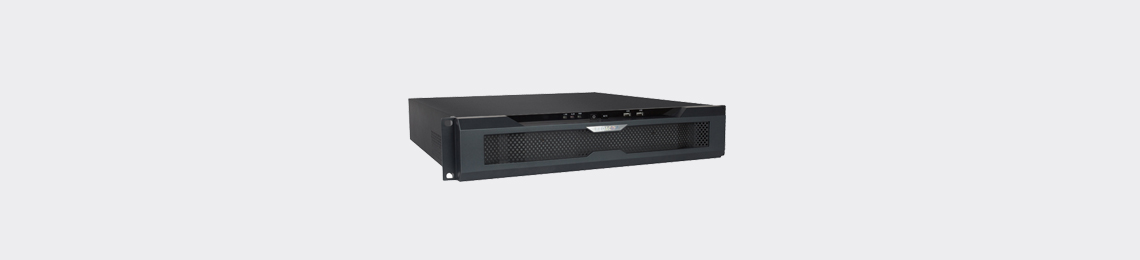

VS-G400-A Meeting Monitoring Interactive Gateway
Product Features
  • Based on embedded structure, the system is stable and reliable
  • Complete no-slot joint between standard video meeting system and network video monitoring system
  • Support 1080P resolution in maximum
  • Support simultaneous enrollment of 64 channels of front-end monitoring points
  • Support the monitoring of video browsing, voice intercom, PTZ control, etc.
  • Support the monitoring of 64 channels of meeting terminal
  • Support browsing of video and audio and the display by TV wall in the monitoring
Model
VS-G400-A
Design Structure
Embedded design
Equipment Capacity
Video format
H.264
Resolution rate
1080P, 720P, 4CIF, CIF
Audio format
G.711A
Maximum enrollment capacity
Single set can support the enrollment of 64 channels of monitoring points in maximum
Maximum terminal access capacity
Single set can support terminal monitoring of 64-channel meeting
Network protocol
H.323, HTTP, RTP/RTCP, etc.
Typical Application
Application function
Browse monitoring picture, voice intercom and PTZ control in the meeting
Browse meeting picture, voice monitoring and TV wall display in the monitoring
Physical Features
Network interface
2×RJ45,100Base-TX/1000Base-T
Physical dimensions
88mm (Height) ×443mm (Width) ×461mm (Depth)
Weight
13Kg
Working Environment
Power supply
AC 100~240V,50~60Hz
Power consumption
≤130W
Working temperature
0℃~55℃
Storage humidity
10%~90%RH
