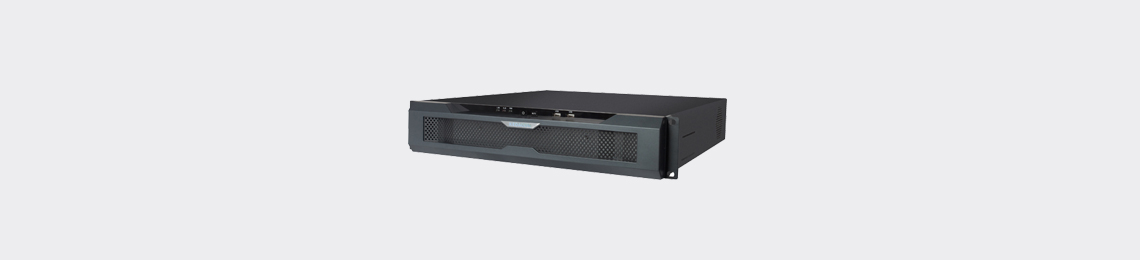

VS-G300-A Digital System Access Gateway
Product Features
  • Based on embedded structure, the system is stable and reliable
  • No-slot joint to Kedacom network video monitoring system of digital platform of the third party
  • Traverse the gateway or safely access to the platform
  • Support distributed allocation and realize mixing access of network monitoring systems of different manufacturers
  • Support stacking of master/salve equipments and enable the transcoding of multiple monitoring images of multiple monitoring systems
  • Support the monitoring of video browse, PTZ control, video playback, TV wall browse and alarm linkage
Model
VS-G300-A
Design Structure
Embedded design
Equipment Capacity
Access capacity of single equipment
Support the access of 4,096 monitoring points
Typical Application
Networking mode
Networking of single equipment, stacking of multiple equipments
Application function
Image browse, PTZ control, video playback, TV wall browse
Physical Features
Network interface
2×RJ45, 100Base-TX /1000Base-T
Physical dimensions
19 inch 2U, 88mm (Height) ×443mm (Width) ×461mm (Depth)
Weight
13Kg
Working Environment
Power supply
AC 100~240V,50~60Hz
Power consumption
≤130W
Working temperature
0℃~55℃
Storage humidity
10%~90%RH
