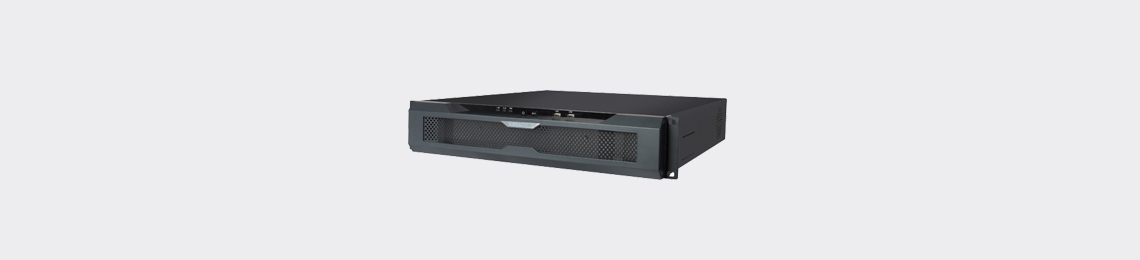

VS-G200-A Matrix Access Gateway
Product Features
  • Based on embedded structure, the system is stable and reliable
  • The no-slot joint of simulated monitoring matrix of the third party to the Kedacom network video monitoring system can be reached
  • Support distributed allocation and realize mixing access of network monitoring systems of different manufacturers
  • Matched with Kedacom encoder to realize the access of multiple monitoring images of multiple matrix system
  • Monitoring of video browse, PTZ control, platform video recording, TV wall browse, etc.
Model
VS-G200-A
Design Structure
Embedded design
Equipment Capacity
Access capacity of single equipment
Support the access of 64 matrixes and the access of 1024 monitoring points
Typical Application
Networking mode
Matched with Kedacom encoder networking, 256 encoders can be configured in maximum
Application function
Image browse, PTZ control, platform recording and TV wall browse
Physical Features
Network interface
2×RJ45, 100Base-TX /1000Base-T
Physical dimensions
19 inch 2U, 88mm (Height) ×443mm (Width) ×461mm (Depth)
Weight
13Kg
Working Environment
Power supply
AC 100～240V,50～60Hz
Power consumption
≤130W
Working temperature
0℃～55℃
Storage humidity
10%～90%RH
