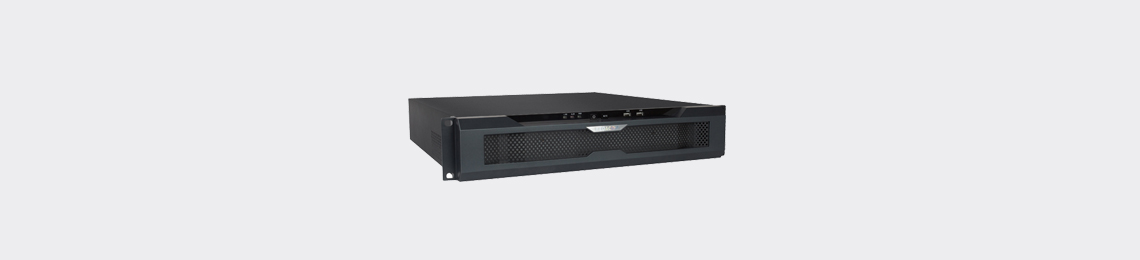

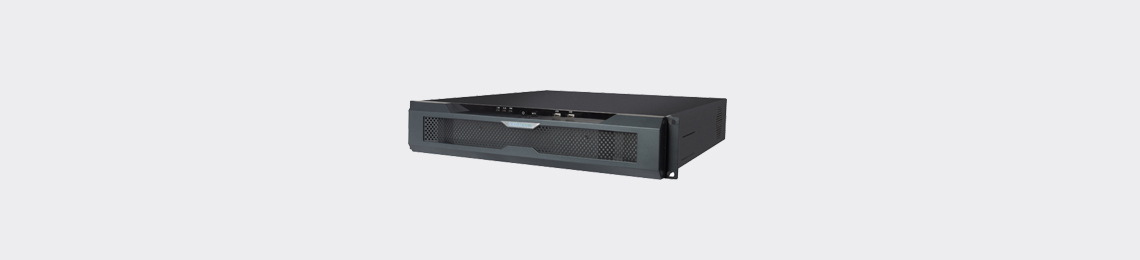

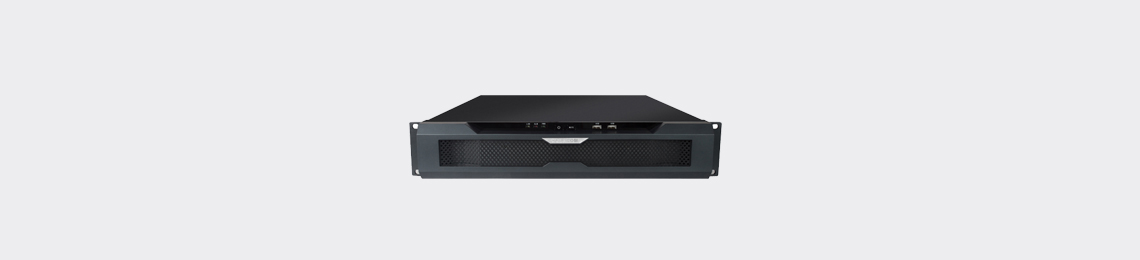

VS-G100-A DVR Access Gateway
Product Features
  • Based on embedded structure, the system is stable and reliable
  • No-slot joint of NVR/DVR/DVS/IPC to network video monitoring system
  • Support the distributed allocation and realize the access of multiple-NVR/DVR/DVS/IPC
  • Support the stacking of master/slave equipments and realize the transcoding of multiple NVR/DVR/DVS/IPC video monitoring images
  • Monitoring of video browse, PTZ control, video playback, decoding on the wall, alarm linkage, etc.
Model
VS-G100-A
Design Structure
Embedded design
Equipment Capacity
*Access capacity of single equipment
64~180 sets of NVR/DVR/DVS/ IPC
Transfer capacity of single equipment
400M
Typical Application
Application function
Image browse, PTZ control, video playback, decoding on the wall, alarm linkage
Physical Features
Network interface
2×RJ45， 100Base-TX /1000Base-T
Physical dimensions
19 inch 2U, 88mm (Height) ×443mm (Width) ×461mm (Depth)
Weight
13Kg
Working Environment
Power supply
Power supply AC 100~240V,50~60Hz
Power consumption
≤130W
Working temperature
0℃～55℃
Storage humidity
10%～90%RH
