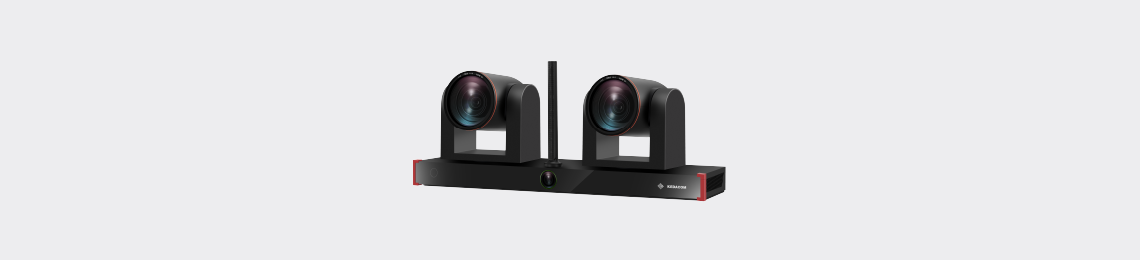

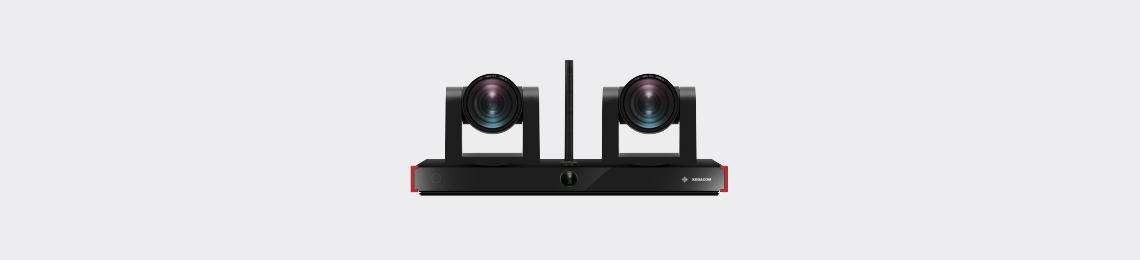

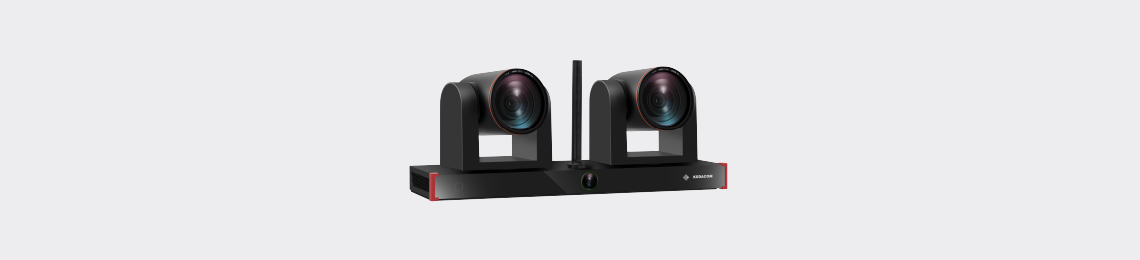

MOON50U-4K30 4K Intelligent Duo-eye HDBaseT Conference Camera

MOON50U-4K30 intelligent duo-eye conference camera can realize intelligent tracking, auto-framing, intelligent direction and other functions through voice recognition and face recognition technology, free hands and improve the conference experience.

Integrated design includes 2 PTZ cameras for tracking, 1 panoramic camera, and 1 set of array microphones.

Tracking camera uses 8.42 million ultra-high pixel image sensor, supports 4K UHD image output

12 x optical zoom, and 16 x digital zoom

Supports high-speed variable speed and other powerful PTZ features



MOON50U-4K30
Image Sensor1/1.8" CMOS
Effective PixelsApprox. 8Mp
Output Resolution4Kp30, 4Kp25, 4Kp24, 1080p60, 1080p50, 1080p30, 1080p25, 1080i60, 1080i50, 720p60, 720p50
Lens12x optical zoom, 16x digital zoom
f=5.07 ~ 60.9mm, F=1.4 ~ 9.6
Gravity SensorNot support upside-down mounting
Horizontal Field of View6.5° ~ 72°
Min. Illumination0.1Lux
Signal Noise Ratio (SNR)> 50dB
Shutter Speed1 / 50 ~1 / 10000s
FocusAuto / manual
ExposureAuto / aperture priority / shutter priority / manual
White BalanceAuto / manual / single trigger
ImageColor / black and white
Mirror: Horizontal / vertical
Mode: Standard / Bright / Soft / Manual
2D noise reduction / 3D noise reduction
PTZ FeaturesConfigurable PTZ limit / zoom magnification display / PT maximum speed / Initial position
PAN Range±160°
TILT Range-90° ~ 50°,  -90°  standby (Exclusive design, privacy protection)
PresetsMaximum number: 255
Each preset supports different parameter settings
Smart TrackingAuto tacking distance up to 10m, Horizontal tracking range up to 140°
Intelligent FeaturesAuto-Framing: The number and distribution of attendees can be accurately obtained through face detection, and intelligently control PTZ camera to shoot all attendees into the best image vision;
Intelligent Direction: Position detection through array microphone, combined with the face detection to accurately locate the speaker, and intelligently control PTZ camera to generate the panoramic/close-up/PIP view of the speakers.
Face check-in*, Attendee statistics*, Virtual nameplate* (*support with intelligent server)

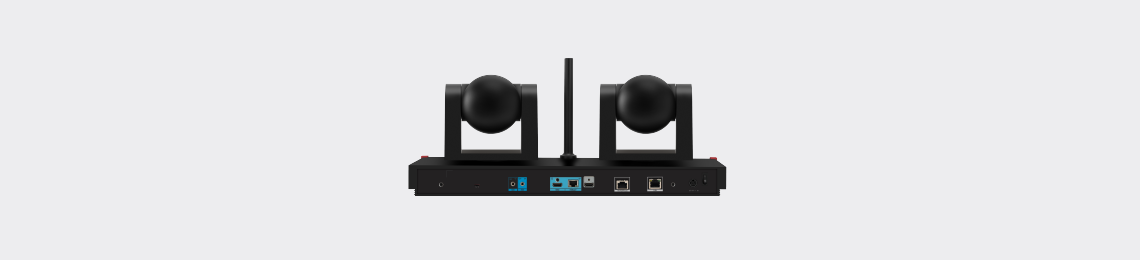

Video Interfaces1 x HDBaseT (100m long-distance lossless transmission, Video&Control 2 in 1)
1 x HDMI out
Audio Interfaces1 x 3.5mm in/out
Control Interfaces1 x RS422, Supports VISCA / PELCO-D / PELCO-P control protocols
IR / ZigBee remote control
1 x IR dip switch
Network Interfaces1 x Network port, RJ45 interface
EnvironmentalOperating temperature: 0°C ~ 45°C / 32℉ ~ 113℉
Operating humidity: 10% ~ 90%
Atmospheric pressure: 53 ~ 106 kPa
ElectricalPower: 100 ~ 240V AC, 50 ~ 60Hz
Power consumption: Max. 76W
MechanicalWeight: Approx 7.5kg / 16.54lb
Dimensions: 515.2 x 167.4 x 226.9mm / 20.28" x 6.59" x 8.93"
