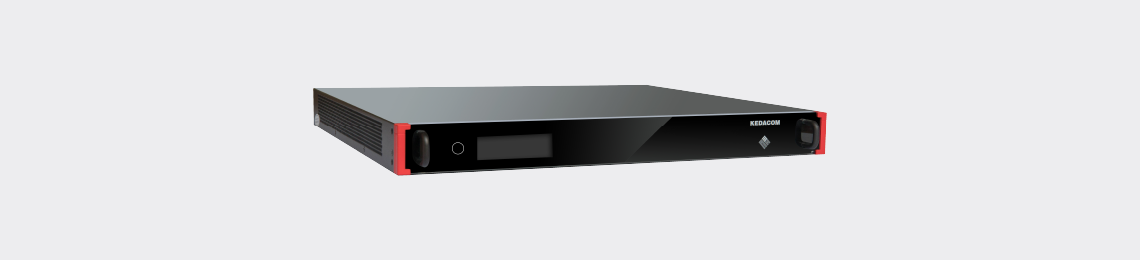

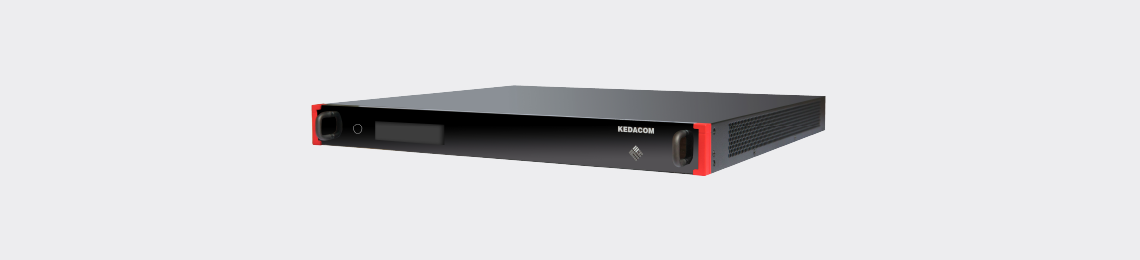

SKY X310L V2 Rack Mount Video Conferencing Endpoint

Professional audio and video processing, High-end audio-visual experience

Up to 1080P60 main video and dual stream image resolution

Supports video codec performance upgrading via soft license, save construction costs

Supports RTC/SFU/SVC media communication technology to realize high quality, low latency, light resource demanding video conferencing system.

Versatile connectivity, Video: 2 in / 2 out, Audio: 5 in / 5 out

AEC / ANS / AGC process, wideband audio protocol


Excellent network adaptability and security mechanism

Supports H.265 protocol, consumes less bandwidth, 384Kbps to achieve 1080p resolution encoding and decoding

Supports Intelligent Packet Loss Recovery, dynamic rate adjustment, automatic QoS setting, forward error correction and other network optimization mechanisms, which can fully optimize the video communication effect in the congestion network environment

Standard H.460 for NAT and firewall traversal

Multiple encryption mechanism: H.235 conference encryption, 256 bit AES encryption, TLS and SRTP protocol, User authentication and role-based authorization, etc.


Open interoperability, Easy Operation

Standard H.323 / SIP, interoperable with standard endpoints and infrastructures from third-party mainstream vendors

Provide API, implementing flexible integration with third-party platforms

USB configuration, easy to install, use and maintain

Optional wireless casting transmitter, one press to cast the PC content on display or to remote conferencing



SKY X310L V2
Sub Models1080P60-W1080P601080P30-W1080P30
System StandardsH.323, SIP, RTC
H.221, H.225, H.235, H.239, H.245, H.281, H.460
Video StandardsH.261, H.263, H.263+, MPEG-4, H.264, H.264 High Profile, H.264 SVC, H.265
Audio StandardsG.711, G.719, G.722, G.722.1 Annex C / Polycom ®Siren14TM, G.728, G.729, MP3, MPEG4-AAC (LC / LD), Opus
Network ProtocolsTCP / IP, Telnet, HTTPS, HTTP, FTP, DHCP, RTP / RTCP, NTP, 802.11a/b/g/n/acTCP / IP, Telnet, HTTPS, HTTP, FTP, DHCP, RTP / RTCP, NTPTCP / IP, Telnet, HTTPS, HTTP, FTP, DHCP, RTP / RTCP, NTP, 802.11a/b/g/n/acTCP / IP, Telnet, HTTPS, HTTP, FTP, DHCP, RTP / RTCP, NTP
IP ProtocolsIPv4 and IPv6 dual stack
Conference Bitrate64Kbps ~ 8Mbps
Video ResolutionVideo:
1080i/p (1920 x 1080), 720p (1280 x 720), W4CIF (1024 x 576), 4CIF (704 x 576), WCIF (512 x 288), CIF (352 x 288)
Content:
1080i/p (1920 x 1080), 720p (1280 x 720), UXGA  (1600 x 1200), WSXGA+ (1680 x 1050), WSXGA (1440 x 900), SXGA (1280 x 1024), WXGA (1366 x 768 / 1280 x 800), XGA (1024 x 768)
Encode Capacity1080p60 + 1080p601080p30 + 1080p30
Decode Capacity1080p60 + 1080p60
Conference FunctionsPeer-to-peer / multi-point conferences
Join-in conference / administrator / speaker / chime-in request
Calling by E.164 ID, alias and IP addresses
Support Virtual Conference Room and Cloud conference features, such as cloud conference and search, cloud contact book, recording on cloud, unified upgrading from cloud, etc.
Initiating conference by organization chart
Video FeaturesSingle screen with dual / triple-display or Dual screen with dual-display
Adjustable video parameter
Video input and output local matrix
VGA  loopback when power off
Supports camera preset snapshot and preview
Audio FeaturesDual stereo sound
Sampling frequency: 48 kHz
Acoustic Echo Cancellation (AEC)
Acoustic Noise Suppression (ANS)
Automatic Gain Control (AGC)
Automatic lip synchronization
Mute and dumb
Dual-streamH.239 / BFCP
Adjustable bandwidth ratio
Wireless content sharing by SkyShare software or NexPresence transmitter
Network FeaturesEmbedded proxy for NAT / firewall transversal
Intelligent Packet Loss Recovery (IPLR)
Forward Error Correction (FEC)
DiffServ, IP Precedence (Quality of service [QOS])
IP conflict detection
Dynamic rate adjustment
OSD Caption / Logo / BannerConfigurable OSD caption / logo / banner background color, font sizes and fonts
Local images and custom text can be set as OSD logo / banner
OSD caption can be sent as short messages to endpoints or multipoint control units
Support OSD banner scheme
Configurable OSD caption / banner display layout, logo display position
Security FeaturesEmbedded OS
H.235 conference encryption
256-bit AES encryption
TLS and SRTP protocol
Conference password authentication
User authentication and role-based authorization
Advanced setting authentication
Gatekeeper password-protected
HTTPS
IP address blacklist
Management MethodsRemote control
Web interface
NMS manageable
OLED display screen on the device
Maintenance FunctionsEvent logs can be managed
Factory settings restoration
Loop / image / audio tests
Real-time video / audio bitrate display
Address book and configuration file importing / exporting
Video InterfacesInput:
1 x DVI-I/YPbPr/VGA/HDMI (Camera)
1 x HDMI (Dual stream)
Output:
1 x HDMI (1st Display)
1 x HDMI (2nd Display )
Audio InterfacesInput:
1 x XLR, 1 x Digital mic, 1 x 3.5mm, 1 x RCA L/R
1 x DVI-I, 1 x HDMI support concomitant audio
Output:
1 x 3.5mm, 1 x RCA L/R, 1 x TRS L/R
2 x HDMI support concomitant audio
Control Interfaces1 x Touch interface
2 x RS232
1 x RS422
IR / ZigBee remote control
Conference PadTouch X conference touch pad supported
Support control operations via pad including conference initiating and control,  participants management,  volume adjustment, content sharing, camera control, preset operation, exit/end conference, etc
Network Interfaces2 x 10 / 100 / 1000M Ethernet, RJ45 interface;
1 x Built-in WIFI module
2 x 10 / 100 / 1000M Ethernet, RJ45 interface2 x 10 / 100 / 1000M Ethernet, RJ45 interface;
1 x Built-in WIFI module
2 x 10 / 100 / 1000M Ethernet, RJ45 interface
Other Interfaces1 x USB 2.0 (USB configuration, USB recording)
EnvironmentalOperating temperature: 0°C ~ 45°C / 32 ~ 113
Operating humidity: 10% ~ 90%
Atmospheric pressure: 53 ~ 106 kPa
ElectricalPower: 100 ~ 240V AC, 50 ~ 60Hz
Power consumption: Max. 180W
MechanicalNet weight: 5.0kg / 11.02lb
Package weight: 7.9kg / 17.42lb
Product dimensions: 44 x 443 x 426mm / 1.73" x 17.44" x 16.77"  (H x W x D)
Package dimensions: 220 x 545 x 605mm / 8.66" x 21.46" x 23.82"  (H x W x D)
