Professional audio and video processing, High-end audio-visual experience
Up to 4K UHD main video and dual stream image resolution
Supports video codec performance upgrading via soft license, save construction costs
Supports RTC/SFU/SVC media communication technology to realize high quality, low latency, light resource demanding video conferencing system.
Versatile connectivity, Video: 6 in / 6 out, Audio: 5 in / 5 out
AEC / ANS / AGC process, wideband audio protocol
Excellent network adaptability and security mechanism
Supports H.265 protocol, consumes less bandwidth, 384Kbps to achieve 1080p resolution encoding and decoding
Supports Intelligent Packet Loss Recovery, dynamic rate adjustment, automatic QoS setting, forward error correction and other network optimization mechanisms, which can fully optimize the video communication effect in the congestion network environment
Standard H.460 for NAT and firewall traversal
Multiple encryption mechanism: H.235 conference encryption, 256 bit AES encryption, TLS and SRTP protocol, User authentication and role-based authorization, etc.
Open interoperability, Easy Operation
Standard H.323 / SIP, interoperable with standard endpoints and infrastructures from third-party mainstream vendors
Provide API, implementing flexible integration with third-party platforms
USB configuration, easy to install, use and maintain
Optional wireless casting transmitter, one press to cast the PC content on display or to remote conferencing

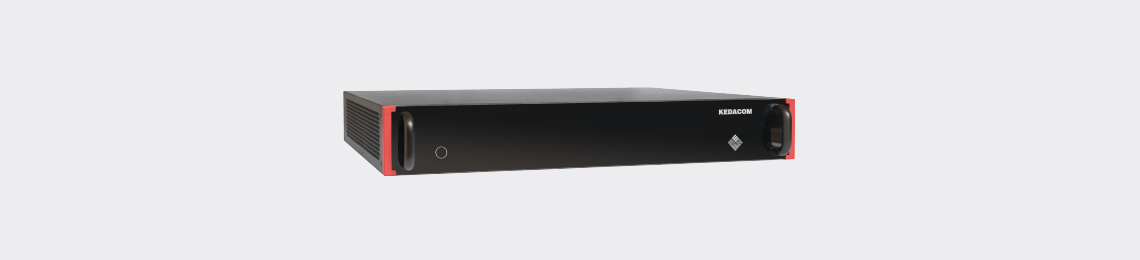

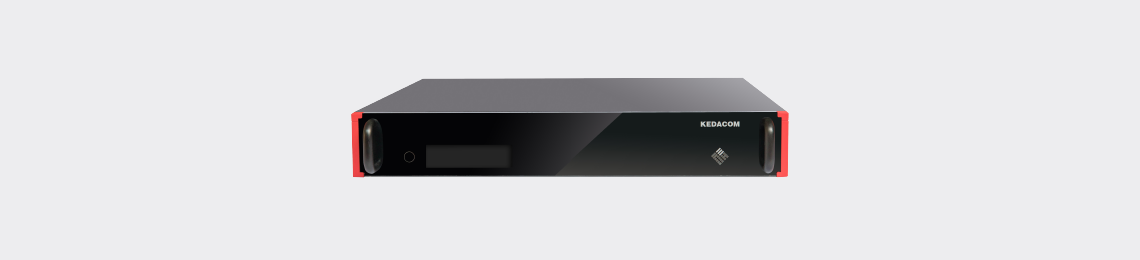

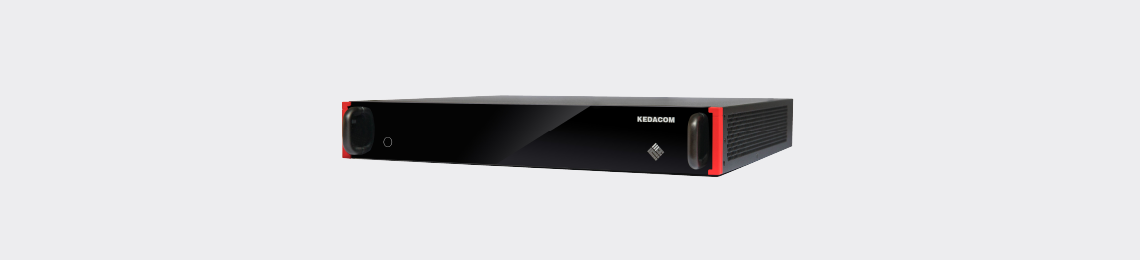

SKY X510 V2 | ||||||
Sub Models | 4K-W | 4K | 1080P60-W | 1080P60 | 1080P30-W | 1080P30 |
System Standards | H.323, SIP, RTC H.221, H.225, H.235, H.239, H.245, H.281, H.460 | |||||
Video Standards | H.261, H.263, H.263+, MPEG-4, H.264, H.264 High Profile, H.264 SVC, H.265 | |||||
Audio Standards | G.711, G.719, G.722, G.722.1 Annex C / Polycom ®Siren14TM, G.728, G.729, MP3, MPEG4-AAC (LC / LD), Opus | |||||
Network Protocols | TCP / IP, Telnet, HTTPS, HTTP, FTP, DHCP, RTP / RTCP, NTP, 802.11a/b/g/n/ac | TCP / IP, Telnet, HTTPS, HTTP, FTP, DHCP, RTP / RTCP, NTP | TCP / IP, Telnet, HTTPS, HTTP, FTP, DHCP, RTP / RTCP, NTP, 802.11a/b/g/n/ac | TCP / IP, Telnet, HTTPS, HTTP, FTP, DHCP, RTP / RTCP, NTP | TCP / IP, Telnet, HTTPS, HTTP, FTP, DHCP, RTP / RTCP, NTP, 802.11a/b/g/n/ac | TCP / IP, Telnet, HTTPS, HTTP, FTP, DHCP, RTP / RTCP, NTP |
IP Protocols | IPv4 and IPv6 dual stack | |||||
Conference Bitrate | 64Kbps ~ 8Mbps | |||||
Video Resolution | Video: 4K (3840 x 2160, -4K model), 1080i/p (1920 x 1080), 720p (1280 x 720), W4CIF (1024 x 576), 4CIF (704 x 576), WCIF (512 x 288), CIF (352 x 288) Content: 4K (3840 x 2160, -4K model), 1080i/p (1920 x 1080), 720p (1280 x 720), UXGA (1600 x 1200), WSXGA+ (1680 x 1050), WSXGA (1440 x 900), SXGA (1280 x 1024), WXGA (1366 x 768 / 1280 x 800), XGA (1024 x 768) | |||||
Encode Capacity | 4K30 + 4K30 | 1080p60 + 1080p60 | 1080p30 + 1080p30 | |||
Decode Capacity | 4K30 + 4K30 | 1080p60 + 1080p60 | ||||
Conference Functions | Peer-to-peer / multi-point conferences Join-in conference / administrator / speaker / chime-in request Calling by E.164 ID, alias and IP addresses Support Virtual Conference Room and Cloud conference features, such as cloud conference and search, cloud contact book, recording on cloud, unified upgrading from cloud, etc. Initiating conference by organization chart | |||||
Multi-view Continuous Presence(CP) | Support 3 channel multi-view function, local 3x video input images can be combined into 1 multi-view CP for local video display or send to the remote, multi-view CP layout can be set. | |||||
Video Features | Single screen with dual / triple-display or Dual screen with dual-display Adjustable video parameter Video input and output local matrix VGA loopback when power off Supports camera preset snapshot and preview | |||||
Audio Features | Dual stereo sound Sampling frequency: 48 kHz Acoustic Echo Cancellation (AEC) Acoustic Noise Suppression (ANS) Automatic Gain Control (AGC) Automatic lip synchronization Mute and dumb | |||||
Dual-stream | H.239 / BFCP Adjustable bandwidth ratio Wireless content sharing by SkyShare software or NexPresence transmitter | |||||
Network Features | Embedded proxy for NAT / firewall transversal Intelligent Packet Loss Recovery (IPLR) Forward Error Correction (FEC) DiffServ, IP Precedence (Quality of service [QOS]) IP conflict detection Dynamic rate adjustment | |||||
OSD Caption / Logo / Banner | Configurable OSD caption / logo / banner background color, font sizes and fonts Local images and custom text can be set as OSD logo / banner OSD caption can be sent as short messages to endpoints or multipoint control units Support OSD banner scheme Configurable OSD caption / banner display layout, logo display position | |||||
Security Features | Embedded OS, Linux 3.18.24 H.235 conference encryption 256-bit AES encryptionTLS and SRTP protocol Conference password authentication User authentication and role-based authorization Advanced setting authentication Gatekeeper password-protected HTTPS IP address blacklist | |||||
Management Methods | Remote control Web interface NMS manageable OLED display screen on the device | |||||
Maintenance Functions | Event logs can be managed Factory settings restoration Loop / image / audio tests Real-time video / audio bitrate display Address book and configuration file importing / exporting | |||||
Video Interfaces | Input: 1 x HDBaseT (Camera) 1 x HDBaseT, 1 x DVI-I/YPbPr/VGA/HDMI (Camera, choose 1 from 2 interfaces) 1 x SDI (Camera) 1 x HDMI, 1 x VGA (Dual stream, choose 1 from 2 interfaces) Output: 2 x HDMI, 1 x DVI-I/YPbPr/VGA/HDMI, 1 x SDI (Same output,1st Display) 1 x HDMI, 1 x VGA (Same output, 2nd Display ) | |||||
Audio Interfaces | Input: 1 x XLR, 2 x Digital mic, 1 x 3.5mm, 1 x RCA L/R 1 x DVI-I, 1 x HDMI, 1 x SDI support concomitant audio Output: 1 x 3.5mm, 1 x RCA L/R, 1 x TRS L/R 1 x DVI-I, 3 x HDMI, 1 x SDI support concomitant audio | |||||
Control Interfaces | 1 x Touch interface 2 x RS232 1 x RS422 IR / ZigBee remote control | |||||
Conference Pad | Touch X conference touch pad supported Support control operations via pad including conference initiating and control, participants management, volume adjustment, content sharing, camera control, preset operation, exit/end conference, etc | |||||
Network Interfaces | 2 x 10 / 100 / 1000M Ethernet, RJ45 interface; 1 x Built-in WIFI module | 2 x 10 / 100 / 1000M Ethernet, RJ45 interface | 2 x 10 / 100 / 1000M Ethernet, RJ45 interface; 1 x Built-in WIFI module | 2 x 10 / 100 / 1000M Ethernet, RJ45 interface | 2 x 10 / 100 / 1000M Ethernet, RJ45 interface; 1 x Built-in WIFI module | 2 x 10 / 100 / 1000M Ethernet, RJ45 interface |
Other Interfaces | 1 x USB 2.0 (USB configuration, USB recording) 1 x 4E1 module slot | |||||
Environmental | Operating temperature: 0°C ~ 45°C / 32℉ ~ 113℉ Operating humidity: 10% ~ 90% Atmospheric pressure: 53 ~ 106 kPa | |||||
Electrical | Power: 100 ~ 240V AC, 50 ~ 60Hz Power consumption: Max. 180W | |||||
Mechanical | Net weight: 6.0kg / 13.23lb Package weight: 8.6kg / 18.96lb Product dimensions: 66 x 443 x 430mm / 2.60" x 17.44" x 16.93" (H x W x D) Package dimensions: 200 x 595 x 540mm / 7.87" x 23.43" x 21.26" (H x W x D) |
