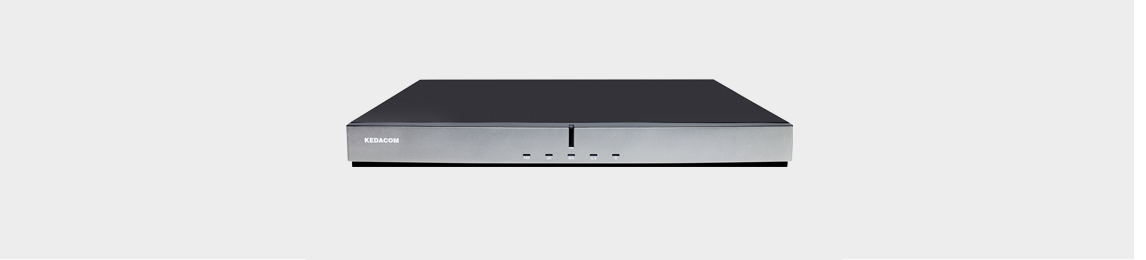

H700 Rack Mount Video Conferencing Terminal
Professional audio and video processing, High-end audio-visual experience
  • Dual 1080p streaming

  • Universal interface and cable, easy to install and maintain

  • Connect with digital mic and canon-mic directly

  • Video: 3 in / 3 out, Audio: 5 in / 5 out

  • AEC / ANS / AGC process, wideband audio protocol

Excellent network adaptability and security mechanism
  • Support intelligent anti-packet loss, automatic QoS setting, forward error correction and other network optimization mechanisms, which can fully optimize the video communication effect in the congestion network environment

  • Standard H.460 for NAT and firewall traversal

  • Embedded OS, high security, away from virus and hackers’attack.

  • Multiple encryption mechanism: H.235 conference encryption, AES encryption, user authentication and role-based authorization, conference password authentication, advanced setting authentication

Abundant functions and features
  • Automatic dual stream source detection

  • Real-time recording / monitoring / preview of local and remote video and audio through web



 H700
Sub Models-A-C
System StandardsH.323, SIP
H.225, H.235, H239, H.245, H.281, H.460
Video StandardsH.261, H.263, H.263+, H.264, H.264 High-Profile
Audio StandardsG.711, G.719, G.722, G.722.1 Annex C / Polycom Siren14TM, G.728, G.729, MP3
Network ProtocolsTCP / IP, Telnet, HTTP, FTP, SNMP, DHCP, RTP / RTCP, NTP, PPPoE
Conference Bitrate64 Kbps to 8 Mbps
Video ResolutionVideo:
1080p (1920 x 1080), 720p (1280 x 720), 4CIF (704 x 576), CIF (352 x 288)
Content:
1080p (1920 x 1080), 720p (1280 x 720), UXGA (1600 x 1200), WSXGA+ (1680 x 1050), WSXGA (1440 x 900), SXGA (1280 x 1024), WXGA (1280 x 800), XGA (1024 x 768), SVGA (800 x 600), VGA (640 x 480)
Video:
1080p (1920 x 1080, decode only), 720p (1280 x 720), 4CIF (704 x 576), CIF (352 x 288)
Content:
1080p (1920 x 1080, decode only), 720p (1280 x 720), UXGA (1600 x 1200), WSXGA+ (1680 x 1050), WSXGA (1440 x 900), SXGA (1280 x 1024), WXGA (1280 x 800), XGA (1024 x 768), SVGA (800 x 600), VGA (640 x 480)
Encode Capacity1080p @ 60 fps + 1080p @ 60 fps / UXGA  @ 60 fps720p @ 60 fps + 720p @ 60 fps / UXGA  @ 30 fps
Decode Capacity1080p @ 60 fps + 1080p @ 60 fps / UXGA  @ 60 fps
Video FeaturesSingle screen dual / triple display
Dual screen dual display
Picture in Picture, Picture out Picture
Audio FeaturesSampling frequency: 8 kHz to 48 kHz
Acoustic Echo Cancellation (AEC)
Acoustic Noise Suppression (ANS)
Automatic Gain Control (AGC)
Automatic lip synchronization
Mute and dumb
Dual-streamH.239 / BFCP
Adjustable bandwidth ratio
Wireless content sharing by SkyShare software
Network FeaturesEmbedded proxy for NAT / firewall transversal
Intelligent Packet Loss Recovery (IPLR)
Forward Error Correction (FEC)
DiffServ, IP Precedence (Quality of service [QOS])
IP conflict detection
Automatic PPPoE redial
IP backup
OSD Caption / Logo / BannerConfigurable OSD caption / logo / banner
Local images and custom text can be set as OSD logo / banner
OSD caption can be sent as short messages to terminals or multipoint control units
OSD caption can be scrolled
Configurable OSD banner background color, font sizes and fonts
Security Features

Embedded OS, Linux 2.6.37

H.235 conference encryption

AES encryption
Conference password authentication
User authentication and role-based authorization
Advanced setting authentication
Gateway password-protected
ManagementRemote control
Configuration can be performed by web GUI
Event logs can be managed
Loop / image / audio tests
Operational state detection
Real-time video / audio bitrate display
Address book importing / exporting
Conference FunctionsPoint-to-point / multiple conferences
Join-in meeting / chairman / speaker / chime-in request
Calling by E.164 ID, alias and IP addresses
Video Interfaces1 x DVI-I in / out, 1 x VGA in / out, 1 x CVBS in / out
Main stream:
In: DVI or CVBS
Out: DVI and C simultaneous out
Dual stream:
In: VGA
Out: VGA
Audio Interfaces1 x RJ11 digital audio in, 1 x XLR 48V phantom power in
2 x RCA audio in / out, 2 x TRS (6.35mm) out
DVI-I adapter to HDMI support audio
Dual channel stereo
Control Interfaces1 x RS232, 1 x RS422
IR remote control
Network Interfaces2 x Gigabit network port, RJ45 interface
Other Interfaces2 x USB (Hardware ready)
EnvironmentalOperating temperature: 0°C ~ 45°C / 32℉ ~ 113℉
Operating humidity: 10% ~ 90%
Atmospheric pressure: 70 ~ 106 kPa
ElectricalPower: 100 ~ 240V AC, 50 ~ 60Hz
Power consumption: Max. 80W
MechanicalWeight: < 8kg / 17.64lb
Dimensions: 1U, 44 x 443 x 360mm / 1.73" x 17.44" x 14.17"
