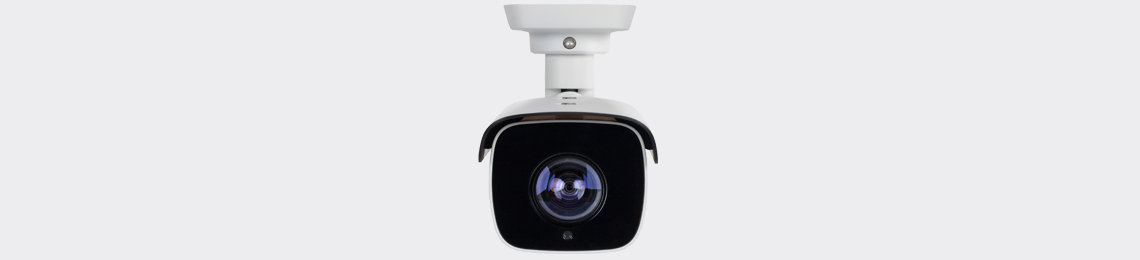

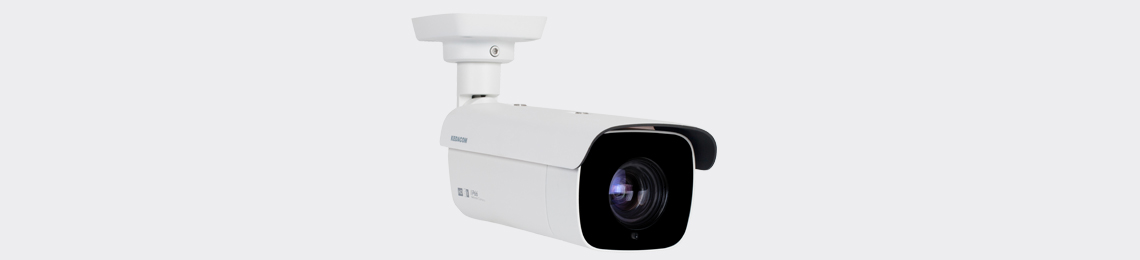

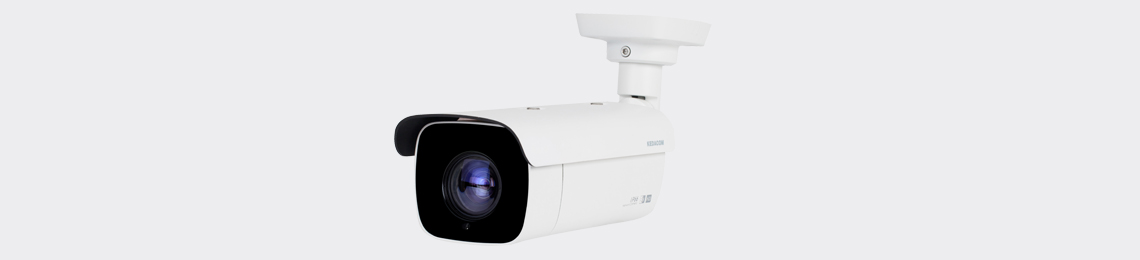

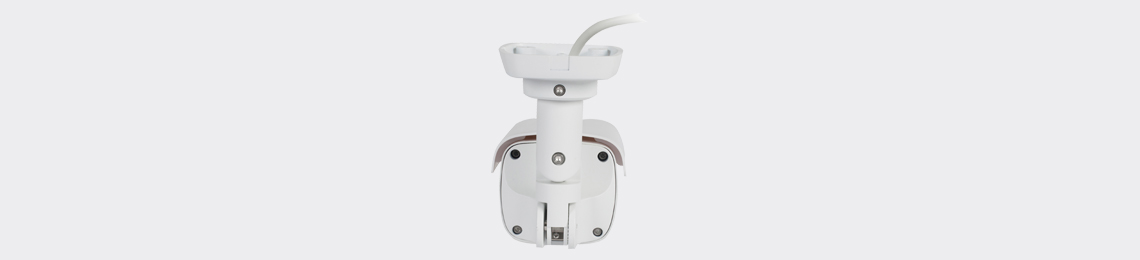

IPC2852-FNB-SIR50-Z2812-TU 8.0MP Starlight & Ultra WDR HD Network Varifocal IR Bullet Camera
Excellent Image Quality

  • 8.0 Megapixel 1/2.8’’ progressive scan CMOS sensor

  • High definition and smooth picture,  3840×2160@20fps

  • H.265 video codec, saves up to 50% bandwidth and storage

  • Ultra low illumination, 0.005lux with color picture

  • 120dB Ultra WDR

  • 3D noise reduction / HLC


Intelligent Functions

  • Motion detection / Tampering / Guard line / Defocus / Scene change / Enter guard area / Exit guard area  / Object left / Object removal / Gathering / Audio surge

  • Support Deep Learning Algorithm


Integrated High Efficiency IR

  • Industrial IR LED with long operational lifespan

  • Up to 70m IR distance

  • Smart IR function


A Variety of Installation Modes

  • Supports 90°, 180°, 270° image rotation

  • Motorized varifocal lens


Abundant Functions and Features

  • Micro SD card slot, supports Automatic Network Replenishment (ANR)

  • Bi-directional audio / alarm in and out / RS485

  • Up to 3 Multi-stream

  • Anti-fog glass

  • -40°C ~ 70°C operation temperature

  • PoE

  • IP67

  • IK10 (optional)


IPC2852-FNB-SIR50-Z2812-TU
Camera
Image Sensor 1/2.8’’   progressive scan CMOS
Pixels8.0   Megapixel
Min. Illumination Color:   0.005lux@ (F1.6,  AGC ON)
B/W: 0.0005lux@ (F1.6,  AGC ON); 0lux  with IR
Shutter Speed1   ~ 1/30,000s
Day / NightAuto   (ICR) / Color / B/W
Wide Dynamic RangeUltra   WDR, >=120db
S/N Ratio>=58db
White BalanceAuto   / Manual
Gain ControlAuto   / Manual
Backlight CompensationOff   / WDR / BLC / HLC
Lens
Mount TypeΦ14
Auto IrisDC   drive
Focal Length2.8-12mm   @F1.6~F3.3 motorized varifocal   lens
Focus ControlManual   / Semi-Automatic / Auto
Angle of ViewZ2812:   Horizontal : 30.3°(T)~107°(W)     Vertical : 17°(T)~56.1°(W)
    Z6022: Horizontal : 17.6°(T)~42.9°(W)     Vertical : 9.7°(T)~23.4°(W)
Infrared
IR Distance50   ~ 70m
IR IntensitySmart   IR
Video
CompressionSmart   265 / H.265(Main Profile) / H.264(BaseLine Profile/Main Profile/High Profile)   / MJPEG
Image ResolutionMain   stream: 3840x2160
Secondary stream: 720P
Third stream: D1
Frame RateMain   stream: 3840x2160@20fps
Secondary stream: 720P@25fps
Third stream: D1@25fps
i-Frame(1-25)   fps adjustable
Bitrate32kbps   ~ 16Mbps
Bitrate ControlVBR   / CBR
Multi-streamSupported
CaptionDate   and time / Alarm / Customized
Privacy MaskingUp   to 4 zones
Motion DetectionUp   to 4 zones
ROISupported
Digital Noise Reduction3D   noise reduction
Digital DefogSupported
Image FlipFlip   / Mirror / Rotation 90°, 180°, 270°
Audio
CompressionG.711a   / G.711u / ADPCM / G.722 / G.722.1c / G.726
Bitrate32kbps   ~ 64kbps
Audio FunctionBi-directional   audio / AEC / Mixed audio recording / Dumb / Mute
Network
Network ProtocolsTCP/IP,   UDP, HTTP,HTTPS, DHCP, DNS/DDNS, RTP/RTCP, RTSP, PPPoE, FTP,IGMP,UPnP,   802.1x, NAT, QoS, SMTP, IPv4 , IPv6 (optional)
Max. User AccessMax.   20 Users (includes 2 internal)
Application ProgrammingONVIF   (Profile S, Profile G), GB/T 28181-2016, API, CGI
Automatic Network Replenishment (ANR)Supported
Stream AuthenticationSupported
Alarm
Alarm TriggersAlarm input / Network disconnect   / Disk full / Disk error
Basic IntelligentTampering /   Defocus / Scene change / Object left / Object removal / Audio surge
Deep   Learning IntelligentHuman   & Vehicle Detection:
    Motion detection / Guard line  /   Enter guard area / Exit guard area / People Gathering
Alarm EventsAlarm   report / Recording / Text overlay / Snapshot / External output / Email notice   / Acoustic alarm
Interfaces
Ethernet10/100M,   RJ45 interface
Audio In / Out1   x Line in / 1 x Line out
Control1   x RS485
Alarm In / Out2   x Input / 1 x Output
Memory SlotMicro   SD card slot, supports up to 256GB
Environmental
Operating Temperature-40°C   ~ 70°C / -40°F ~ 158°F
Operating Humidity 10%   ~ 95%,No condensation
Protection LevelIP67,   IK10
Electrical
Power 12V   DC ± 10% / PoE (IEEE802.3af)
Power ConsumptionMax.   11W
Mechanical
Weight 1.2kg   / 2.65lb (Gross Weight)
Dimensions271.3   x 80 x 87.8mm / 10.68’’ x 3.15’’ x 3.46’’
Mounting BracketBracket   included
