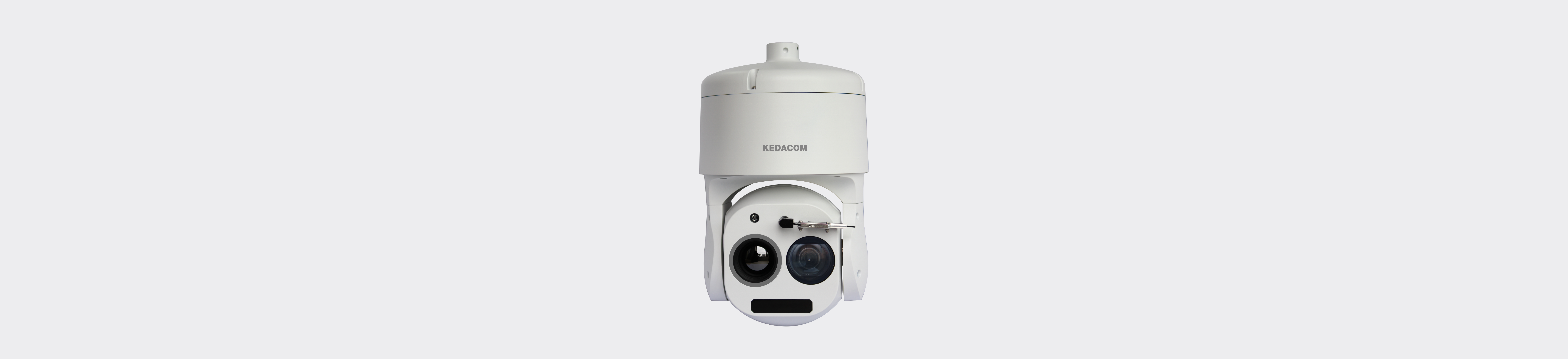

IPC447-F245-NR050-TU Binocular Thermal Imaging Spherical Network Camera
Excellent Image Quality

  • Visible light 4 megapixel line-by-line scan image sensor, 2688x1520 HD resolution

  • H.265 Efficient video encoding, effectively reduce the code stream, compatible with H.264

  • And 45 x optical zoom, and 16 x digital zoom

  • Thermal imaging was performed with 640X512 resolution, 50mm lens

  • Support infrared light supplement, infrared irradiation distance of 200 meters

  • Support strong light suppression, fog transmission, anti-shaking and other image enhancement functions

  • Support 3D noise reduction, clear and delicate image

  • Three-code stream output, to meet the application requirements of different bandwidth and storage

  • Built-in high-speed cloud head, can be horizontal 360° continuous rotation, vertical-25° ~90° can automatically flip

  • Horizontal key control speed: 0.05° ~200°/s, the speed can be set; horizontal preset point speed: 200°/s

  • Vertical keying speed: 0.05° ~120°/s, the speed can be set; vertical preset point speed: 120°/s

  • Support depth of field ratio doubling, automatic watch and other functions

  • Support to click in the center, box selection zoom of the quick location function

  • 6000V lightning protection, surge prevention and wave prevention, support IP66 protection level

Heat-Imaging


Sensor   type

Vanadium   oxide uncooled coke plane detector

Maximum   image size

640×512

Camera   lens

50mm

Pixel   Temperature Range

17μm   -20 ~ +180

NETD

<40mk   (@25°C, F#=1.0)

Visible   light


The   lens focal length

45 x   optical zoom, f = 4 to 180 mm, 16 x digital zoom

Imaging   sensor

1/1.8"   / 1 " 4 megapixel scan line by line

Minimal   illumination

Color:   0.0005 Lux @ (F1.5, AGC ON)

Black   and white: 0.0001 Lux @ (F1.5, AGC ON)

Video   coding

H.265/H.264/MJPEG

Maximum   resolution

2688×1520

Bit   stream

Maximum   three-yard stream support

Video   frame rate

1~30   Frames

Video   code rate

32Kbps～32Mbps

Audio   coding

PCMA,   PCMU, G.722.1.C, ADPCM, G722, G.726, OPUS

IR Cut

Support

Distance   to fill light

IR   at 200m

3DNR

Support

Close-up   cloud platform


Horizontal   extent

360°   for continuous rotation

Horizontal velocity

Keys   for 200°/s and manually for 0.05°~200°/s

Vertical   range

-25°-90°

Vertical   velocity

Keyyed   120°/s and manually 0.05°~120°/s

Scale   doubled

Support

Number   of prepositions

512

Cruise   scan

6   bars, each bar can add 18 preset points

Power   memory

Support   power off load preset bit, power off load before power off position

Auto   Tracking

Support

DeFog-Fog

Support

Network   function


Networking   protocol

TCP/IP,   UDP, HTTP, DHCP, RTP/RTCP, RTSP, FTP, DDNS, PPPoE, 802.1X, QoS, UPnP, SNMP,   SMTP

Programming   interface protoco

GB28181,   onvif, GB35114, and VIID

Number   of user visits

20

System   function


Fire   point detection

Support   the fire point detection algorithm

Visible   light intelligence

Mobile   detection, blocking alarm, warning line, area invasion, entry area, leaving   area, personnel gathering, abnormal sound, left items, items taking and   taking; support personnel and vehicle detection

Peripheral   interface


Network   interface

1×RJ45，10Base-TX/100Base-TX/1×1000Base-T

Gorge   line

1×RS485

Alarm   interface

1×Alarm   In, 1×Alarm Out

Audio   interface

1×Line   In，1×Line Out

Memory   interface

1 TF(built-in)

Power   interface

AC24V

Java   runtime environment Java

Operating   ambient temperature

-40℃～70℃

Humidity   of working environment

10％～90％

Levels   of protection

IP66,6000V   lightning protection, surge prevention and surge prevention, in line with GB   / T17626.5

Weight

7.8KG

Size

412.8×φ250mm

Source

AC24V,   The power consumption is 48W
