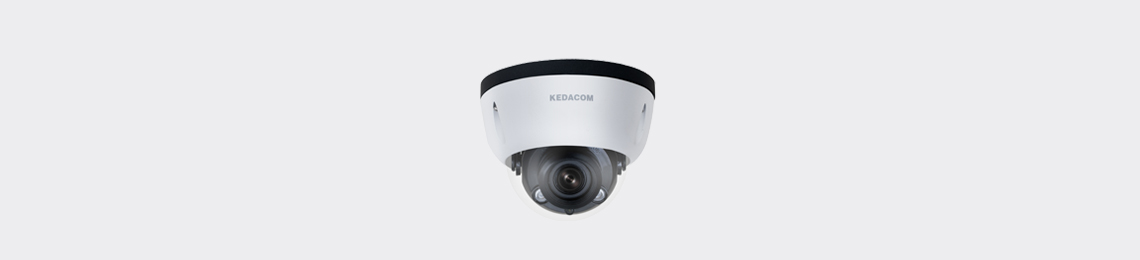

IPC2233-FN-SIR40 2.0MP Starlight & Ultra WDR HD Network Vandal-Proof Varifocal IR Semi Dome
Excellent Image Quality
  • 2.0 Megapixel 1/2.8'' progressive scan CMOS sensor
  • High definition and smooth picture, 1080p@30fps
  • H.265 video codec, saves up to 50% bandwidth and storage
  • Ultra low illumination, 0.002lux with color picture
  • 120dB Ultra WDR
  • 2DNR / 3DNR / Auto Iris / HLC
Intelligent Functions
  • Motion detection / Tampering / Guard line / Defocus / Scene change / Enter guard area / Exit guard area / Object left / Object removal / Gathering / Audio surge
Vandal-Proof
  • Above IK10 @ 50J collision energy
Integrated High Efficiency IR
  • Industrial IR LED with long operational lifespan
  • 20 ~ 40m IR distance
  • Smart IR function
A Variety of Installation Modes
  • Supports 90°, 180°, 270° image rotation
  • Motorized varifocal lens
Abundant Functions and Features
  • Micro SD card slot, supports Automatic Network Replenishment (ANR)
  • Bi-directional audio / alarm in and out / video out / RS485
  • 2 channel audio input simultaneously
  • Up to 3 Multi-stream
  • PoE
  • IP67
 IPC2233-FN-SIR40-TU
Camera
Image Sensor 1/2.8’’ progressive scan CMOS
Pixels2.0 Megapixel
Min. Illumination Color: 0.005lux@ (F1.2,  AGC ON)
Color: 0.0035lux@ (F1.4,  AGC ON)
Color: 0.002lux@ (F1.6,  AGC ON)
B/W: 0.0005lux@ (F1.2,  AGC ON)
B/W: 0.00035lux@ (F1.4,  AGC ON)
B/W: 0.0002lux@ (F1.6,  AGC ON); 0lux  with IR
Shutter Speed1 ~ 1/30,000s
Day / NightAuto (ICR) / Color / B/W
Wide Dynamic RangeUltra WDR, >=120dB
S/N Ratio>50dB
White BalanceAuto / Manual
Gain ControlAuto / Manual
Backlight CompensationOff / BLC / WDR / HLC
Lens
Mount TypeΦ14
Auto IrisDC drive
Focal Length-Z2712: 2.7~12mm motorized varifocal lens
Focus ControlManual / Semi-Automatic / Auto
Angle of View-Z2712: 106° ~ 33°
Adjustment RangePan: -120° ~ +120° / Tilt: 0° ~ 65° / Rotation: -90° ~ +90°
Infrared
IR Distance40m
IR IntensitySmart IR
Video
CompressionH265 + / H.265 / H.264 / MJPEG
Image ResolutionMain stream: 1080p
Secondary stream: D1
Triple stream: 1280 x 720@30fps
Frame RateMain stream: 1080p@30fps
Secondary stream: D1@30fps
Bitrate32kbps ~ 16Mbps
Bitrate ControlVBR / CBR
Multi-streamSupported
CaptionDate and time / Alarm / Customized / Min. 50 characters
Privacy MaskingUp to 4 zones
Motion DetectionUp to 4 zones
Video FreezeSupported
ROISupported
Digital Noise Reduction2DNR, 3DNR
Digital DefogSupported
Image FlipFlip / Mirror / Rotation at 90°,180°,270°
Corider ModeSupported
EISSupported
Distortion ConnectionSupported
Audio
CompressionG.711a / G.711u / ADPCM / G.722 / G.722.1c / G.726
Bitrate8kbps ~ 64kbps
Audio FunctionBi-directional audio / AEC / Mixed audio recording / Dumb / Mute
Network
Network ProtocolsTCP/IP, UDP, HTTP, HTTPS, DHCP, DNS/DDNS, RTP/RTCP, RTSP, PPPoE, FTP, VSIP, UPnP, 802.1x, NAT, QoS, SSH, NTP, SNMP, IGMP, SMTP, Unicast, Multicast, IPv4, IPv6 (optional)
UnicastMin. 5 Users
MulticastUnlimited Users
User InterfaceIPC Control (IE, Firefox, Chrome)
Max. User AccessMax. 10 Users (includes 2 internal)
Application ProgrammingONVIF (Profile S, Profile G), GB/T 28181-2011, API, CGI
Automatic Network Replenishment (ANR)Supported
Dual IPSupported
Network TestSupported
Alarm
Alarm TriggersAlarm input / Network disconnect / Disk full / Disk error
IntelligentMotion detection / Tampering / Guard line / Defocus / Scene change / Enter guard area / Exit guard area / Object left / Object removal / Gathering / Audio surge
Alarm EventsAlarm report / Recording / Text overlay / Snapshot / External output / Email notice / Acoustic alarm
Interfaces
Ethernet10/100M, RJ45 interface
Audio In / Out2 x Line in / 1 x Line out
Control1 x RS485
Alarm In / Out1 x Input / 1 x Output
Video Out1 x BNC, 1.0V [p-p] / 75Ω
Memory SlotMicro SD card slot, supports up to 128GB
Environmental
Operating Temperature-40°C ~ 70°C / -40°F ~ 158°F
Operating Humidity 10% ~ 95%
Protection LevelIK10+ @50J, IP67
Electrical
Power DC12V ± 10% / PoE (IEEE802.3af)
Power ConsumptionMax. 11W
Mechanical
Weight 0.71 kg / 1.57lb (Gross Weight)
DimensionsΦ122× 96.13mm / Φ4.8’’ x 3.78’’
StandardCE, FCC, EMC, LVD



-->
