Port Capacity

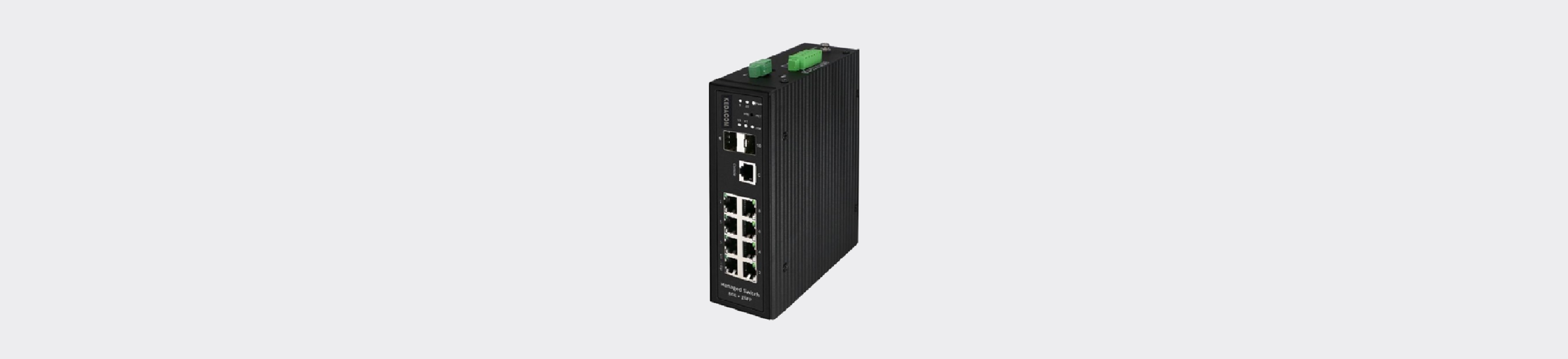

10 Port Gigabit Industrial Managed PoE   Switch

Port   Type

8x   10/100/1000Base-T RJ45 copper ports (PoE) + 2x 100/1000 SFP ports+1 RJ45   console port +1 Alarm Port

Performance

Switching   Capacity

20   Gbps , wire speed (non-blocking)

Referral   Rate

14.88   Mpps

MAC   Table

8K

Jumbo   Frames

9.6K

Storage

4M

Auto-negotiation

Supports

Audio   MDI/MDIX

Supports

Store   and Forward

Supports

Layer 2+ Features

Spanning   Tree Protocol (STP)

IEEE802.1d   Spanning Tree Protocol IEEE802.1w Rapid Spanning Tree Protocol IEEE802.1s   Multiple Spanning Tree Protocol,Loop Back Detection

IGMP   Snooping

IGMP   v1/v2/v3

VLANs

Support   up to 4K VLANs Port-based VLAN 802.1Q tag-based/trunk based VLAN Guest VLAN

Link   Aggregation

IEEE   802.3ad LACP

Ethernet   Ring Protection

G.8032   ERPS

Flow   Control

IEEE802.3x

Private   VLAN

Supports

Static   Routing

Supports

Static   Routing

Supports

Security Features

Broadcast,   multicast, unicast storm control Secure Sockets Layer (SSL), Web security   DHCP Sniffing ARP Inspection IP Source Guard AAA, RADIUS, and TACACS+

Secure   Shell (SSH, SFTP), Telnet security, SSH v1 and v2 support, Secure Sockets   ACL, VLAN1 ID or IP address, MAC-Based Filtering, Protocol-Based, Layer   (SSL), Web security Port-Based, TCP/UDP Ethernet type, ICMP, IGMP Listening/   DHCP Sniffing ARP Querying, MVR, TCP flag, Port Security, 802.1x

Management

Web/SSL

SNMP   (v1, v2, v3) Firmware upgrade

Port

DHCP   Client (HTTP/HTTPs and TFTP)

Reflection

Web   GUI Interface LLDP

Port   Cable Diagnostics SNTP

Cable   Diagnostics SNTP

Insulation

CPU   Load TFTP

Telnet/SSH

Dual   Syslog

Ping


HTTP/HTTPs

RMON

IPv6

IPv6   MLD snooping

IPv4/IPv6   Dual Protocol Stack

IPv6   Ping

IPv6   VLAN

Service Quality

CoS

8 queues per port TCP/UDP Strict   Priority Weighted Round Robin (WRR) Strict Priority + Weighted Round Robin   Traffic Shaping

Speed Limitation

Login/Logout Speed L imitation Speed c ontrol

Traffic classification

IEEE802.1p DSCP / IP precedence ToS

PoE

Standard

IEEE802.3af, IEEE802.3at

Total   Power

240W

Max.PoE   power for each port

30W

General Parameters

DC Power Input

12-55V ( 47-55V for PoE )

Max.   Power Consumption

78   W

Working   Temperature

-40   - 80 ℃ / -50 - 85 ℃

Relative   humidity

5%   - 95%, non-condensing

MTBF

>   355,000 hours

Mechanical

Dimensions

165   x 148 x 54 mm

Weight

6.2   kg

Setup

IP40   rating , DIN-rail

Standard

EN55022

EN61000-6-2   EN61000-4-5 IEC60068-2-27 Ea

EN61000-6-4

EN61000-4-2   EN61000-4-6 CE

EN61000-3-2

EN61000-4-3   EN61000-4-8 FCC

EN61000-3-3

EN61000-4-4 IEC60068-2-6 ISO 9001
