2.0 Megapixel 1/2.8’’ progressive scan CMOS sensor
High definition and smooth picture, 1080p@25fps
H.265 video codec, saves up to 50% bandwidth and storage
Ultra low illumination, 0.001lux with color picture
Ultra WDR / HLC
Built-in deep learning face recognition algorithm
Support face anti-spoofing
Face intelligence exposure
Support compare while wearing mask
Support Face Recogintion
Support up to 5,000 face library, up to 1,000,000 event records
Micro SD card slot, supports Automatic Network Replenishment (ANR)
Bi-directional audio / Built-in Mic / alarm in and out / RS485
Dual-stream (1080p + D1)
Anti-fog glass
PoE
IK10
IP67 (optional)

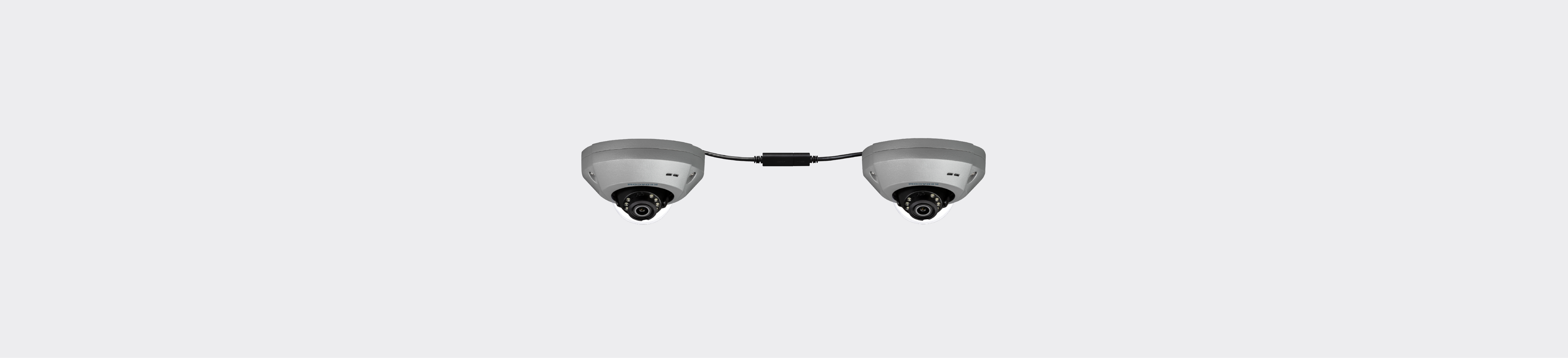

IPC2241-Fi4N-C1 | IPC2241-Fi4N-C2 | |
Camera | ||
Image Sensor | 1/2.8’’progressive scan CMOS | |
Pixels | 2.0 Megapixel | |
Min. Illumination | Color: 0.001lux @ (F1.6, AGC ON) | |
B/W: 0.0001lux @ (F1.6, AGC ON); | ||
Shutter Speed | 1 ~ 1/30,000s | |
Day / Night | Auto (ICR) / Color / B/W | |
Wide Dynamic Range | Ultra WDR, >=120dB | |
S/N Ratio | >=58dB | |
White Balance | Auto / Manual | |
Gain Control | Auto / Manual | |
Backlight Compensation | Off / WDR / BLC / HLC | |
Night View | White LED, 5m | |
Lens | ||
Mount Type | M12 | |
Focal Length | 3.6mm | |
Angle of View | Horizontal: 83.8°, Vertical: 45° | |
Adjustment Range | Pan: -45° ~ 45° / Tilt: 0° ~ 90° | |
Video | ||
Compression | Smart H.265 / H.265 / H.264 / MJPEG | |
Image Resolution | Main stream: 1080p | |
Secondary stream: D1 | ||
Frame Rate | Main stream: 1080p@25fps | |
Secondary stream: D1@25fps | ||
Bitrate | 32kbps ~ 8Mbps | |
Bitrate Control | VBR / CBR | |
Dual-stream | Supported | |
Caption | Date and time / Alarm / Customized | |
Image Flip | Flip / Mirror / Rotation 90°, 180°, 270° | |
Audio | ||
Compression | G.711a / G.711u / ADPCM | |
Bitrate | 32kbps ~ 64kbps | |
Audio Function | Bi-directional audio / AEC / Mixed audio recording / Dumb / Mute | |
Access Control | ||
Face Detection Comparison Library | 5000 | / |
Envent Capacity | 1,000,000 (Depends on the capacity of Micro SD card) | |
1:N Face Recognition | Supported | |
Accuracy Rate | >= 99.5% | |
Face Recognition Duration (1:N) | <= 0.5s | |
Face Detection Distance | 0.5 ~ 2m | |
Face Anti-Spoofing | Supported | |
Match with mask | Supported | |
Face Exposure | Supported | |
Network | ||
Network Protocols | TCP/IP, UDP, HTTP, DHCP, DNS/DDNS, RTP/RTCP, RTSP, PPPoE, FTP, VSIP, UPnP, 802.1x, NAT, QoS, SMTP, IPv4, IPv6 (optional) | |
User Interface | IPC Control (IE, Firefox, Chrome) | |
Max. User Access | Max. 10 Users (includes 2 internal) | |
Application Programming | ONVIF (Profile S, Profile G), GB/T 28181-2011, API, CGI, COI | |
Automatic Network Replenishment (ANR) | Supported | |
Interfaces | ||
Ethernet | 10/100M, RJ45 interface | / |
Audio In / Out | 1 x Built-in Mic / 1 x Speaker | 1 x Speaker |
Control | 1 x RS485, 1 x Exit button, 1 x Lock NO / NC, 1 x Door contact | / |
Alarm In / Out | 2 x Input / 1 x Output | / |
Memory Slot | Micro SD card slot, supports up to 256GB | |
Extension Interfaces | 1 x USB 3.0 Female Connector | 1 x USB3.0 Male Connector |
Environmental | ||
Operating Temperature | -40°C ~ 70°C / -40°F ~ 158°F | |
Operating Humidity | 10% ~ 95% | |
Protection level | IK10, IP67 (optional) | |
Electrical | ||
Power | 12V DC ± 25% | / |
Power Consumption | Max. 20W | |
Mechanical | ||
Weight | 1.2 kg / 2.65 lb (Gross Weight) | |
Dimensions | Φ103.7 × 99.4 x 61.7 mm / Φ4.08’’x 3.91’’x 2.43’’ |
