4.0 Megapixel 1/1.8" progressive scan CMOS sensor
High definition and smooth picture, 2688 x 1520@25fps
H.265 video codec, saves up to 50% bandwidth and storage
Ultra low illumination, 0.0002lux with color picture
Support WDR
WDR / 3D noise reduction / HLC / BLC
Motion detection / Tampering / Guard line / Defocus / Scene change / Enter guard area / Exit guard area / Object left / Object removal / Gathering / Audio surge
Support Deep Learning Algorithm
Up to 100 targets simultaneously
Target capturing
Bi-directional people counting
Built-in deep learning algorithm, best picture selection
Face Intelligence Exposure
Support human silhouette and face attributes recognition
Support vehicle attributesrecognition
Industrial components, withstands operation temperatures of -40°C ~ 70°C
IP66, TVS 6000V lightning protection, surge protection and voltage transient protection
33x optical zoom
IR distacne more than 100m
SD card slot, supports Automatic Network Replenishment (ANR)
Up to 3 video streams
Bi-directional audio / alarm in and out / video out / RS485
Built-in O-sensor

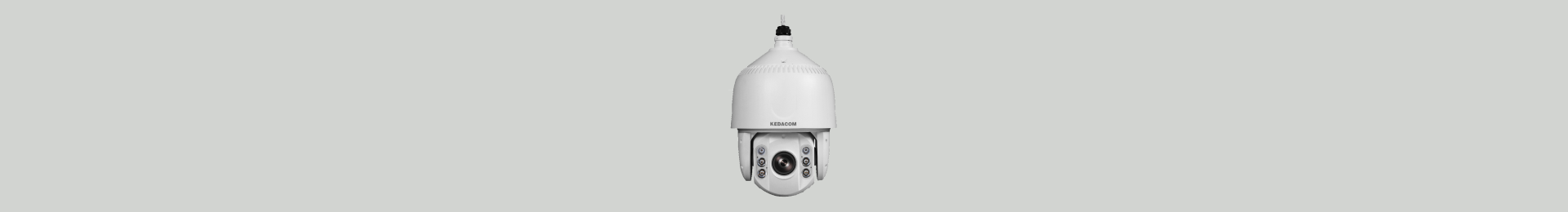

IPC445-i733-N | |
Camera | |
Image Sensor | 1/1.8" progressive scan CMOS |
Pixels | 4.0 Megapixel |
Min. Illumination | Color: 0.0002 Lux @F1.6(AGC ON) |
B/W: 0.0001 Lux @F1.6(AGC ON) | |
Shutter Speed | 1 ~ 1/30,000s |
Day / Night | Auto (ICR) / Color / B/W |
Wide Dynamic Range | Digital WDR |
S/N Ratio | >57dB |
White Balance | Auto / Manual |
Gain Control | Auto / Manual |
Backlight Compensation | Off / WDR / BLC / HLC |
Lens | |
Focal Length | 4.5 ~ 148.5mm, 33x optical |
Zoom Speed | Approx 3s (Optical) |
Angle of View | 58.5°(w)~3.7°(t) |
Min. Object Distance | 100 ~ 2000mm (Wide~Tele) |
Max. Aperture Ratio | F1.6 (Wide) / F4.1 (Tele) |
Focus Control | Auto / Manual / Semi-Automatic |
Infrared | |
IR LED | 6 pcs IR LED Array |
IR Distance | > 100m |
IR Intensity | Automatically adjust according to zoom ratio |
Pan and Tilt | |
Pan / Tilt Range | 360° Endless / -15° ~ 90° (Auto Flip) |
Pan / Tilt Speed | Pan manual speed: 0.1° ~ 160°/s; Pan preset speed: 160°/s |
Tilt manual speed: 0.1° ~ 120°/s; Tilt preset speed: 120°/s | |
Proportional Zoom | Pan / Tilt speed can be adjusted automatically according to zoom multiples |
Preset | 256 |
Patrol | 8 Patrols scheme, up to 32 presets per patrol |
Pattern Scan | 4 Scan paths, each path can record 10 minutes of operation path |
Power-off Memory | Power-off memory / Power-on recovery |
Auto Guard | Path / Preset / Mixed / Pan scan / Tilt scan / Frame scan / Random scan / Panorama scan |
PT Limit | Manual / Scan / Pan |
3D Positioning | PTZ control with mouse click and drag |
Electronic compass | Built-in O-sensor |
Video | |
Compression | H.265 / H.264 / MJPEG |
Image Resolution | Main stream: 2688 x 1520 |
Secondary stream: 1080P | |
Frame Rate | Main stream: 2688 x 1520@25fps |
Secondary stream: 1080P@30fps | |
Bitrate | 32kbps ~ 16Mbps |
Bitrate Control | VBR / CBR |
Multi-stream | Supported |
Caption | Date and time / Alarm / Direction / Customized |
Privacy Masking | Up to 4 zones |
Motion Detection | Up to 4 zones |
Video Freeze | Supported |
ROI | Supported |
Digital Noise Reduction | 3D noise reduction |
Digital Defog | Supported |
Image Flip | Flip / Mirror |
Audio | |
Compression | G.711a / G.711u / ADPCM / G.722 / G.722.1.c / G.726 |
Bitrate | 32kbps ~ 64kbps |
Audio Function | Bi-directional audio / AEC / Mixed audio recording / Dumb / Mute |
Network | |
Network Protocols | TCP/IP, UDP, HTTP, DHCP, DNS/DDNS, RTP/RTCP, RTSP, PPPoE, FTP, VSIP, UPnP, 802.1x, NAT, QoS, SMTP, IPv4, IPv6 (optional) |
User Interface | Chrome |
Max. User Access | Max. 20 Users (includes 2 internal) |
Application Programming | ONVIF (Profile S, Profile G, Profile T), GB/T 28181-2011, API, CGI |
Automatic Network Replenishment (ANR) | Supported |
Recognitive Functions | |
Target Detection | Person, Face, Vehicle Up to 100 human simultaneously |
Human Captured Picture | Person,Face Built-in picture comparison algorithm, best picture selection |
Human Recognition | Human silhouette attributes: gender, top/bottom type and color, bag, hat and umbrella, etc. Face attributes: gender, age, expressions, glasses, face mask and beard, etc. |
People Counting | Support bi-directional people counting |
Face Enhancement | Face Intelligence Exposure |
Vehicle Captured Picture | Vehicle body |
Vehicle Recognition | License plate, color, type and etc |
Alarm | |
Alarm Triggers | Alarm input / Network disconnect / Disk full / Disk error |
Basic Intelligent | Tampering / Defocus / Scene change / Object left / Object removal / Audio surge |
Deep Learning Intelligent | Human & Vehicle Detection: Motion detection / Guard line / Enter guard area / Exit guard area / People Gathering |
Alarm Events | Alarm report / Recording / Text overlay / Snapshot / External output / Email notice / Acoustic alarm |
Alarm | |
Alarm Triggers | Alarm input / Network disconnect / Disk full / Disk error |
Intelligent | Motion detection / Tampering / Guard line / Defocus / Scene change / Enter guard area / Exit guard area / Object left / Object removal / Gathering / Audio surge |
Alarm Events | Alarm report / Recording / Text overlay / Snapshot / External output / Email notice / Acoustic alarm |
Interfaces | |
Ethernet | 10/100M, RJ45 interface |
Audio In / Out | 1 x Line in / 1 x Line out |
Control | 1 x RS485 |
Alarm In / Out | 4 x Input / 2 x Output |
Video Out | 1 x BNC, 1.0V [p-p] / 75Ω |
Memory Slot | SD card slot, supports up to 256GB |
Environmental | |
Operating Temperature | -40°C~ 70°C / -40°F ~ 158°F |
Operating Humidity | 10% ~ 95% |
Protection Level | IP66, TVS 6000V lightning protection, surge protection and voltage transient protection |
Electrical | |
Power | 24V AC / 3A (Power adapter included) |
Power Consumption | Max. 45W |
Mechanical | |
Weight | 8kg / 17.6lb (Gross Weight) |
Dimensions | Φ214×379mm / Φ8.43’’ x 14.92’’ |
