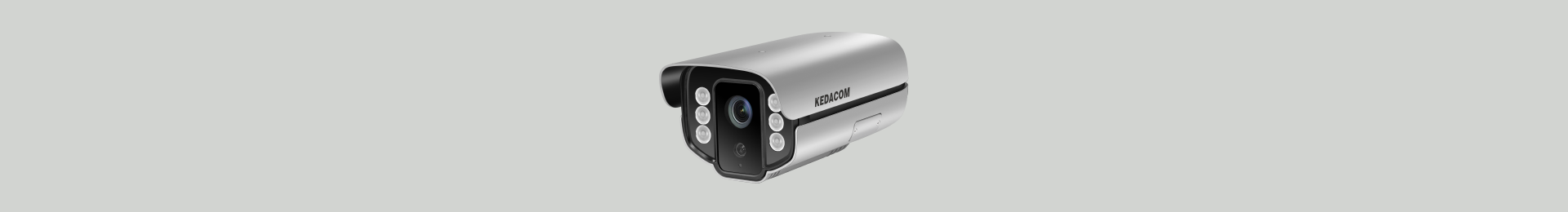

IPC2856-Di7N 8.0MP Dual-channel Recognitive HD Network Varifocal Bullet
Excellent Image Quality

  • 8.0 Megapixel 1/1.2'' progressive scan CMOS sensor

  • High definition and smooth picture, 3840 x 2160@25fps

  • H.265 video codec, saves up to 50% bandwidth and storage

  • 3D noise reduction / Auto Iris / HLC

Intelligent Functions

  • Motion detection / Tampering / Guard line / Defocus / Scene change / Enter guard area / Exit guard area / Object left / Object removal / Gathering / Audio surge

  • Support Deep Learning Algorithm

Recognitive Functions

  • Up to 100 targets simultaneously

  • Target capturing

  • Bi-directional people counting

  • Built-in deep learning algorithm, best picture selection

  • Face Intelligence Exposure

  • Support human silhouette and face attributes recognition

  • Support vehicle attributesrecognition

  • Support human face comparison, up to 50,000 database

  • Support license plate comparison, up to 50,000 database

Fill Light

  • White light and warm yellow light, up to 50m distance

A Variety of Installation Modes

  • Supports 90°, 180°, 270° image rotation

  • Varifocal AF lens

Abundant Functions and Features

  • Micro SD card slot, support Automatic Network Replenishment (ANR)

  • Bi-directional audio / alarm in and out / video out / RS485

  • 2 channel audio input simultaneously

  • -40°C ~ 70°C operation temperature

  • IP67


IPC2856-Di7N
Camera
Image Sensor Channel   1: 1/1.2’’ progressive scan CMOS
Channel 2: 1/1.8’’ progressive scan CMOS
PixelsChannel   1: 8.0 Megapixel
Channel 2: 4.0 Megapixel
Min. Illumination Color:   0.005lux  with AGC On
Shutter Speed1 ~ 1/30,000s
Day / NightAuto (ICR) / Color
Wide Dynamic RangeUltra  WDR, >=120dB
S/N Ratio>=58dB
White BalanceAuto / Manual
Gain ControlAuto / Manual
Backlight CompensationAuto / Manual
Lens
Focal LengthChannel  1: 15-50mm motorized varifocal AF lens
Channel 2: 4mm fixed lens
Focus   ControlManual / Semi-Automatic / Auto
Fill Light
IlluminatorWhite  light and warm yellow light, up to 50m distance
Video
CompressionH.265 / H.264 / MJPEG
Image ResolutionMain  stream: 3840 x 2160
Secondary stream: 1080P
Frame RateMain stream: 3840 x 2160@25fps
Secondary stream: 1080P@25fps
Bitrate32kbps  ~ 16Mbps
Bitrate ControlVBR / CBR
Multi-streamSupported
CaptionDate and time / Alarm / Customized
Privacy MaskingUp to 4 zones
Motion DetectionUp to 4 zones
ROISupported
Digital Noise Reduction3D  noise reduction
Image FlipFlip / Mirror / Center
Audio
CompressionG.711a  / G.711u / ADPCM / G.722
Bitrate32kbps ~ 64kbps
Audio FunctionBi-directional   audio / AEC / Mixed audio recording / Mute
Network
Network ProtocolsTCP/IP,   UDP, HTTP, DHCP, DNS/DDNS, RTP/RTCP, RTSP, FTP, VSIP, UPnP, 802.1x, NAT, QoS,   SMTP, IPv4
User InterfaceChrome
Max. User AccessMax.16 Users (includes 2 internal)
Application ProgrammingONVIF(Profile S, Profile G, Profile T), GB/T 28181-2011, API, CGI
Automatic Network Replenishment (ANR)Supported
Recognitive Functions
Target DetectionPerson, Face, Vehicle
Up to 100 human simultaneously
Human Captured PicturePerson,   Face
Built-in picture comparison algorithm, best picture selection
Human RecognitionHuman  silhouette attributes: gender, top/bottom type and color, bag, hat and   umbrella, etc.
Face attributes: gender, age, expressions, glasses, face mask and beard, etc.
Face ComparisonSupport  face comparison,up to 50,000 face database
People CountingSupport  bi-directional people counting
Face EnhancementFace  Intelligence Exposure
Vehicle Captured PictureVehicle  body
Vehicle RecognitionLicense plate, color, type and etc
License ComparisonSupport  LPR comparison, up to 50,000 license plate database
Alarm
Alarm TriggersAlarm  input / Network disconnect / Disk full / Disk error
Basic   IntelligentTampering / Defocus / Scene change / Object left / Object removal / Audio surge
Deep Learning IntelligentHuman &   Vehicle Detection:
Motion detection / Guard line / Enter guard area / Exit guard area / People Gathering
Alarm   EventsAlarm  report / Recording / Text overlay / Snapshot / External output / Email notice  / Acoustic alarm
Interfaces
Ethernet10/100M/1000m, RJ45 interface
Audio In / Out2 x Line in / 1 x Line out / 2 x Mic in / 1 x Speaker
Control1 x RS485
Alarm In / Out3 x Input / 2 x Output
GPS1 x GPS
Memory SlotMicro  SD card slot, supports up to 1TB
Power Out1 x DC 12V, 0.4A
Environmental
Operating Temperature-40°C ~ 70°C / -40°F ~ 158°F
Operating Humidity 10% ~ 95%
Protection levelIP67
Electrical
Power AC 24V
Power   ConsumptionMax. 45W
Mechanical
Weight 3.5kg/ 7.7lb (Gross Weight)
Dimensions395 x 170 x 151mm / 15.55'' x 6.69'' x 5.94''
