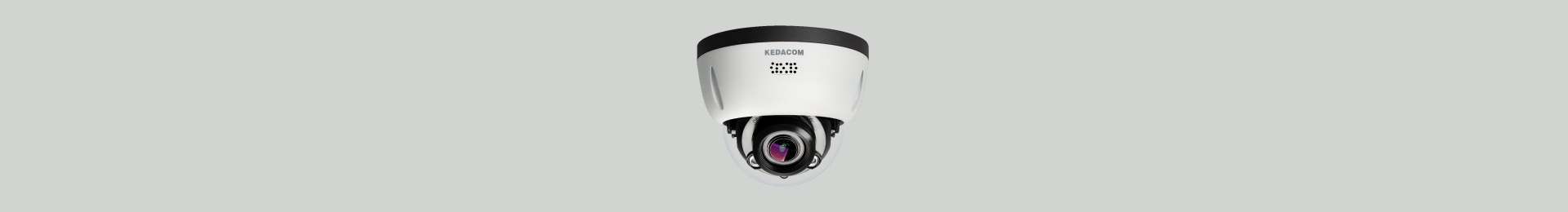

IPC2833-Fi4N-SIR50-Z6022 8.0MP Human Recognitive HD Network Vandal-Proof Varifocal IR Semi Dome
Excellent Image Quality

  • 8.0 Megapixel 1/2.8'' progressive scan CMOS sensor

  • High definition and smooth picture, 3840 x 2160@20fps

  • H.265 video codec, saves up to 50% bandwidth and storage

  • Ultra low illumination, 0.005lux with color picture

  • 120dB Ultra WDR

  • 3D noise reduction / Auto Iris / HLC

Intelligent Functions

  • Motion detection / Tampering / Guard line / Defocus / Scene change / Enter guard area / Exit guard area / Object left / Object removal / Gathering / Audio surge

  • Support deep learning algorithm

Recognitive Functions

  • Target capturing

  • Human silhouette attributes: gender, top/bottom type and color, bag, hat and umbrella, etc.

  • Face attributes: gender, age, expressions, glasses, face mask and beard, etc.

  • Bi-directional people counting

  • Face Intelligence Exposure

Vandal-Proof

  • Above IK10 @ 50J collision energy

Integrated High Efficiency IR

  • Industrial IR LED with long operational lifespan

  • 20 ~ 50m IR distance

  • Smart IR function

A Variety of Installation Modes

  • Supports 90°, 180°, 270° image rotation

  • Motorized varifocal lens

Abundant Functions and Features

  • Micro SD card slot, supports Automatic Network Replenishment (ANR)

  • Bi-directional audio / alarm in and out / RS485 / Built-in Mic & Speaker

  • 2 channel audio input simultaneously

  • Up to 3 Multi-stream

  • PoE

  • IP67



IPC2833-Fi4N-SIR50-Z6022
Camera
Image Sensor 1/2.8" progressive scan CMOS
Pixels8.0  Megapixel
Min. Illumination Color: 0.005lux@ (F1.6,  AGC ON)
B/W: 0.0005lux@ (F1.6,    AGC ON); 0lux  with IR
Shutter Speed1 ~ 1/30,000s
Day / NightAuto (ICR) / Color / B/W
Wide Dynamic RangeUltra  WDR, >=120dB
S/N Ratio>=58db
White BalanceAuto / Manual
Gain ControlAuto / Manual
Backlight CompensationOff / BLC / WDR / HLC
Lens
Mount TypeΦ14
Auto IrisDC  drive
Focal Length6-22mm@F1.6~F2.8 motorized varifocal lens
Focus ControlManual / Semi-Automatic / Auto
Adjustment RangePan: -120° ~ +120° / Tilt: 0° ~ 90°
Infrared
IR Distance20 ~ 50m
IR IntensitySmart   IR
Video
CompressionSmart  265 / H.265(Main Profile) / H.264(BaseLine Profile/Main Profile/High Profile)   /MJPEG
Image ResolutionMain stream: 3840×2160
Secondary stream: 720P
Frame RateMain stream: 3840×2160@20fps
Secondary stream: 720P@25fps
Bitrate32kbps ~ 16Mbps
Bitrate ControlVBR / CBR
Multi-streamSupported
CaptionDate  and time / Alarm / Customized
Privacy MaskingUp to 4 zones
Motion DetectionUp to 4 zones
Video FreezeSupported
ROISupported
Digital Noise Reduction3D  noise reduction
Digital DefogSupported
Image FlipFlip / Mirror / Rotation at 90°,180°,270°
Audio
CompressionG.711a / G.711u / ADPCM / G.722 / G.722.1c / G.726
Bitrate32kbps ~ 64kbps
Audio FunctionBi-directional   audio / AEC / Mixed audio recording / Dumb / Mute
Network
Network ProtocolsTCP/IP, UDP, HTTP, HTTPS, DHCP,   DNS/DDNS, RTP/RTCP, RTSP, PPPoE, FTP,IGMP, UPnP, 802.1x, NAT, QoS, SMTP,   IPv4, IPv6 (optional)
User InterfaceIPC Control   (IE, Firefox, Chrome)
Max. User AccessMax.20 Users (includes 2 internal)
Application ProgrammingONVIF (Profile S, Profile G), GB/T 28181-2016, API, CGI
Automatic Network Replenishment (ANR)Supported
Recognitive Functions
Target DetectionPerson,   Face
Captured PicturePerson,   Face
Built-in picture comparison algorithm, best picture selection
Human RecognitionHuman   silhouette attributes: gender, top/bottom type and color, bag, hat and   umbrella, etc.
Face attributes: gender, age, expressions, glasses, face mask and beard,   etc.
People CountingSupport  bi-directional people counting
Face EnhancementFace  Intelligence Exposure
Alarm
Alarm TriggersAlarm  input / Network disconnect / Disk full / Disk error
Basic   IntelligentTampering /   Defocus / Scene change / Object left / Object removal / Audio surge
Deep Learning IntelligentHuman &   Vehicle Detection:
Motion detection / Guard line  /   Enter guard area / Exit guard area / People Gathering
Alarm   EventsAlarm  report / Recording / Text overlay / Snapshot / External output / Email notice   / Acoustic alarm
Interfaces
Ethernet10/100M, RJ45 interface
Audio In / Out1×Line  In, 1×Line Out, 1 x Built-in Mic in, 1 x Speaker
Control1 x RS485
Alarm In / Out2 x Input / 1 x Output
Memory SlotMicro  SD card slot, supports up to 256GB
Environmental
Operating Temperature -40°C ~ 70°C / -40°F ~ 158°F
Operating Humidity 10% ~ 95%,No condensation
Protection LevelIP67, IK10
Electrical
Power 12V  DC ± 10% / PoE (IEEE802.3af)
Power ConsumptionMax.12W
Mechanical
Weight 0.71kg / 1.57lb (Gross Weight)
DimensionsΦ122× 99.6mm / Φ4.8’’ x 3.92’’
