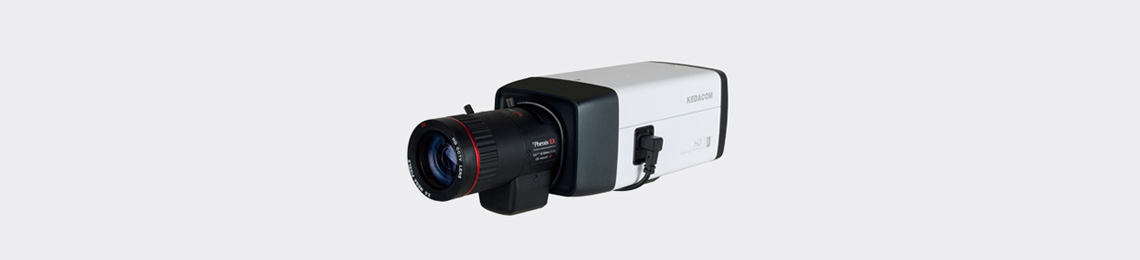

IPC123-Ei7N 2.0MP Recognitive HD Network Box Camera

Excellent Image Quality

  • 2.0 Megapixel 1/1.9’’ Progressive Scan CMOS Sensor
  • High definition and smooth picture, 1080p@25fps
  • Ultra low illumination, 0.002Lux with color picture
  • WDR / HLC / 3D noise reduction

Recognitive Functions

  • Up to 50 targets simultaneously
  • Target capturing and characters recognizing

Abundant Functions and Features

  • TF card slot, supports Automatic Network Replenishment (ANR)
  • Up to 4 Multi-stream
  • Bi-direactional audio / alarm in&out / video out / RS485
　IPC123-Ei7N
Camera
Image Sensor1/1.9’’ Progressive Scan CMOS
Pixels2.0 Megapixel
Min. IlluminationColor: 0.002Lux @ (F1.2, AGC ON)
B/W: 0.0002Lux @ (F1.2, AGC ON)
Shutter Speed1/10 ~ 1/10,000s
Day / NightAuto (ICR) / Color / B/W
Wide Dynamic RangeDigital WDR
S/N Ratio>52dB
White BalanceAuto / Manual
Gain ControlAuto / Manual
Backlight CompensationOff / WDR / BLC / HLC
Lens (not included)
Mount TypeC / CS
Auto IrisDC drive / P-Iris
Video
CompressionH.264
Image ResolutionMain stream: 1080p
Secondary stream: D1
Frame RateMain stream: 1080p@25fps
Secondary stream: D1@25fps
Bitrate32kbps ~ 16Mbps
Bitrate ControlCBR
Multi-streamSupported
CaptionDate and time / Alarm / Direction / Customized
Privacy MaskingUp to 4 zones
Motion DetectionUp to 4 zones
Video FreezeSupported
ROISupported
Digital Noise Reduction3D noise reduction
Digital DefogSupported
Image FlipFlip / Mirror
Audio
CompressionG.711a / G.711u / ADPCM / G.722 / G.722.1c
Bitrate32kbps ~ 64kbps
Audio FunctionBi-directional audio / AEC / Mixed audio recording / Dumb / Mute
Network
Network ProtocolsTCP/IP, UDP, HTTP, DHCP, DNS/DDNS, RTP/RTCP, RTSP, PPPoE, FTP, VSIP, UPnP, 802.1x, NAT, QoS, SMTP, IPv4, IPv6 (optional)
User InterfaceIPC Control (IE, firefox, Chrome)
Max. User AccessMax. 10 Users (includes 2 internal)
Application ProgrammingOnvif (Profile S, Profile G), GB/T 28181-2011, API, CGI
Automatic Network Replenishment (ANR)Supported
Recognitive Functions
Target Detectionup to 50 moving targets simultaneously
Target Capturing ModeAutomatic
Target CharactersType / Direction / Color / Speed level / Size level
Alarm
Alarm TriggersAlarm input / Network disconnect / Disk full / Disk error
Alarm EventsAlarm report / Recording / Text overlay / Snapshot / External output / Email notice / Acoustic alarm
Interfaces
Ethernet10/100M, RJ45 interface
Audio In / Out1 x Line in / 1 x Line out
Control1 x RS485
Alarm In / Out1 x Input / 1 x Output
Video Out1 x BNC, 1.0V [p-p] / 75Ω
Memory SlotMicro SD card slot, support up to 128GB
Environmental
Operating Temperature-40°C ~ 60°C / -40°F ~ 140°F
Operating Humidity10% ~ 95%
Electrical
Power12V DC ± 10% / PoE (IEEE802.3af)
Power ConsumptionMax. 6W
Mechanical
Weight0.5kg / 1.1lb (Gross Weight)
Dimensions147.5 x 68 x 61mm / 5.81’’ x 2.68’’ x 2.40’’
Recommended Cover

CH-111

Outdoor small shield

Recommended Lens

DV3.8X4SR4A-SA1L

FUJINON, 4~15.2mm, 1/1.8", 3 Megapixels Manual focus

DV4x12.5SR4A-SA1L

FUJINON, 12.5~50mm, 1/1.8", 5 Megapixels Manual focus

HV1250D.IR2(6MP)

RICOM, 12~50mm, 1/1.8", 6.0 Megapixels Manual focus
