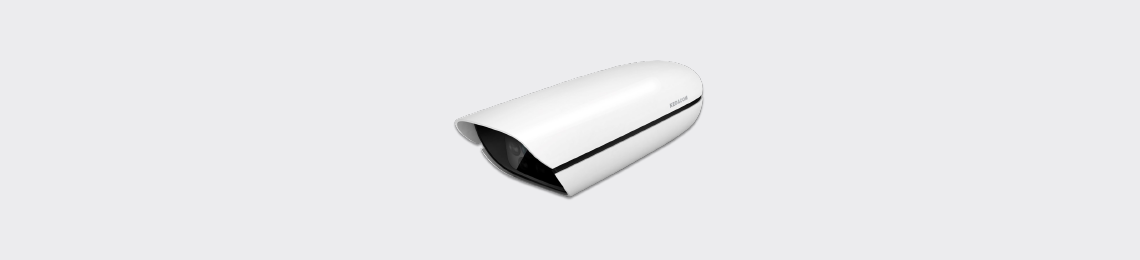

IPC2655-Gi4N 6.0MP Human Recognitive HD Network Varifocal IR Bullet Camera
 Excellent Image Quality
  • 6.0 Megapixel 1/1.8’’ Progressive Scan CMOS Sensor

  • High definition and smooth picture, 3072 x 2048@30fps

  • WDR / HLC / 3D noise reduction

Recognitive Functions
  • Up to 100 targets simultaneously

  • Target capturing and characters recognizing

  • Bi-directional people counting

  • Built-in picture comparison algorithm, best picture selection

  • Face Intelligence Exposure

Abundant Functions and Features
  • Micro SD card slot, supports Automatic Network Replenishment (ANR)

  • Bi-directional audio / alarm in&out / RS485

  • -40°C ~ 60°C operation temperature

  • IP66

Image Sensor 1/1.8’’Progressive Scan CMOS
Pixels6.0 Megapixel
Min. Illumination Color: 0.01Lux @ (F1.4, AGC ON)
B/W: 0.001Lux @ (F1.4, AGC ON)
Shutter Speed1/7.5 ~ 1/16,000s
Day / NightAuto (ICR) / Color / B/W
Wide Dynamic RangeDigital WDR
S/N Ratio52dB
White BalanceAuto / Manual
Gain ControlAuto / Manual
Backlight CompensationOff / WDR / BLC / HLC
Auto IrisDC drive
Focal Length15 ~ 50mm @ F1.4 motorized varifocal lens
Focus ControlManual / Semi-Automatic / Auto
IR Distance100m
IR IntensitySmart IR
CompressionH.265 / H.264
Image ResolutionMain stream: 3072 x 2048
Secondary stream: D1
Frame RateMain stream: 3072 x 2048@30fps
Secondary stream: D1@30fps
Bitrate32kbps ~ 16Mbps
Bitrate ControlVBR   / CBR
CaptionDate and time / Alarm / Direction / Customized
Privacy MaskingUp to 4 zones
Motion DetectionUp to 4 zones
Video FreezeSupported
Digital Noise Reduction3D noise reduction
Image FlipFlip / Mirror
CompressionG.711a / G.711u / ADPCM / G.722 / G.722.1c
Bitrate32kbps ~ 64kbps
Audio FunctionBi-directional audio / AEC / Mixed audio recording / Dumb / Mute
Network ProtocolsTCP/IP, UDP, HTTP, DHCP, DNS/DDNS, RTP/RTCP, RTSP, PPPoE, FTP, VSIP, UPnP, 802.1x,   NAT, QoS, SMTP, IPv4, IPv6 (optional)
User InterfaceIPC Control (IE, Firefox, Chrome)
Max. User AccessMax. 10 Users (includes 2 internal)
Application ProgrammingOnvif (Profile S, Profile G), GB/T 28181-2011, API, CGI
Automatic Network Replenishment (ANR)Supported
Recognitive Functions
Target DetectionPerson, Face
up to
100 targets   simultaneously
Captured PicturePerson, Face, Full view
Built-in picture comparison algorithm, best picture selection
Target CharactersDirection / Speed level
People   CountingBi-directional
Face   EnhancementFace Intelligence Exposure
Alarm TriggersAlarm input / Network disconnect / Disk full / Disk error
Alarm EventsAlarm report / Recording / Text overlay / Snapshot / External output / Email notice   / Acoustic alarm
Ethernet10/100M, RJ45 interface
GPSBuild-in   GPS module
Audio In / Out2 x Line in / 1 x Line out
Control1 x RS485
Alarm In / Out2 x Input / 1 x Output
Memory SlotMicro SD card slot, supports up to 128GB
Operating Temperature-40°C ~ 60°C / -40°F ~ 140°F
Operating Humidity 10% ~ 95%
Protection LevelIP66
Power AC 24V ± 10%
Power ConsumptionMax. 25W
Weight 2.8kg / 6.17lb (Gross Weight)
Dimensions383   x 129.9 x 133mm / 15.05’’ x 5.11’’ x 5.24’’
