IPC2855-Fi5N & IPC445-i033-N Intelligent Tracking System 2.0

  • 1  bullet camera for panoramic view mode and to locate targets

  • Up to 3 PTZ cameras to track and zoom-in on individual targets

  • Camera built-in tracking algorithm

  • PTZ track for large open space

  • High accuracy multi target tracking

  • High security virtual fencing zone

  • Up to 60 moving targets

  • Up to 10000 M² coverage

  • High-speed target switching

  • Target capturing and characters recognizing

  • SDK support



　IPC2855-Fi5N
Camera
Image Sensor 1/1.8’’ Progressive Scan CMOS
Pixels8.0 Megapixel
Min. Illumination Color: 0.0002Lux @ (F1.0, AGC ON)
B/W: 0.0001Lux @ (F1.0, AGC ON)
Shutter Speed1/7.5 ~ 1/30,000s
Day / NightAuto (ICR) / Color / B/W
Wide Dynamic RangeUltra WDR, >=120dB
S/N Ratio57dB
White BalanceAuto / Manual
Gain ControlAuto / Manual
Backlight CompensationOff / WDR / BLC / HLC
Lens
Focal Length5mm @ F1.0 motorized varifocal lens
Focus ControlManual / Semi-Automatic / Auto
Infrared
IR Distance60 ~ 80m
IR IntensitySmart IR
Video
CompressionH.265 / H.264
Image ResolutionMain stream: 4K (3840×2160)
Secondary stream: D1
Frame RateMain stream: 3840×2160@30fps
Secondary stream: D1@30fps
Bitrate32kbps ~ 32Mbps
Bitrate ControlVBR / CBR
Multi-streamSupported
CaptionDate and time / Alarm / Direction / Customized
Privacy MaskingUp to 4 zones
Motion DetectionUp to 4 zones
Video FreezeSupported
Digital Noise Reduction3D noise reduction
Image FlipFlip / Mirror
Guard Zone
Guard Zone Levelup to 3 level, up 8 zones per level
Regional Shieldup to 8 shield areas
Guard SchemeDisable / Always / Scheduled
Alarm Captioncustomized alarm caption supported
Intelligent Tracking
Distanceup to 120m (Lock target)
Target Numberup to 60 simultaneously
Tracking ModeAutomatic / Semi-automatic
PTZ Camera ModelIPC445-i033-N supported
PTZ Camera Numberup to 3 PTZ cameras supported
Tracking Target Numberup to 3 simultaneously depending on the number of PTZ cameras
Target Tracked TimeMin. 5s / customized
Audio
CompressionG.711a / G.711u / ADPCM / G.722 / G.722.1c
Bitrate32kbps ~ 64kbps
Audio FunctionBi-directional audio / AEC / Mixed audio recording / Dumb / Mute
Network
Network ProtocolsTCP/IP, UDP, HTTP, DHCP, DNS/DDNS, RTP/RTCP, RTSP, PPPoE, FTP, VSIP, UPnP, 802.1x, NAT, QoS, SMTP, IPv4, IPv6 (optional)
User InterfaceIPC Control (IE, Firefox, Chrome)
Max. User AccessMax. 20 Users (includes 2 internal)
Application ProgrammingOnvif (Profile S, Profile G), GB/T 28181-2011, API, CGI
Automatic Network Replenishment (ANR)Supported
Alarm
Alarm TriggersAlarm input / Network disconnect / Disk full / Disk error
IntelligentMotion detection / Tampering / Guard line / Defocus / Scene change / Enter guard area / Exit guard area / Object left / Object removal / Gathering / Audio surge
Alarm EventsAlarm report / Recording / Text overlay / Snapshot / External output / Email notice / Acoustic alarm
Interfaces
Ethernet10/100M/1000M, RJ45 interface
GPSBuild-in GPS module
Audio In / Out1 x Line in / 1 x Line out
Control1 x RS485
Alarm In / Out2 x Input / 1 x Output
Memory SlotMicro SD card slot, supports up to 256GB
Environmental
Operating Temperature-40°C ~ 70°C / -40°F ~ 158°F
Operating Humidity 10% ~ 95%
Protection LevelIP66
Electrical
Power AC 24V ± 20%
Power ConsumptionMax. 36W
Mechanical
Weight 2.8kg / 6.17lb (Gross Weight)
Dimensions383 x 129.9 x 133mm / 15.05’’ x 5.11’’ x 5.24’’

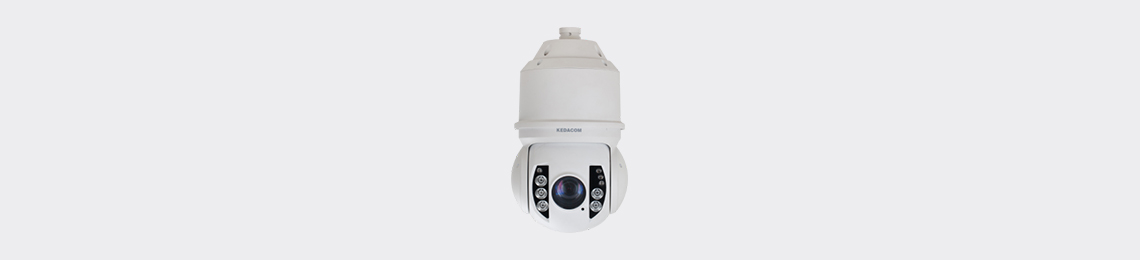

　IPC445-i033-N
Camera
Image Sensor 1/1.8’’ progressive scan CMOS
Pixels4.0 Megapixel
Min. Illumination Color: 0.001lux @ (F1.5, AGC ON)
B/W: 0.0001lux @ (F1.5, AGC ON); 0lux with IR
Shutter Speed1 ~ 1/30,000s
Day / NightAuto (ICR) / Color / B/W
Wide Dynamic RangeUltra WDR, >=120dB
S/N Ratio>=55dB
White BalanceAuto / Manual
Gain ControlAuto / Manual
Backlight CompensationOff / WDR / BLC / HLC
Lens
Focal Length4.5 ~ 148.5mm, 33x optical
Zoom SpeedApprox 3s (Optical)
Angle of View70°~ 3.8° (Wide~Tele)
Min. Object Distance300 ~ 1500mm (Wide~Tele)
Max. Aperture RatioF1.5 (Wide) / F3.4 (Tele)
Focus ControlAuto / Manual / Semi-Automatic
Infrared
IR LED9 pcs IR LED Array
IR Distance180 ~ 220m
IR IntensityAutomatically adjust according to zoom ratio
Pan and Tilt
Pan / Tilt Range360° Endless / -20° ~ 90° (Auto Flip)
Pan / Tilt SpeedPan manual speed: 0.1° ~ 240°/s; Pan preset speed: 300°/s
Tilt manual speed: 0.1° ~ 160°/s; Tilt preset speed: 240°/s
Proportional ZoomPan / Tilt speed can be adjusted automatically according to zoom multiples
Preset 512
Patrol8 Patrols scheme, up to 32 presets per patrol
Pattern Scan4 Scan paths, each path can record 10 minutes of operation path
Power-off MemoryPower-off memory / Power-on recovery
Auto GuardPath / Preset / Mixed / Pan scan / Tilt scan / Frame scan / Random scan / Panorama scan
PT LimitManual / Scan / Pan
3D Positioning PTZ control with mouse click and drag
Electronic compassBuilt-in O-sensor
Video
CompressionH.265 / H.264 / MJPEG
Image ResolutionMain stream: 2560 x 1440
Secondary stream: D1
Frame RateMain stream: 2560 x 1440@30fps, 1080p@30fps
Secondary stream: D1@30fps
Bitrate32kbps ~ 16Mbps
Bitrate ControlVBR / CBR
Multi-streamSupported
CaptionDate and time / Alarm / Direction / Customized
Privacy MaskingUp to 4 zones
Motion DetectionUp to 4 zones
Video FreezeSupported
ROISupported
Digital Noise Reduction3D noise reduction
Digital DefogSupported
Image FlipFlip / Mirror
Audio
CompressionG.711a / G.711u / ADPCM / G.722  / G.722.1c / G.726
Bitrate32kbps ~ 64kbps
Audio FunctionBi-directional audio / AEC / Mixed audio recording / Dumb / Mute
Intelligent Tracking
Target Capturing ModeAutomatic
Target DetectionHuman silhouette, Vehicle
Captured Picture No.1 ~ 5
Target CharactersType / Time of appear / Time of left / Direction / Color / Speed level / Size level / Face
Network
Network ProtocolsTCP/IP, UDP, HTTP, DHCP, DNS/DDNS, RTP/RTCP, RTSP, PPPoE, FTP, VSIP, UPnP, 802.1x, NAT, QoS, SMTP, IPv4, IPv6 (optional)
User InterfaceIPC Control (IE, Firefox, Chrome)
Max. User AccessMax. 20 Users (includes 2 internal)
Application ProgrammingONVIF (Profile S, Profile G), GB/T 28181-2011, API, CGI
Automatic Network Replenishment (ANR)Supported
Alarm
Alarm TriggersAlarm input / Network disconnect / Disk full / Disk error
IntelligentMotion detection / Tampering / Guard line / Enter guard area / Exit guard area / Object left / Object removal / Gathering / Audio surge
Alarm EventsAlarm report / Recording / Text overlay / Snapshot / External output / Email notice / Acoustic alarm
Interfaces
Ethernet10/100M, RJ45 interface
Audio In / Out1 x Line in / 1 x Line out
Control1 x RS485
Alarm In / Out4 x Input / 2 x Output
Video Out1 x BNC, 1.0V [p-p] / 75Ω
Memory SlotSD card slot, supports up to 256GB
Environmental
Operating Temperature-40°C ~ 70°C / -40°F ~ 158°F
Operating Humidity 10% ~ 95%
Protection LevelIP66, TVS 6000V lightning protection, surge protection and voltage transient protection
Electrical
Power 24V AC / 3A (Power adapter included)
Power ConsumptionMax. 45W (IR on)
Mechanical
Weight 8 kg / 17.6lb (Gross Weight)
DimensionsΦ214× 379mm / Φ8.43’’ x 14.92’’

Accessories
Standard1 × bullet camera bracket (CM-W15,), 1 × Power adapter (36W AC)
n × PTZ camera bracket (DM-W43, n is the number of tracking PTZ cameras)
