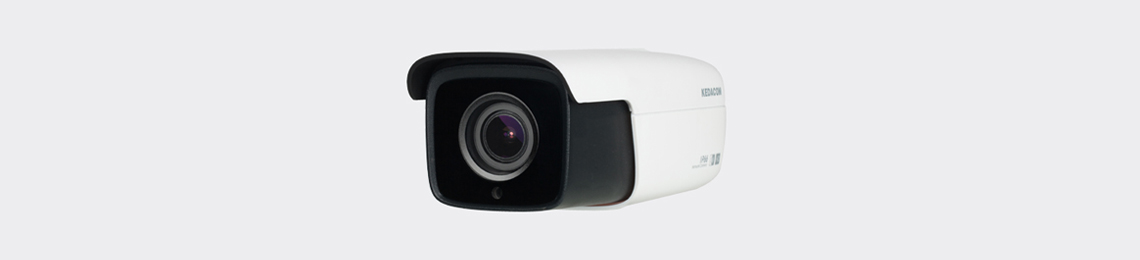

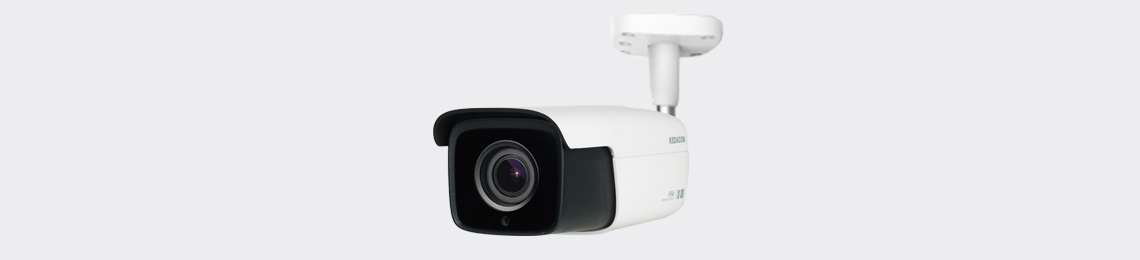

IPC2852-Fi4N&Fi4NB-SIR50-Z6022 8.0MP Human Recognitive HD Network Varifocal IR Bullet Camera
Excellent Image Quality

  • 8.0 Megapixel 1/2.8’’ progressive scan CMOS sensor

  • High definition and smooth picture,  3840 x 2160@20fps

  • H.265 video codec, saves up to 50% bandwidth and storage

  • Ultra low illumination, 0.005lux with color picture

  • 120dB Ultra WDR

  • 3D noise reduction / HLC

Intelligent Functions

  • Motion detection / Tampering / Guard line / Defocus / Scene change / Enter guard area / Exit guard area  / Object left / Object removal / Gathering / Audio surge

Recognitive Functions

  • Target capturing

  • Bi-directional people counting

  • Face Intelligence Exposure

Integrated High Efficiency IR

  • Industrial IR LED with long operational lifespan

  • Up to 70m IR distance

  • Smart IR function

A Variety of Installation Modes

  • Supports 90°, 180°, 270° image rotation

  • Motorized varifocal lens

Abundant Functions and Features

  • Micro SD card slot, supports Automatic Network Replenishment (ANR)

  • Bi-directional audio / alarm in and out / RS485

  • Up to 3 Multi-stream

  • Anti-fog glass

  • -40°C ~ 70°C operation temperature

  • PoE

  • IP67



　IPC2852-Fi4N&Fi4NB-SIR50-Z6022
Camera
Image Sensor 1/2.8’’ progressive scan CMOS
Pixels8.0 Megapixel
Min. Illumination Color: 0.005lux@ (F1.6,  AGC ON)
B/W: 0.0005lux@ (F1.6,  AGC ON); 0lux with IR
Shutter Speed1 ~ 1/30,000s
Day / NightAuto (ICR) / Color / B/W
Wide Dynamic RangeUltra WDR, >=120db
S/N Ratio>=58db
White BalanceAuto / Manual
Gain ControlAuto / Manual
Backlight CompensationOff / WDR / BLC / HLC
Lens
Mount TypeΦ14
Auto IrisDC drive
Focal Length-Z6022: 6-22mm @F1.6~F3.3 motorized varifocal lens
Focus ControlManual / Semi-Automatic / Auto
Angle of ViewHorizontal : 29.4°(T)~99.6°(W)   Vertical : 16.5°(T)~53.1°(W)
Infrared
IR Distance50 ~ 70m
IR IntensitySmart IR
Video
CompressionSmart 265 / H.265 (Main Profile) / H.264 (BaseLine Profile/Main Profile/High Profile) / MJPEG
Image ResolutionMain stream: 3840 x 2160
Secondary stream: 720P
Frame RateMain stream: 3840 x 2160@20fps
Secondary stream: 720P@25fps
Bitrate32kbps ~ 16Mbps
Bitrate ControlVBR / CBR
Multi-streamSupported
CaptionDate and time / Alarm / Customized
Privacy MaskingUp to 4 zones
Motion DetectionUp to 4 zones
ROISupported
Digital Noise Reduction3D noise reduction
Digital DefogSupported
Image FlipFlip / Mirror / Rotation 90°, 180°, 270°
Audio
CompressionG.711a / G.711u / ADPCM / G.722  / G.722.1c / G.726
Bitrate32kbps ~ 64kbps
Audio FunctionBi-directional audio / AEC / Mixed audio recording / Dumb / Mute
Network
Network ProtocolsTCP/IP, UDP, HTTP,HTTPS, DHCP, DNS/DDNS, RTP/RTCP, RTSP, PPPoE, FTP, IGMP, UPnP, 802.1x, NAT, QoS, SMTP, IPv4 , IPv6 (optional)
Max. User AccessMax. 20 Users (includes 2 internal)
Application ProgrammingONVIF (Profile S, Profile G), GB/T 28181-2016, API, CGI
Automatic Network Replenishment (ANR)Supported
Recognitive Functions
Target DetectionPerson, Face
Captured PicturePerson, Face, Full view
Target CharactersDirection / Speed level
People CountingBi-directional
Face EnhancementFace Intelligence Exposure
Alarm
Alarm TriggersAlarm input / Network disconnect / Disk full / Disk error
IntelligentMotion detection / Tampering / Guard line / Defocus / Scene change / Enter guard area / Exit guard area / Object left / Object removal / Gathering / Audio surge
Alarm EventsAlarm report / Recording / Text overlay / Snapshot / External output / Email notice / Acoustic alarm
Interfaces
Ethernet10/100M, RJ45 interface
Audio In / Out1 x Line in / 1 x Line out
Control1 x RS485
Alarm In / Out2 x Input / 1 x Output
Memory SlotMicro SD card slot, supports up to 256GB
Environmental
Operating Temperature-40°C ~ 70°C / -40°F ~ 158°F
Operating Humidity 10% ~ 95%, No condensation
Protection LevelIP67, IK10(optional)
Electrical
Power 12V DC ± 10% / PoE (IEEE802.3af)
Power ConsumptionMax. 11W
Mechanical
Weight -Fi4N: 1kg / 2.2lb (Gross Weight)
-Fi4NB: 1.2kg / 2.65lb (Gross Weight)
Dimensions-Fi4N: 181.5 x 80 x 73mm / 7.15’’ x 3.15’’ x 2.87’’
-Fi4NB: 271.3 x 80 x 87.8mm / 10.68’’ x 3.15’’ x 3.46’’
Mounting Bracket-Fi4N: Bracket not included
-Fi4NB: Bracket included
