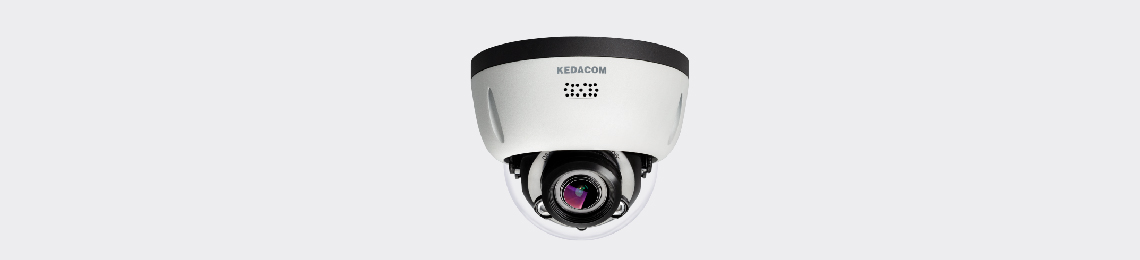

IPC2833-Fi4N-SIR50-Z6022 8.0MP Human Recognitive HD Network Vandal-Proof Varifocal IR Semi Dome
Excellent Image Quality
  • 8.0 Megapixel 1/2.8'' progressive scan CMOS sensor

  • High definition and smooth picture, 3840 x 2160@20fps

  • H.265 video codec, saves up to 50% bandwidth and storage

  • Ultra low illumination, 0.005lux with color picture

  • 120dB Ultra WDR

  • 3D noise reduction / Auto Iris / HLC

Intelligent Functions
  • Motion detection / Tampering / Guard line / Defocus / Scene change / Enter guard area / Exit guard area / Object left / Object removal / Gathering / Audio surge


Recognitive Functions
  • Target capturing

  • Bi-directional people counting

  • Face Intelligence Exposure

Vandal-Proof
  • Above IK10 @ 50J collision energy

Integrated High Efficiency IR
  • Industrial IR LED with long operational lifespan

  • 20 ~ 50m IR distance

  • Smart IR function

A Variety of Installation Modes
  • Supports 90°, 180°, 270° image rotation

  • Motorized varifocal lens

Abundant Functions and Features
  • Micro SD card slot, supports Automatic Network Replenishment (ANR)

  • Bi-directional audio / alarm in and out / RS485 / Built-in Mic & Speaker

  • 2 channel audio input simultaneously

  • Up to 3 Multi-stream

  • PoE

  • IP67


IPC2833-Fi4N-SIR50-Z6022
Camera
Image Sensor 1/2.8’’   progressive scan CMOS
Pixels8.0   Megapixel
Min. Illumination Color:   0.005lux@ (F1.6,  AGC ON)
B/W: 0.0005lux@ (F1.6,    AGC ON); 0lux  with IR
Shutter Speed1   ~ 1/30,000s
Day / NightAuto   (ICR) / Color / B/W
Wide Dynamic RangeUltra   WDR, >=120dB
S/N Ratio>=58db
White BalanceAuto   / Manual
Gain ControlAuto   / Manual
Backlight CompensationOff   / BLC / WDR / HLC
Lens
Mount TypeΦ14
Auto IrisDC   drive
Focal Length-Z6022:   6-22mm @F1.6~F2.8 motorized varifocal lens
Focus ControlManual   / Semi-Automatic / Auto
Angle of ViewHorizontal:17.6°(T)~42.9°(W),Vertical:9.7°(T)~23.4°(W)
Adjustment RangePan:   -120° ~ +120° / Tilt: 0° ~ 90°
Infrared
IR Distance20   ~ 50m
IR IntensitySmart   IR
Video
CompressionSmart   265 / H.265(Main Profile) / H.264(BaseLine Profile/Main Profile/High Profile)   /MJPEG
Image ResolutionMain stream:   3840×2160
Secondary stream: 720P
Frame RateMain stream:   3840×2160@20fps
Secondary stream: 720P@25fps
Bitrate32kbps   ~ 16Mbps
Bitrate ControlVBR   / CBR
Multi-streamSupported
CaptionDate   and time / Alarm / Customized
Privacy MaskingUp   to 4 zones
Motion DetectionUp   to 4 zones
Video FreezeSupported
ROISupported
Digital Noise Reduction3D   noise reduction
Digital DefogSupported
Image FlipFlip   / Mirror / Rotation at 90°,180°,270°
Audio
CompressionG.711a   / G.711u / ADPCM / G.722 / G.722.1c / G.726
Bitrate32kbps   ~ 64kbps
Audio FunctionBi-directional   audio / AEC / Mixed audio recording / Dumb / Mute
Network
Network ProtocolsTCP/IP, UDP, HTTP, HTTPS, DHCP,   DNS/DDNS, RTP/RTCP, RTSP, PPPoE, FTP,IGMP, UPnP, 802.1x, NAT, QoS, SMTP,   IPv4, IPv6 (optional)
User InterfaceIPC Control   (IE, Firefox, Chrome)
Max. User AccessMax.   20 Users (includes 2 internal)
Application ProgrammingONVIF   (Profile S, Profile G), GB/T 28181-2016, API, CGI
Automatic Network Replenishment (ANR)Supported
Recognitive Functions
Target DetectionPerson,   Face
Captured PicturePerson,   Face
People CountingBi-directional
Face EnhancementFace   Intelligence Exposure
Alarm
Alarm TriggersAlarm   input / Network disconnect / Disk full / Disk error
IntelligentMotion   detection / Tampering / Guard line / Defocus / Scene change / Enter guard   area / Exit guard area / Object left / Object removal / Gathering / Audio   surge
Alarm   EventsAlarm   report / Recording / Text overlay / Snapshot / External output / Email notice   / Acoustic alarm
Interfaces
Ethernet10/100M,   RJ45 interface
Audio In / Out1×Line In, 1×Line   Out, 1 x Built-in Mic in, 1 x Speaker
Control1   x RS485
Alarm In / Out2   x Input / 1 x Output
Memory SlotMicro   SD card slot, supports up to 256GB
Environmental
Operating Temperature -40°C ~ 70°C / -40°F ~ 158°F
Operating Humidity 10%   ~ 95%,No condensation
Protection LevelIP67,   IK10
Electrical
Power 12V   DC ± 10% / PoE (IEEE802.3af)
Power ConsumptionMax.   12W
Mechanical
Weight 0.71   kg / 1.57lb (Gross Weight)
DimensionsΦ122× 99.6mm   / Φ4.8’’ x 3.92’’
