NVR2860E-08016A | NVR2860E-08032A | NVR2860E-08048A | NVR2860E-08064A | |
Video/Audio Input | ||||
IP Camera Input | 16 channel | 32 channel | 48 channel | 64 channel |
Resolution | 8MP(4K), 6MP, 5MP, 4MP, 3MP, 1080p, UXGA, 960p, 720p, XGA, SVGA, D1, CIF, QCIF | |||
Compression | H.265 / H.264 | |||
Protocols | Onvif, RTSP, KEDACOM | |||
Bit rate | 64kbps ~ 16384kbps | |||
Incoming Bandwidth | 160Mbps | 320Mbps | 320Mbps | 320Mbps |
Live Viewing | ||||
Local Display | 1 x HDMI, 1 x VGA, simultaneously output different content | |||
Multi Screen Display Local monitor (Main / Secondary): | 1, 3, 4, 9, 15, 16, 1+4, 1+8, 1+9, 1+15, 1/1, 2/1, 4/1, 9/1, 15/1,16/1, 1+4/1, 1+8/1, 1+9/1, 1+15/1, 4/9, 9/4, 9/9 | 1, 3, 4, 9, 15, 16, 25, 36, 1+4, 1+8, 1+9, 1+15, 1/1, 2/1, 4/1, 9/1, 15/1, 16/1, 36/1, 1+4/1, 1+8/1, 1+9/1, 1+15/1, 4/9, 9/4, 9/9, 16/16 | 1, 3, 4, 9, 15, 16, 25, 36, 48, 1+4, 1+8, 1+9, 1+15, 1/1, 2/1, 4/1, 9/1, 15/1, 16/1, 36/1, 48/1, 1+4/1, 1+8/1, 1+9/1, 1+15/1, 4/9, 9/4, 9/9, 16/16 | 1, 3, 4, 9, 15, 16, 25, 36, 48, 64, 1+4, 1+8, 1+9, 1+15, 1/1, 2/1, 4/1, 9/1, 15/1, 16/1, 36/1, 48/1, 64/1, 1+4/1, 1+8/1, 1+9/1, 1+15/1, 4/9, 9/4, 9/9, 16/16 |
Multi Screen Display Client | up to 4 screens simultaneously: 1, 3, 4, 9, 12, 16, 20, 25, 30, 36, 42, 49, 56, 63, 64 1+5, 1+7, 1+8, 1+9, 1+11, 1+12, 1+13, 1+15, 1+16, 1+33, 1+47, 1+48 | |||
E-Map | Live Viewing in E-Map (NVR Station) | |||
Function | E-PTZ / Scheme / Polling / TV-Wall (optional with decoder) / Virtual channel | |||
Recording | ||||
Resolution | 8MP(4K), 6MP, 5MP, 4MP, 3MP, 1080p, UXGA, 960p, 720p, XGA, SVGA, D1, CIF, QCIF | |||
Mode | Manual / Continuous / Schedule / Event (Pre / Post) | |||
Event Trigger | Supported | |||
Tag | Supported | |||
Reliability | Automatic Network Replenishment (ANR) | |||
Search & Playback | ||||
Search Mode | Date and time (Calendar) / Event | |||
Resolution | 8MP(4K), 6MP, 5MP, 4MP, 3MP, 1080p, UXGA, 960p, 720p, XGA, SVGA, D1, CIF, QCIF | |||
Playback (Local Monitor) | 4 x 4K@30fps / 16 x 1080p@30fps | |||
Playback (Client) | up to 16 x 4K@30fps | |||
Synchronize Playback (Local Monitor) | 4 x 4K@30fps / 16 x 1080p@30fps | |||
Synchronize Playback (Client) | 4 x 4K@30fps | |||
Function | Slow forward / Fast forward / Loop / Single frame / E-PTZ / Slice playback | |||
Storage | ||||
Max. Internal HDDs | 8 x 3.5’’ HDD | |||
Max. 64TB (up to 8TB/each) | ||||
RAID | RAID 0/1/5/6/10 | |||
External | IPSAN (iSCSI), up to 10 x IPSAN, Max. 100T (optional) | |||
e-SATA | ||||
Function | Disk group / Quota / Disk dormancy | |||
Audio | ||||
Compression | G.711a / G.711u / ADPCM / G.722 / G.722.1c / G.726 | |||
Bit rate | 32kbps ~ 64kbps | |||
Audio Function | Bi-directional audio / Dumb / Mute / Broadcasting | |||
Alarm | ||||
Service Alarm Triggers | Alarm input / Video lost / Motion detection / Tampering / Guard line / Defocus / Scene change / Enter guard area / Exit guard area / Object left / Object removal / Gathering / Audio surge | |||
System Alarm Triggers | Device disconnected / No disk / Disk error / IP Address conflict / Network disconnected / Low speed / Insufficient recording space / MAC address conflict / Insufficient snapshot space | |||
Alarm Events | Snapshot / Recording / PTZ preset / Buzzer / Email / Link to Client / Alarm caption / Live view in first window / Link to TV Wall / Link to secondary screen / Full screen viewing | |||
System | ||||
Operating System | Embedded Linux | |||
User Management | Admin / User | |||
Log Management | User login / User operation / Alarm / Backup / Update | |||
Application Programming | NVR Station SDK | |||
Network | ||||
Network Protocols | TCP/IP, UDP, HTTP, DHCP, DNS/DDNS, RTP/RTCP, RTSP, PPPoE, FTP, SNTP, VSIP, UPNP, SMTP, IPv4, IPv6 (optional) | |||
Viewer Software | CMS (NVR Station) / Web / iOS app / Android app | |||
Max. User Access | 64 Users | |||
Output Bandwidth | 256Mbps | |||
Function | NAT / Socks5 / Multiple network access / Packet loss recovery / Auto network organizing | |||
Network Test | Supported | |||
Hot Backup | N+1 | |||

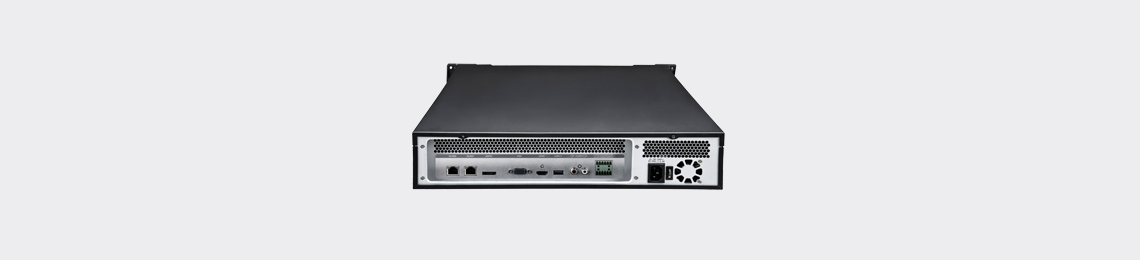

Interfaces | ||||
Ethernet | 2 x Gigabit network port, RJ45 interface | |||
Video Out | 1 x HDMI (up to 3840 x 2160@60Hz) | |||
1 x VGA (up to 1920 x 1080@60Hz) | ||||
Audio In / Out | 1 x RCA Line in / 1 x RCA Line out | |||
Alarm In / Out | 2 x Inputs / 2 x Outputs | |||
Control | 2 x RS485 | |||
USB | 2 x USB2.0, 1 x USB3.0 | |||
e-SATA | 1 x e-SATA | |||
Environmental | ||||
Operating Temperature | -10°C ~ 55°C / 14°F ~ 131°F | |||
Operating Humidity | 10% ~ 85% | |||
Electrical | ||||
Power | 100 ~ 240V AC, 50 ~ 60Hz | |||
Power Consumption | Max. 20W (HDD not included) | |||
Mechanical | ||||
Weight | 12.5kg / 27.5lb (HDD not included) | |||
Dimensions | 443 x 561 x 88mm / 16.93’’ x 22.09’’ x 3.46’’ |
