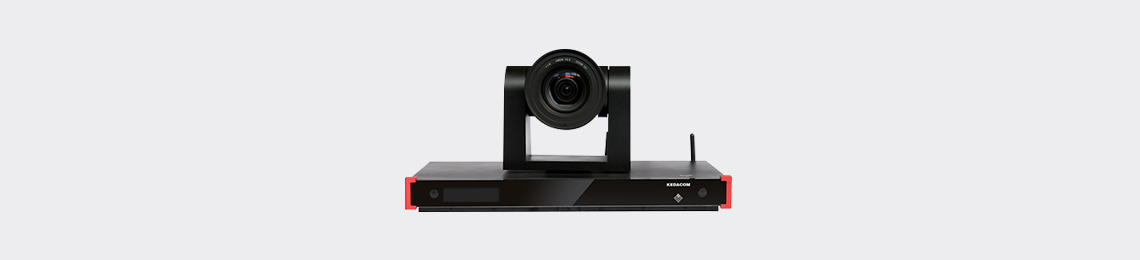

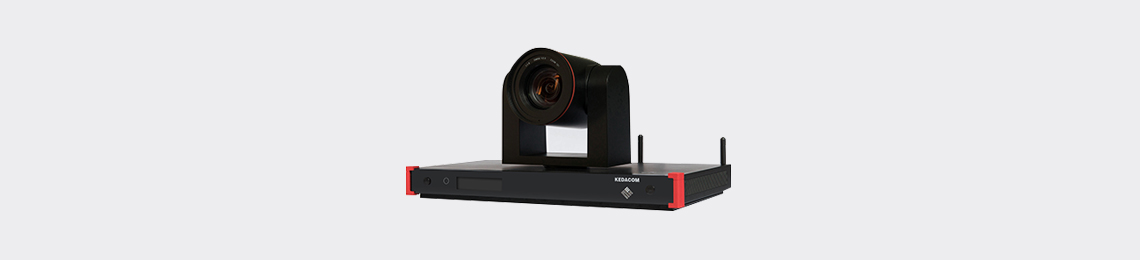

SKY 320 All-In-One Video Conferencing Endpoint

All-In-One design, Plug and Play

Integrated codec, intelligent PTZ + Panoramic dual camera

Support up to 4K@15FPS ability for secondary stream encoding and decoding

USB configuration, easy to install, use and maintain

Support TV / wall / upside-down mount

Optional wireless casting transmitter, one press to cast the PC content on display or to remote conferencing


Professional audio and video processing, High-end audio-visual experience

12x / 5x optical zoom, 4K UHD video

Excellent ISP algorithm, optimize the video effect especially under low illumination conditions

Built-in mic, 6m audio pickup, AEC / ANS / AGC process, wideband audio protocol


Excellent network adaptability and security mechanism

Supports H.265 protocol, consumes less bandwidth, 8Mbps to achieve 4K resolution encoding and decoding

Supports Intelligent Packet Loss Recovery, dynamic rate adjustment, automatic QoS setting, forward error correction and other network optimization mechanisms, which can fully optimize the video communication effect in the congestion network environment

Standard H.460 for NAT and firewall traversal

Proprietary encryption protocols GMSSL, SM1, SM2, SM3, SM4, independently controllable and secure

Multiple encryption mechanism: H.235 conference encryption, 256 bit AES encryption, TLS and SRTP protocol, User authentication and role-based authorization, etc.


Open, converged, High interoperability

Standard H.323 / SIP / RTC, interoperable with standard endpoints and infrastructures from third-party mainstream vendors

Provide API, implementing flexible integration with third-party platforms


SKY 320
Sub Models1080P30-12x-W1080P30-12x1080P30-5x-W1080P30-5x
System StandardsH.323, SIP, RTC
H.225, H.235, H239, H.245, H.281, H.460
Video StandardsH.264, H.264 High Profile, H.265, H.263, H.261, MPEG-4
Audio StandardsG.711, G.719, G.722, G.722.1 Annex C, G.728, G.729, MPEG4-AAC (LC / LD), Opus
Network ProtocolsTCP / IP, Telnet, HTTPS, HTTP, FTP, DHCP, RTP / RTCP, NTP, PPPoE, 802.11a/b/g/n/acTCP / IP, Telnet, HTTPS, HTTP, FTP, DHCP, RTP / RTCP, NTP, PPPoETCP / IP, Telnet, HTTPS, HTTP, FTP, DHCP, RTP / RTCP, NTP, PPPoE, 802.11a/b/g/n/acTCP / IP, Telnet, HTTPS, HTTP, FTP, DHCP, RTP / RTCP, NTP, PPPoE
IP ProtocolsIPv4 and IPv6 dual stack
Conference Bitrate64Kbps ~ 8Mbps
Video ResolutionVideo:
4K (3840x2160), 1080p (1920 x 1080), 720p (1280 x 720), W4CIF (1024 x 576), 4CIF (704 x 576), WCIF (512 x 288), CIF (352 x 288)
Content:
4K (3840x2160), 1080p (1920 x 1080), 720p (1280 x 720), UXGA  (1600 x 1200), WSXGA+ (1680 x 1050), WSXGA (1440 x 900), SXGA (1280 x 1024), WXGA (1280 x 800), XGA (1024 x 768)
Encode Capacity1080P30 + 4K15
Decode Capacity1080P60 + 4K15
Built-in Camera Optical zoom: 12x
Sensor: 1 / 2.8" CMOS, 2 MP
Horizontal view Angle: 72.5°
Pan range: ±175°
Tilt range: -90° ~ +51.3°, -90°  standby (Exclusive design)
Adjustable camera parameter
Automatic White Balance (AWB), Automatic Exposure (AE), Automatic Focus (AF)
Optical zoom: 5x
Sensor: 1 / 2.8" CMOS, 2 MP
Horizontal view Angle: 72.5°
Pan range: ±175°
Tilt range: -90° ~ +51.3°, -90°  standby (Exclusive design)
Adjustable camera parameter
Automatic White Balance (AWB), Automatic Exposure (AE), Automatic Focus (AF)
Video FeaturesSingle screen dual / triple-display
Adjustable video parameter
VGA  loopback when power off
Supports camera preset snapshot and preview
Audio FeaturesSampling frequency: 48 kHz
Acoustic Echo Cancellation (AEC)
Acoustic Noise Suppression (ANS)
Automatic Gain Control (AGC)
Automatic lip synchronization
Mute and dumb
Dual-streamH.239 / BFCP
Adjustable bandwidth ratio
Wireless content sharing by SkyShare software or NexPresence transmitter
Network FeaturesEmbedded proxy for NAT / firewall transversal
Intelligent Packet Loss Recovery (IPLR)
Forward Error Correction (FEC)
DiffServ, IP Precedence (Quality of service [QOS])
IP conflict detection
Automatic PPPoE redial
Dynamic rate adjustment
OSD Caption / Logo / BannerConfigurable OSD caption / logo / banner
Local images and custom text can be set as OSD logo / banner
OSD caption can be sent as short messages to endpoints or multipoint control units
OSD caption can be scrolled
Configurable OSD banner background color, font sizes and fonts
Security Features

Embedded OS, Linux 3.18.24

H.235 conference encryption

256 bit AES encryption
TLS and SRTP protocol
Conference password authentication
User authentication and role-based authorization
Advanced setting authentication
Gateway password-protected
HTTPS
Physical privacy protection, camera turns -90° while standby (Exclusive design)
Management MethodsRemote control
Web interface
OLED display screen on the device
Maintenance FunctionsEvent logs can be managed
Factory settings restoration
Loop / image / audio tests
Real-time video / audio bitrate display
Address book and configuration file importing / exporting
Conference FunctionsPoint-to-point / multiple conferences
Join-in conference / administrator / speaker / chime-in request
Calling by E.164 ID, alias and IP addresses
Video InterfacesInput: 2 x Built-in camera
1 x HDMI 2.0
Output: 2 x HDMI 2.0 (support CEC)
Audio InterfacesInput: Built-in mic
1 x mini XLR, 1 x Digital mic, 1 x 3.5mm
Output: 1 x 3.5mm, 2 x HDMI support audio
Control Interfaces1 x RJ45
1 x IR interface
Network Interfaces1 x 10 / 100 / 1000M Ethernet, RJ45 interface
Built-in WIFI module
1 x 10 / 100 / 1000M Ethernet, RJ45 interface1 x 10 / 100 / 1000M Ethernet, RJ45 interface
Built-in WIFI module
1 x 10 / 100 / 1000M Ethernet, RJ45 interface
Other Interfaces1 x USB 2.0 (USB configuration, USB recording)
1 x FXO
1 x TOUCH
EnvironmentalOperating temperature: 0°C ~ 55°C / 32 ~ 131
Operating humidity: 10% ~ 90%
Atmospheric pressure: 70 ~ 106 kPa
ElectricalPower: DC 12V
Power consumption: Max. 48W
MechanicalNet weight: 3.9kg / 8.60lb
Package weight: 8.5kg / 18.74lb
Endpoint dimensions: 195 x 375 x 205mm / 7.68" x 14.76" x 8.07"
Package dimensions: 350 x 515 x 365mm / 13.78" x 20.28" x 14.37"
