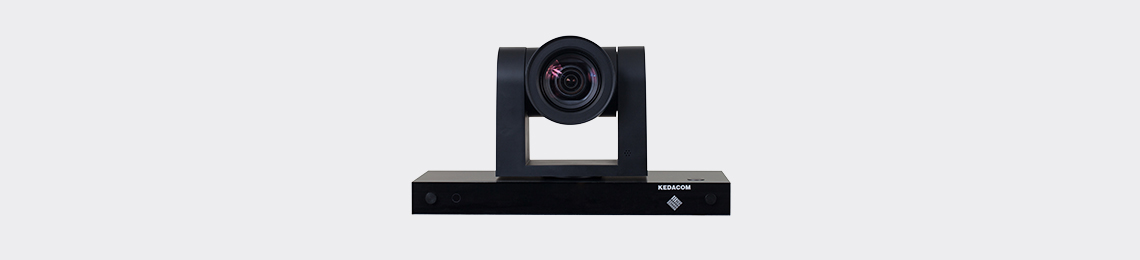

H650 All-In-One Video Conferencing Terminal
ALL-IN-ONE, Plug and Play

  • Integrated design, built-in PTZ camera

  • Easy to install, use and maintain

  • Standard with bracket, support TV mount / wall mount

  • Standard packaged with TrueVoc 300D microphone

Professional audio and video processing, High-end audio-visual experience

  • 5x / 12x optical zoom, Dual 1080p streaming, dual video output

  • Excellent ISP algorithm, optimize the video effect especially under low illumination conditions

  • AEC / ANS / AGC process, wideband audio protocol

Excellent network adaptability and security mechanism

  • Support intelligent anti-packet loss, automatic QoS setting, forward error correction and other network optimization mechanisms, which can fully optimize the video communication effect in the congestion network environment

  • Standard H.460 for NAT and firewall traversal

  • Embedded OS, high security, away from virus and hackers’attack.

  • Multiple encryption mechanism: H.235 conference encryption, AES encryption, user authentication and role-based authorization, conference password authentication, advanced setting authentication

Abundant functions and features

  • Privacy design, -90°  standby (Exclusive design)

  • Automatic dual stream source detection

  • Real-time recording / monitoring / preview of local and remote video and audio through web



　H650
Sub Models-B-C-LB
System StandardsH.323, SIP
H.225, H.235, H239, H.245, H.281, H.460
Video StandardsH.261, H.263, H.263+, H.264, H.264 High-Profile
Audio StandardsG.711, G.719, G.722, G.722.1 Annex C / Polycom Siren14TM, G.728, G.729, MP3
Network ProtocolsTCP / IP, Telnet, HTTP, FTP, SNMP, DHCP, RTP / RTCP, NTP, PPPoE
Conference Bitrate64 Kbps to 8 Mbps
Video ResolutionVideo:
1080p (1920 x 1080), 720p (1280 x 720), 4CIF (704 x 576), CIF (352 x 288)
Content:
1080p (1920 x 1080), 720p (1280 x 720), UXGA (1600 x 1200), WSXGA+ (1680 x 1050), WSXGA (1440 x 900), SXGA (1280 x 1024), WXGA (1280 x 800), XGA (1024 x 768), SVGA (800 x 600), VGA (640 x 480)		Video:
1080p (1920 x 1080, decode only), 720p (1280 x 720), 4CIF (704 x 576), CIF (352 x 288)
Content:
1080p (1920 x 1080, decode only), 720p (1280 x 720), UXGA (1600 x 1200), WSXGA+ (1680 x 1050), WSXGA (1440 x 900), SXGA (1280 x 1024), WXGA (1280 x 800), XGA (1024 x 768), SVGA (800 x 600), VGA (640 x 480)		Video:
1080p (1920 x 1080), 720p (1280 x 720), 4CIF (704 x 576), CIF (352 x 288)
Content:
1080p (1920 x 1080), 720p (1280 x 720), UXGA (1600 x 1200), WSXGA+ (1680 x 1050), WSXGA (1440 x 900), SXGA (1280 x 1024), WXGA (1280 x 800), XGA (1024 x 768), SVGA (800 x 600), VGA (640 x 480)
Encode Capacity1080p @ 30 fps + 1080p @ 30 fps / UXGA  @ 30 fps720p @ 60 fps + 720p @ 60 fps / UXGA  @ 30 fps1080p @ 30 fps + 1080p @ 30 fps / UXGA  @ 30 fps
Decode Capacity1080p @ 60 fps + 1080p @ 60 fps / UXGA  @ 60 fps
Built-in Camera Optical zoom: 12x
Sensor: 1 / 2.8" CMOS, 2 MP
Horizontal view Angle: 72.5°
Pan range: ±160°
Tilt range: -90° ~ +50°, -90°  standby (Exclusive design)
Adjustable camera parameter
Automatic White Balance (AWB), Automatic Exposure (AE), Automatic Focus (AF)		Optical zoom: 5x
Sensor: 1 / 2.8" CMOS, 2 MP
Horizontal view Angle: 72.5°
Pan range: ±160°
Tilt range: -90° ~ +50°, -90°  standby (Exclusive design)
Adjustable camera parameter
Automatic White Balance (AWB), Automatic Exposure (AE), Automatic Focus (AF)
Video FeaturesSingle screen dual / triple display
Dual screen dual display
Picture in Picture, Picture out Picture
Audio FeaturesSampling frequency: 8 kHz to 48 kHz
Acoustic Echo Cancellation (AEC)
Acoustic Noise Suppression (ANS)
Automatic Gain Control (AGC)
Automatic lip synchronization
Mute and dumb
Dual-streamH.239 / BFCP
Adjustable bandwidth ratio
Wireless content sharing by SkyShare software
Network FeaturesEmbedded proxy for NAT / firewall transversal
Intelligent Packet Loss Recovery (IPLR)
Forward Error Correction (FEC)
DiffServ, IP Precedence (Quality of service [QOS])
IP conflict detection
Automatic PPPoE redial
OSD Caption / Logo / BannerConfigurable OSD caption / logo / banner
Local images and custom text can be set as OSD logo / banner
OSD caption can be sent as short messages to terminals or multipoint control units
OSD caption can be scrolled
Configurable OSD banner background color, font sizes and fonts
Security Features

Embedded OS, Linux 2.6.37

H.235 conference encryption

AES encryption
Conference password authentication
User authentication and role-based authorization
Advanced setting authentication
Gateway password-protected
ManagementRemote control
Configuration can be performed by web GUI
Event logs can be managed
Loop / image / audio tests
Operational state detection
Real-time video / audio bitrate display
Address book importing / exporting
Conference FunctionsPoint-to-point / multiple conferences
Join-in meeting / chairman / speaker / chime-in request
Calling by E.164 ID, alias and IP addresses
Video InterfacesInput: 1 x Built-in camera, 1 x VGA (dual stream)
Output: 1 x VGA (dual stream), 1 x HDMI (main stream)
Audio InterfacesInput: 1 x RJ11 digital Mic, 1 x 3.5mm
Output: 1 x HDMI (with audio), 1 x 3.5mm
Dual channel stereo
Control Interfaces1 x RS232
IR remote control
Network Interfaces1 x 10 / 100M Ethernet
Other Interfaces2 x USB (Hardware ready)
EnvironmentalOperating temperature: 0°C ~ 45°C / 32℉ ~ 113℉
Operating humidity: 10% ~ 90%
Atmospheric pressure: 70 ~ 106 kPa
ElectricalPower: DC 12V ~ 14V
Power consumption: Max. 20W
MechanicalWeight: 2.5kg / 5.51lb
Dimensions: 161 x 288 x 139mm / 6.34" x 11.34" x 5.47"
