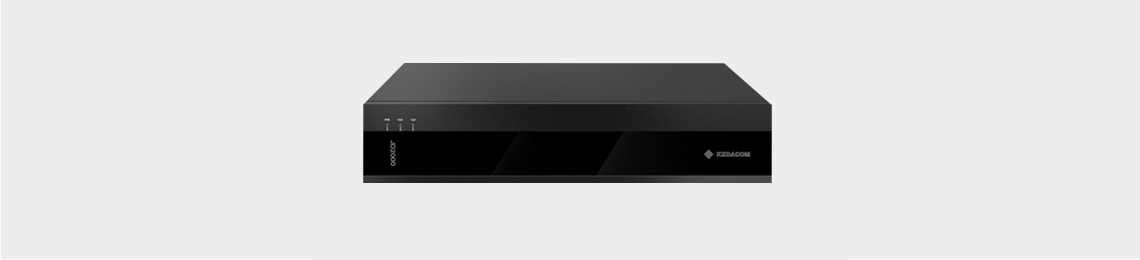

VRS2100-G Multimedia Server
Recording of digital audio and video
  • H.323 and SIP protocols
  • Receives digital audio and video from the MCU and terminals avoiding  image quality loss due to secondary codec
Live conference
  • Users can view live broadcast conferences no need to wait for the end of the recording
  • Provide the live broadcast scheduling function
Multi-stream recording and playback
  • Support the recording and playback of multiple streams
  • Users can customize the video layout style
View conferences on demand
  • Multiple playback methods
  • Conferences can be played back through web browser, Windows Media Player or meeting conference terminal



 VRS2100-G
System StandardsH.323, SIP
H.225, H.245, H.239
Video StandardsH.261, H.263, H.263+, H.264, H.264 High-Profile
Audio StandardsG.711, G.719, G.722, G.722.1 Annex C / Polycom Siren14TM, G.728, G.729, MP3
Network ProtocolsTCP/IP, FTP, RTP/RTSP, HTTP, SNMP
Conference Bitrate64 Kbps to 8 Mbps
System Capacity2 x 2TB HDD storage
Up to 2000 hours video recording @ 2Mbps
15 groups of video recording / playback, 5 groups of live broadcast, 200 users playback / live broadcast
Video ResolutionVideo:
1080i/p (1920 x 1080), 720p (1280 x 720), 4CIF (704 x 576), CIF (352 x 288), QCIF (176 x 144)
Content:
UXGA (1600 x 1200), SXGA (1280 x 1024), WXGA (1280 x 800), XGA (1024 x 768), SVGA (800 x 600), VGA (640 x 480)
Content RecordingSupports the recording of broadcast figures and terminal-applied conference sites in multipoint conferences and the recording of local figures and multiple streams
VOD and PlaybackConferences can be played back in multiple ways, such as by a web page browser, the Windows Media Player, and a Meeting Conferencing Terminal.
Content ManagementContents can be classified and published and are only available to authorized users
Security FeaturesAES encryption
User authentication and role-based authorization
NAT and firewall traversal
ManagementLogs, remote upgrade / configuration, operating status monitoring
SNMP
Network Interfaces3 x 10/100/1000M network ports
EnvironmentalGround resistance: ≤5Ω
Operating temperature: 0°C ~ 45°C / 32℉ ~ 113℉
Operating humidity: 10% ~ 90%
Atmospheric pressure: 70 ~ 106kPa
ElectricalPower: Dual redundant power supply, 100 ~ 240V AC, 50 ~ 60Hz
Power consumption: Max. 250W
MechanicalWeight: <10kg / 22lb
Dimensions: 93 x 443 x 566mm / 3.66" x 17.44" x 22.28"
-->
