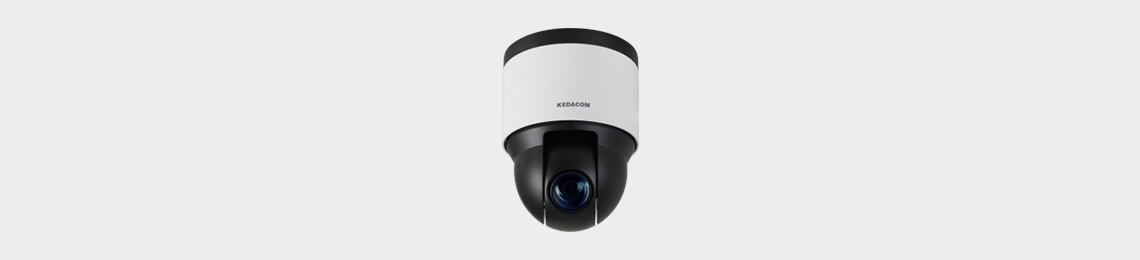

IPC421-E230 2.0MP Starlight & Ultra WDR HD 30x Network Speed Dome Camera
Excellent Image Quality
  • 2.0 Megapixel 1/2.8’’ progressive scan CMOS sensor
  • High definition and smooth picture, 1080p@60fps
  • H.265 video codec, saves up to 50% bandwidth and storage
  • Low illumination, 0.01lux with color picture
  • 120dB Ultra WDR
  • HLC / 3D noise reduction
Intelligent Functions
  • Motion detection / Tampering / Guard line / Enter guard area / Exit guard area / Object left / Object removal / Gathering / Audio surge
Long Operation Lifespan
  • Industrial components, withstands operation temperatures of -40°C ~ 70°C
A Variety of Installation Modes
  • Indoor ceiling / Indoor recessed
Abundant Functions and Features
  • SD card slot, supports Automatic Network Replenishment (ANR)
  • Up to 3 video streams
  • Bi-directional audio / alarm in and out / video out / RS485
  • Built-in O-sensor
  IPC421-E230-N0
Camera
Image Sensor  1/2.8’’ Progressive Scan CMOS
Pixels 2.0 Megapixel
Min. Illumination  Color: 0.01lux @ (F1.6, AGC ON)
B/W: 0.001ux @ (F1.6, AGC ON)
Shutter Speed 1 ~ 1/30,000s
Day / Night Auto (ICR) / Color / B/W
Wide Dynamic Range Ultra WDR, >=120dB
S/N Ratio >53dB
White Balance Auto / Manual
Gain Control Auto / Manual
Backlight Compensation Off / WDR / BLC / HLC
Lens
Focal Length 4.5 ~ 135mm, 30x
Zoom Speed Approx 3s (Optical)
Angle of View 67.8°~ 2.77° (Wide~Tele)
Min. Object Distance 300 ~ 1500mm (Wide~Tele)
Max. Aperture Ratio F1.6 (Wide) / F4.4 (Tele)
Focus Control Auto / Manual / Semi-Automatic
Pan and Tilt
Pan / Tilt Range 360° Endless / 0° ~ 90°
Pan / Tilt Speed Pan manual speed: 0.1° ~ 250°/s; Pan preset speed: 450°/s
Tilt manual speed: 0.1° ~ 150°/s; Tilt preset speed: 350°/s
Proportional Zoom Pan / Tilt speed can be adjusted automatically according to zoom multiples
Preset  256
Patrol 8 Patrols scheme, up to 32 presets per patrol
Pattern Scan 4 Scan paths, each path can record 10 minutes of operation path
Power-off Memory Power-off memory / Power-on recovery
Auto Guard Path / Preset / Mixed / Pan scan / Tilt scan / Frame scan / Random scan / Panorama scan
PT Limit Manual / Scan / Pan
3D Positioning  PTZ control with mouse click and drag
Electronic compass Built-in O-sensor
Video
Compression H.265 / H.264 / MJPEG
Image Resolution Main stream: 1080p
Secondary stream: D1
Frame Rate Main stream: 1080p@60fps
Secondary stream: D1@30fps
Bitrate 32kbps ~ 16Mbps
Bitrate Control VBR / CBR
Multi-Stream Supported
Caption Date and time / Alarm / Direction / Customized
Privacy Masking Up to 4 zones
Motion Detection Up to 4 zones
Video Freeze Supported
ROI Supported
Digital Noise Reduction 3D noise reduction
Digital Defog Supported
Image Flip Flip / Mirror
Audio
Compression G.711a / G.711u / ADPCM / G.722 / G.722.1c / G.726
Bitrate 32kbps ~ 64kbps
Audio Function Bi-directional audio / AEC / Mixed audio recording / Dumb / Mute
Network
Network Protocols TCP/IP, UDP, HTTP, DHCP, DNS/DDNS, RTP/RTCP, RTSP, PPPoE, FTP, VSIP, UPnP, 802.1x, NAT, QoS, SMTP, IPv4, IPv6 (optional)
User Interface IPC Control (IE, Firefox, Chrome)
Max. User Access Max. 10 Users (includes 2 internal)
Application Programming ONVIF (Profile S, Profile G), GB/T 28181-2011, API, CGI
Automatic Network Replenishment (ANR) Supported
Alarm
Alarm Triggers Alarm input / Network disconnect / Disk full / Disk error
Intelligent Motion detection / Tampering / Guard line / Enter guard area / Exit guard area / Object left / Object removal / Gathering / Audio surge
Alarm Events Alarm report / Recording / Text overlay / Snapshot / External output / Email notice / Acoustic alarm
Interfaces
Ethernet 10/100M, RJ45 interface
Audio In / Out 1 x Line in / 1 x Line out
Control 1 x RS485
Alarm In / Out 4 x Input / 2 x Output
Video Out 1 x BNC, 1.0V [p-p] / 75Ω
Memory Slot SD card slot, supports up to 128GB
Environmental
Operating Temperature -40°C ~ 70°C / -40°F ~ 158°F
Operating Humidity  10% ~ 95%
Electrical
Power  24V AC / 3A (Power adapter included)
Power Consumption Max. 45W
Mechanical
Weight  3 kg / 6.6lb (Net Weight)
Dimensions Φ165 × 220mm /  Φ6.50’’ x 8.66’’



Recommended Bracket

DM-C45

Speed dome in-ceiling mount bracket

DM-C47

Speed dome ceiling mount bracket

DM-C48

Speed dome ceiling mount bracket

DM-W48

Speed dome wall mount bracket
