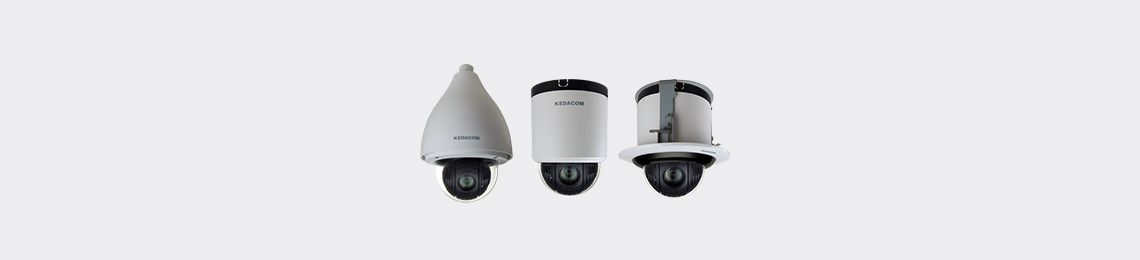

IPC421-F120 2.0MP Starlight & Ultra WDR HD 20x Network Speed Dome Camera
Excellent Image Quality
  • 2.0 Megapixel 1/2.8’’ progressive scan CMOS sensor
  • High definition and smooth picture, 1080p@30fps
  • H.265 video codec, saves up to 50% bandwidth and storage
  • Ultra low illumination, 0.003lux with color picture
  • 120dB Ultra WDR
  • HLC / 3D noise reduction
Intelligent Functions
  • Motion detection / Tampering / Guard line / Enter guard area / Exit guard area
Long Operation Lifespan
  • Industrial components, withstands operation temperatures of -40°C ~ 70°C
  • IP67, TVS 6000V lightning protection, surge protection and voltage transient protection (-N1)
A Variety of Installation Modes
  • Indoor ceiling / Indoor recessed / Outdoor
Abundant Functions and Features
  • SD card slot, supports Automatic Network Replenishment (ANR)
  • Up to 3 video streams
  • Bi-directional audio / alarm in and out / video out / RS485
  • Built-in O-sensor
  IPC421-F120(-N0, -N1)
Image Sensor  1/2.8’’ Progressive Scan CMOS
Pixels 2.0 Megapixel
Min. Illumination  Color: 0.003lux @ (F1.6, AGC ON)
B/W: 0.0003lux @ (F1.6, AGC ON)
Shutter Speed 1 ~ 1/30,000s
Day / Night Auto (ICR) / Color / B/W
Wide Dynamic Range Ultra WDR,120dB
S/N Ratio >53dB
White Balance Auto / Manual
Gain Control Auto / Manual
Backlight Compensation Off / WDR / BLC / HLC
Focal Length 4.7 ~ 94mm, 20x
Zoom Speed Approx 3s (Optical)
Angle of View 61°~ 3.64° (Wide~Tele)
Min. Object Distance 300 ~ 1000mm (Wide~Tele)
Max. Aperture Ratio F1.6 (Wide) / F3.5 (Tele)
Focus Control Auto / Manual / Semi-Automatic
Pan and Tilt
Pan / Tilt Range 360° Endless / 0° ~ 90°
Pan / Tilt Speed Pan manual speed: 0.1° ~ 250°/s; Pan preset speed: 450°/s
Tilt manual speed: 0.1° ~ 150°/s; Tilt preset speed: 350°/s
Proportional Zoom Pan / Tilt speed can be adjusted automatically according to zoom multiples
Preset  256
Patrol 8 Patrols scheme, up to 32 presets per patrol
Pattern Scan 4 Scan paths, each path can record 10 minutes of operation path
Power-off Memory Power-off memory / Power-on recovery
Auto Guard Path / Preset / Mixed / Pan scan / Tilt scan / Frame scan / Random scan / Panorama scan
PT Limit Manual / Scan / Pan
3D Positioning  PTZ control with mouse click and drag
Electronic compass Built-in O-sensor
Compression H.265 / H.264 / MJPEG
Image Resolution Main stream: 1080p
Secondary stream: D1
Frame Rate Main stream: 1080p@30fps
Secondary stream: D1@30fps
Bitrate 32kbps ~ 16Mbps
Bitrate Control VBR / CBR
Multi-Stream Supported
Caption Date and time / Alarm / Direction / Customized
Privacy Masking Up to 4 zones
Motion Detection Up to 4 zones
Video Freeze Supported
ROI Supported
Digital Noise Reduction 3D noise reduction
Digital Defog Supported
Image Flip Flip / Mirror
Compression G.711a / G.711u / ADPCM / G.722 / G.722.1c / G.726
Bitrate 32kbps ~ 64kbps
Audio Function Bi-directional audio / AEC / Mixed audio recording / Dumb / Mute
Network Protocols TCP/IP, UDP, HTTP, DHCP, DNS/DDNS, RTP/RTCP, RTSP, PPPoE, FTP, VSIP, UPnP, 802.1x, NAT, QoS, SMTP, IPv4, IPv6 (optional)
User Interface IPC Control (IE, Firefox, Chrome)
Max. User Access Max. 10 Users (includes 2 internal)
Application Programming ONVIF (Profile S, Profile G), GB/T 28181-2011, API, CGI
Automatic Network Replenishment (ANR) Supported
Alarm Triggers Alarm input / Network disconnect / Disk full / Disk error
Intelligent Motion detection / Tampering / Guard line / Enter guard area / Exit guard area
Alarm Events Alarm report / Recording / Text overlay / Snapshot / External output / Email notice / Acoustic alarm
Ethernet 10/100M, RJ45 interface
Audio In / Out 1 x Line in / 1 x Line out
Control 1 x RS485
Alarm In / Out 4 x Input / 2 x Output
Video Out 1 x BNC, 1.0V [p-p] / 75Ω
Memory Slot SD card slot, supports up to 128GB
Operating Temperature -40°C ~ 70°C / -40°F ~ 158°F
Operating Humidity  10% ~ 95%
Protection Level -N1(Outdoor): IP67, TVS 6000V lightning protection, surge protection and voltage transient protection
Power  24V AC / 3A (Power adapter included)
Power Consumption Max. 45W (Heater on)
Weight  -N0(Indoor): 3 kg / 6.6lb (Net Weight)
-N1(Outdoor): 6 kg / 13.2lb (Net Weight)
Dimensions -N0(Indoor): Φ165 × 220mm /  Φ6.50’’ x 8.66’’
-N1(Outdoor): Φ228 × 390mm /  Φ8.98’’ x 15.35’’


Recommended Bracket


Speed dome in-ceiling mount bracket


Speed dome ceiling mount bracket


Speed dome ceiling mount bracket


Speed dome ceiling mount bracket


Speed dome wall mount brack


Speed dome corner mount bracket


Speed dome column mount bracket


Speed dome wall mount bracket
