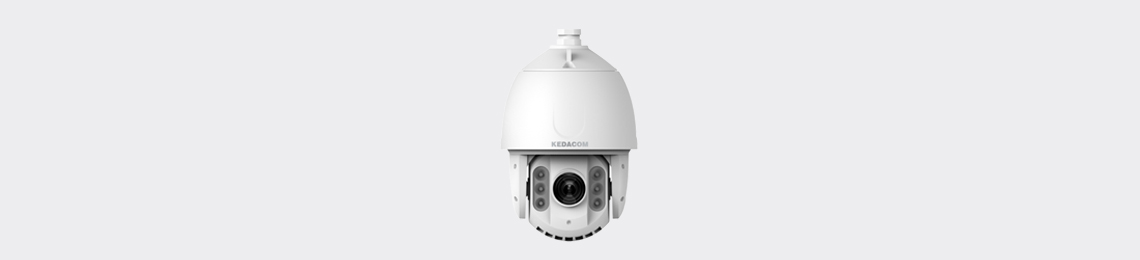

IPC427-D120-N 2.0MP Starlight HD 20x Speed Dome Camera
Excellent Image Quality
  • 2073600 Pixels 1/2.8’’ progressive scan CMOS sensor
  • High definition and smooth picture, 1920 x 1080@30fps
  • H.265 video codec, saves up to 50% bandwidth and storage
  • Ultra low illumination, 0.006lux with color picture
  • IR automatically adjusts
  • WDR / 3D noise reduction / HLC / BLC

Intelligent Functions
  • Motion detection / Tampering / Guard line / Enter guard area / Exit guard area

Long Operation Lifespan
  • Industrial components, withstands operation temperatures of -35°C ~65°C
  • IP66, TVS 6000V lightning protection, surge protection and voltage transient protection

Large Scale
  • 20x optical zoom
  • IR distance up to 180m

Abundant Functions and Features
  • Micro SD card optional, supports Automatic Network Replenishment (ANR)
  • Up to 3 Multi-stream
  • Bi-directional audio / alarm in and out
  • Built-in O-sensor
  • PoE
 IPC427-D120-N
Camera
Image Sensor 1/2.8’’ progressive scan CMOS
Pixels2073600 Pixels
Min. Illumination Color: 0.006lux @ (F2.8, AGC ON)
B/W: 0.0005lux @ (F2.8, AGC ON); 0lux with IR
Shutter Speed1 ~ 1/30,000s
Day / NightAuto (ICR) / Color / B/W
Wide Dynamic RangeDigital WDR
S/N Ratio>57dB
White BalanceAuto / Manual
Gain ControlAuto / Manual
Backlight CompensationOff / WDR / BLC / HLC
Lens
Focal Length5.2 ~ 100.4mm, 20x optical
Zoom SpeedApprox 3s (Optical)
Angle of View61°~ 3.64° (Wide~Tele)
Min. Object Distance1000 ~ 1500mm (Wide~Tele)
Max. Aperture RatioF2.8
Focus ControlAuto / Manual / Semi-Automatic
Infrared
IR LED6 pcs IR LED Array
IR Distance120 ~ 180m
IR IntensityAutomatically adjust according to zoom ratio
Pan and Tilt
Pan / Tilt Range360° Endless / -15° ~ 90° (Auto Flip)
Pan / Tilt SpeedPan manual speed: 0.1˚~160˚/s; Pan preset speed:160°/s
Tilt manual speed: 0.1˚~120˚/s ; Tilt preset speed: 120°/s
Proportional ZoomPan / Tilt speed can be adjusted automatically according to zoom multiples
Preset 256
Patrol8 Patrols scheme, up to 32 presets per patrol
Pattern Scan4 Scan paths, each path can record 10 minutes of operation path
Power-off MemoryPower-off memory / Power-on recovery
Auto GuardPath / Preset / Mixed / Pan scan / Tilt scan / Frame scan / Random scan / Panorama scan
PT LimitManual / Scan / Pan
3D Positioning PTZ control with mouse click and drag
Electronic compassBuilt-in O-sensor
Video
CompressionH.265 / H.264 / MJPEG
Image ResolutionMain stream: 1080p
Secondary stream: 720p
Frame RateMain stream: 1080p@30fps
Secondary stream: 720p@30fps
Bitrate32~16384Kbps
Bitrate ControlVBR / CBR
Multi-streamSupported
CaptionDate and time / Alarm / Direction / Customized
Privacy MaskingUp to 4 zones
Motion DetectionUp to 4 zones
Video FreezeSupported
ROISupported
Digital Noise Reduction3D noise reduction
Electronic DefogSupported
Image FlipFlip / Mirror
Audio
CompressionG.711a / G.711u / ADPCM / G.722 / G.722.1c / G.726
Bitrate32kbps ~ 64kbps
Audio FunctionBi-directional audio / AEC / Mixed audio recording / Dumb / Mute
Network
Network ProtocolsTCP/IP, UDP, HTTP, DHCP, DNS/DDNS, RTP/RTCP, RTSP, PPPoE, FTP, VSIP, UPnP, 802.1x, NAT, QoS, SMTP,SNMP, IPv4, IPv6 (optional)
User InterfaceIPC Control (IE, Firefox, Chrome)
Max. User AccessMax. 10 Users (includes 2 internal)
Application ProgrammingONVIF (Profile S, Profile G), GB/T 28181-2011, API, CGI
Automatic Network Replenishment (ANR)Supported
Alarm
Alarm TriggersAlarm input / Network disconnect / Disk full / Disk error
IntelligentMotion detection / Tampering / Guard line / Enter guard area / Exit guard area
Alarm EventsAlarm report / Recording / Text overlay / Snapshot / External output / Email notice / Acoustic alarm
Interfaces
Ethernet10/100M, RJ45 interface
Audio In / Out1 x Line in / 1 x Line out
Alarm In / Out2 x Input / 1 x Output
Memory SlotBuilt-in SD card (optional), supports up to 128GB
Environmental
Operating Temperature-35°C ~ 65°C / -31°F ~ 149°F
Operating Humidity 10% ~ 95%
Protection LevelIP66, TVS 6000V lightning protection, surge protection and voltage transient protection
Electrical
Power 24V AC / 3A (Power adapter not included) / PoE (IEEE802.3at)
Power ConsumptionMax. 25W (IR on)
Mechanical
Weight 6.6 kg / 14.55lb (Gross Weight)
DimensionsΦ222.7 × 339.5mm / Φ8.77" × 13.35"
