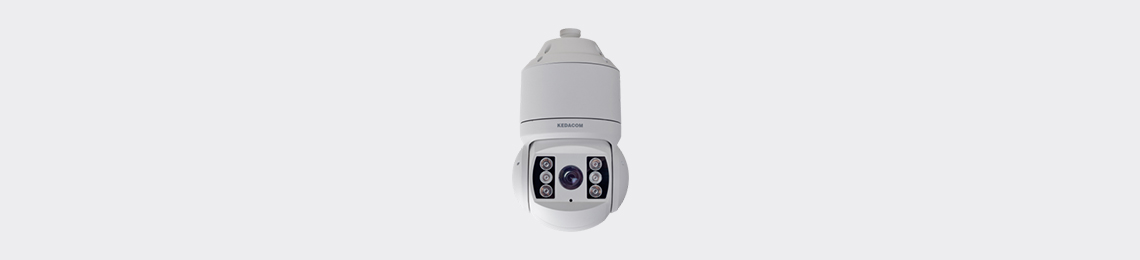

IPC415-E120-N 1.3MP HD 16x Network IR Speed Dome Camera
Excellent Image Quality
  • 1.3 Megapixel 1/3’’ progressive scan CMOS sensor
  • High definition and smooth picture, 960p@30fps
  • H.264 high profile video codec, saves up to 30% bandwidth and storage
  • Low illumination, 0.03lux with color picture
  • WDR support / IR automatically adjusts  / 3D noise reduction

Long Operation Lifespan
  • Industrial IR LED and components, withstands operation temperatures of -40°C ~ 70°C
  • IP66, TVS 6000V lightning protection, surge protection and voltage transient protection

Large Scale
  • 16x optical zoom
  • IR distance up to 150m

Abundant Functions and Features
  • SD card slot, supports Automatic Network Replenishment (ANR)
  • Dual-stream (960p+D1)
  • Bi-directional audio / alarm in and out
  IPC415-E120-N
Camera
Image Sensor  1/3’’ progressive scan CMOS
Pixels 1.3 Megapixel
Min. Illumination  Color: 0.03lux @ (F1.6, AGC ON)
B/W: 0.003lux @ (F1.6, AGC ON)
Shutter Speed 1/10 ~ 1/10,000s
Day / Night Auto (ICR) / Color / B/W
Wide Dynamic Range Digital WDR
S/N Ratio >55dB
White Balance Auto / Manual
Gain Control Auto / Manual
Backlight Compensation Off / BLC / WDR
Lens
Focal Length 6 ~ 96mm, 16x optical
Zoom Speed Approx 3s (Optical)
Angle of View 56°~ 3.6° (Wide~Tele)
Min. Object Distance 300 ~ 1000mm (Wide~Tele)
Max. Aperture Ratio F1.5 (Wide) / F3.6 (Tele)
Focus Control Auto / Manual / Semi-Automatic
Infrared
IR LED 6pcs IR LED Array
IR Distance 100 ~ 150m
IR Intensity Automatically adjust according to zoom ratio
Pan and Tilt
Pan / Tilt Range 360° Endless / -15° ~ 90° (Auto Flip)
Pan / Tilt Speed Pan manual speed: 0.1° ~ 175°/s; Pan preset speed: 193°/s
Tilt manual speed: 0.1° ~ 130°/s; Tilt preset speed: 160°/s
Proportional Zoom Pan / Tilt speed can be adjusted automatically according to zoom multiples
Preset  255
Patrol 8 Patrols scheme, up to 32 presets per patrol
Pattern Scan 4 Scan paths, each path can record 10 minutes of operation path
Power-off Memory Power-off memory / Power-on recovery
Auto Guard Patrol / Preset / Pattern Scan/ Pan scan / Tilt scan / Frame scan / Random scan / Panorama scan
PT Limit Manual / Scan / Pan
3D Positioning  PTZ control with mouse click and drag
Video
Compression H.264
Image Resolution Main stream: 960p
Secondary stream: D1
Frame Rate Main stream: 960p@30fps
Secondary stream: D1@30fps
Bitrate 64kbps ~ 8Mbps
Bitrate Control VBR / CBR
Dual-stream Supported
Caption Date and time / Alarm / Customized
Privacy Masking Up to 4 zones
Motion Detection Up to 4 zones
Video Freeze Supported
Digital Noise Reduction 3D noise reduction
Image Flip Flip / Mirror
Audio
Compression G.711a / G.711u / ADPCM / G.722
Bitrate 32kbps ~ 64kbps
Audio Function Bi-directional audio / AEC / Mixed audio recording / Dumb / Mute
Network
Network Protocols TCP/IP, UDP, HTTP, DHCP, DNS/DDNS, RTP/RTCP, RTSP, PPPoE, FTP, VSIP, IPv4, IPv6 (optional)
User Interface IPC Control (IE)
Max. User Access Max. 10 Users (includes 2 internal)
Application Programming ONVIF (Profile S), GB/T 28181-2011, API, CGI
Automatic Network Replenishment (ANR) Supported
Alarm
Alarm Triggers Motion detection / Alarm input
Alarm Events Alarm caption / Snapshot / External output
Interfaces
Ethernet 10/100M, RJ45 interface
Audio In / Out 1 x Line in / 1 x Line out
Alarm In / Out 2 x Input / 1 x Output
Memory Slot SD card slot, supports up to 128GB
Environmental
Operating Temperature -40°C ~ 70°C / -40°F ~ 158°F
Operating Humidity  10% ~ 95%
Protection Level IP66, TVS 6000V lightning protection, surge protection and voltage transient protection
Electrical
Power  24V AC / 3A (Power adapter included)
Power Consumption Max. 45W (IR on)
Mechanical
Weight  8 kg / 17.6lb (Gross Weight)
Dimensions Φ214× 379mm /  Φ8.43’’ x 14.92’’
