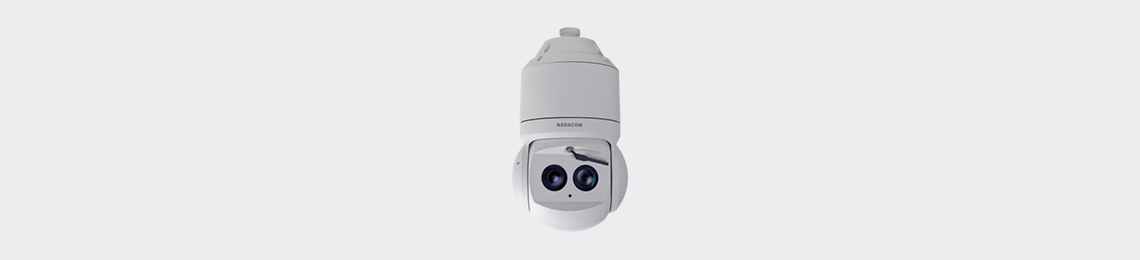

IPC425-F233-NL 2.0MP HD 33x Network Laser Speed Dome Camera
Excellent Image Quality
  • 2.0 Megapixel 1/3’’ progressive scan CMOS sensor

  • High definition and smooth picture, 1080p@60fps

  • H.265 video codec, saves up to 50% bandwidth and storage

  • Ultra low illumination, 0.003lux with color picture

  • 120dB Ultra WDR

  • Laser automatically adjusts

  • HLC / 3D noise reduction


Intelligent Functions
  • Motion detection / Tampering / Guard line / Enter guard area / Exit guard area / Object left / Object removal / Gathering / Audio surge


Long Operation Lifespan
  • Industrial components, withstands operation temperatures of -40°C ~ 70°C

  • IP66, TVS 6000V lightning protection, surge protection and voltage transient protection


Large Scale
  • 33x optical zoom

  • Laser distance up to 500m


Abundant Functions and Features
  • SD card slot, supports Automatic Network Replenishment (ANR)

  • Up to 3 Multi-stream

  • Bi-directional audio / alarm in and out / video out / RS485

  • Built-in O-sensor

  • Wiper



 IPC425-F233-NL
Camera
Image Sensor 1/3’’ progressive scan CMOS
Pixels2.0 Megapixel
Min. Illumination Color: 0.003lux @ (F1.6, AGC ON)
B/W: 0.0003lux @ (F1.6, AGC ON); 0lux with IR
Shutter Speed1 ~ 1/30,000s
Day / NightAuto (ICR) / Color / B/W
Wide Dynamic RangeUltra WDR, >=120dB
S/N Ratio>55dB
White BalanceAuto / Manual
Gain ControlAuto / Manual
Backlight CompensationOff / WDR / BLC / HLC
Lens
Focal Length4.5 ~ 148.5mm, 33x optical
Zoom SpeedApprox 3s (Optical)
Angle of View67.8°~ 2.34° (Wide~Tele)
Min. Object Distance300 ~ 1500mm (Wide~Tele)
Max. Aperture RatioF1.6 (Wide) / F4.4 (Tele)
Focus ControlAuto / Manual / Semi-Automatic
Laser
Laser Distance300 ~ 500m
Laser IntensityAutomatically adjust according to zoom ratio
Pan and Tilt
Pan / Tilt Range360° Endless / -15° ~ 90° (Auto Flip)
Pan / Tilt SpeedPan manual speed: 0.1° ~ 200°/s; Pan preset speed: 220°/s
Tilt manual speed: 0.1° ~ 150°/s; Tilt preset speed: 200°/s
Proportional ZoomPan / Tilt speed can be adjusted automatically according to zoom multiples
Preset 256
Patrol8 Patrols scheme, up to 32 presets per patrol
Pattern Scan4 Scan paths, each path can record 10 minutes of operation path
Power-off MemoryPower-off memory / Power-on recovery
Auto GuardPath / Preset / Mixed / Pan scan / Tilt scan / Frame scan / Random scan / Panorama scan
PT LimitManual / Scan / Pan
3D Positioning PTZ control with mouse click and drag
Electronic compassBuilt-in O-sensor
WiperSupported
Video
CompressionH.265 / H.264 / MJPEG
Image ResolutionMain stream: 1080p
Secondary stream: D1
Frame RateMain stream: 1080p@30fps
Secondary stream: D1@30fps
Bitrate32kbps ~ 16Mbps
Bitrate ControlVBR / CBR
Multi-streamSupported
CaptionDate and time / Alarm / Direction / Customized
Privacy MaskingUp to 4 zones
Motion DetectionUp to 4 zones
Video FreezeSupported
ROISupported
Digital Noise Reduction3D noise reduction
Digital DefogSupported
Image FlipFlip / Mirror
Audio
CompressionG.711a / G.711u / ADPCM / G.722 / G.722.1c / G.726
Bitrate32kbps ~ 64kbps
Audio FunctionBi-directional audio / AEC / Mixed audio recording / Dumb / Mute
Network
Network ProtocolsTCP/IP, UDP, HTTP, DHCP, DNS/DDNS, RTP/RTCP, RTSP, PPPoE, FTP, VSIP, UPnP, 802.1x, NAT, QoS, SMTP, IPv4, IPv6 (optional)
User InterfaceIPC Control (IE, Firefox, Chrome)
Max. User AccessMax. 10 Users (includes 2 internal)
Application ProgrammingONVIF (Profile S, Profile G), GB/T 28181-2011, API, CGI
Automatic Network Replenishment (ANR)Supported
Alarm
Alarm TriggersAlarm input / Network disconnect / Disk full / Disk error
IntelligentMotion detection / Tampering / Guard line / Enter guard area / Exit guard area / Object left / Object removal / Gathering / Audio surge
Alarm EventsAlarm report / Recording / Text overlay / Snapshot / External output / Email notice / Acoustic alarm
Interfaces
Ethernet10/100M, RJ45 interface
Audio In / Out1 x Line in / 1 x Line out
Control1 x RS485
Alarm In / Out4 x Input / 2 x Output
Video Out1 x BNC, 1.0V [p-p] / 75Ω
Memory SlotSD card slot, supports up to 128GB
Environmental
Operating Temperature-40°C ~ 70°C / -40°F ~ 158°F
Operating Humidity 10% ~ 95%
Protection LevelIP66, TVS 6000V lightning protection, surge protection and voltage transient protection
Electrical
Power 24V AC / 3A (Power adapter included)
Power ConsumptionMax. 45W (Laser on)
Mechanical
Weight 8 kg / 17.6lb (Gross Weight)
DimensionsΦ214× 379mm / Φ8.43’’ x 14.92’’
