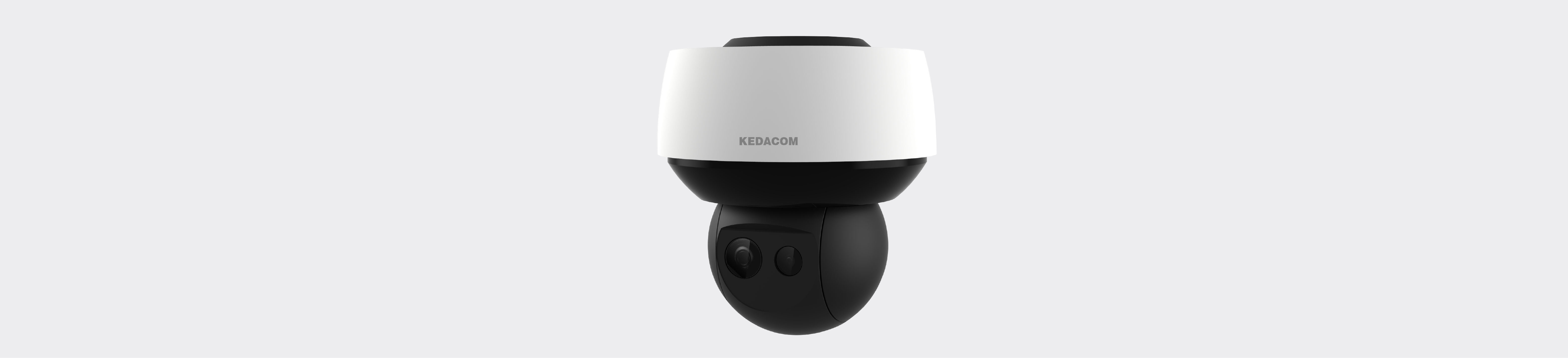

360° Panoramic + PTZ Camera(-T850)
180° Panoramic + PTZ Camera (-U850)
16 Megapixel 12 x 1/1.8’’ progressive scan CMOS sensor (-T850)
8.0 Megapixel 6 x 1/1.8’’ progressive scan CMOS sensor (-U850)
UHD 2 x 4096×1800@30fps (-T850)
H.265 video codec, saves up to 50% bandwidth and storage
Ultra low illumination, 0.001lux with color picture
Laser automatically adjusts
WDR / 3D noise reduction / HLC / BLC
Motion detection / Tampering / Guard line / Enter guard area / Exit guard area / Object left / Object removal / Gathering / Audio surge
Industrial components, withstands operation temperatures of -40°C ~70°C
IP66, TVS 6000V lightning protection, surge protection and voltage transient protection
50x optical zoom
Laser distance up to 1500m (-T850)
2 x Micro SD card optional, supports Automatic Network Replenishment (ANR)
Up to 3 Multi-stream
Bi-directional audio / alarm in and out
Built-in O-sensor
Built-in GPS module
| IPC980-T850-NL | IPC980-U850-NL | |
| Panoramic Camera | ||
| Image Sensor | 12 x 1/1.8’’ progressive scan CMOS | 6 x 1/1.8’’ progressive scan CMOS |
| Pixels | 16 Megapixel | 8.0 Megapixel |
| Compression | H.265 / H.264 / MJPEG | |
| Image Resolution | Main stream: 2 x 4096×1800 | Main stream: 4096×1800 |
| Secondary stream: D1 | ||
| Frame Rate | Main stream: 2 x 4096×1800@30fps | Main stream: 4096×1800@30fps |
| Secondary stream: D1@30fps | ||
| Bitrate | 32~16384Kbps | |
| Min. Illumination | Color: 0.001lux @ (F1.6, AGC ON) | |
| B/W: 0.0005lux @ (F1.6, AGC ON); 0lux with IR | ||
| Focal Length | 4mm | |
| Angle of View | 360° | 180° |
| Shutter Speed | 1 ~ 1/30,000s | |
| Day / Night | Auto (ICR) / Color / B/W | |
| Wide Dynamic Range | Ultra WDR, >=120dB | |
| S/N Ratio | >57dB | |
| White Balance | Auto / Manual | |
| Gain Control | Auto / Manual | |
| Backlight Compensation | Off / WDR / BLC / HLC | |
| PTZ Camera | ||
| Image Sensor | 1/1.8’’ progressive scan CMOS | |
| Pixels | 8.0 Megapixel | |
| Compression | H.265 / H.264 / MJPEG | |
| Image Resolution | Main stream: 4K (4096×2160) | |
| Secondary stream: D1 | ||
| Frame Rate | Main stream: 4K@30fps / 1080p@60fps | |
| Secondary stream: D1@30fps | ||
| Bitrate | 32kbps ~ 16Mbps | |
| Min. Illumination | Color: 0.001lux @ (F1.2, AGC ON) | |
| B/W: 0.0005lux @ (F1.2, AGC ON); 0lux with IR | ||
| Focal Length | 5.7 ~ 285mm, 50x optical | |
| Zoom Speed | Approx 3s (Optical) | |
| Angle of View | 42°~ 1.0° (Wide~Tele) | |
| Min. Object Distance | 10 ~ 1500mm (Wide~Tele) | |
| Focus Control | Auto / Manual / Semi-Automatic | |
| Shutter Speed | 1 ~ 1/30,000s | |
| Day / Night | Auto (ICR) / Color / B/W | |
| Wide Dynamic Range | Ultra WDR, >=120dB | |
| S/N Ratio | >57dB | |
| White Balance | Auto / Manual | |
| Gain Control | Auto / Manual | |
| Backlight Compensation | Off / WDR / BLC / HLC | |
| Laser | ||
| Laser Distance | 1500m | 1000m |
| Laser Intensity | Automatically adjust according to zoom ratio | |
| PTZ Camera Pan and Tilt | ||
| Pan / Tilt Range | 360° Endless / -20° ~ 90° (Auto Flip) | |
| Pan / Tilt Speed | Pan manual speed: 0.1˚~240˚/s; Pan preset speed:240°/s | |
| Tilt manual speed: 0.1˚~200˚/s ; Tilt preset speed: 200°/s | ||
| Proportional Zoom | Pan / Tilt speed can be adjusted automatically according to zoom multiples | |
| Preset | 256 | |
| Patrol | 8 Patrols scheme, up to 32 presets per patrol | |
| Pattern Scan | 4 Scan paths, each path can record 10 minutes of operation path | |
| Power-off Memory | Power-off memory / Power-on recovery | |
| Auto Guard | Path / Preset / Mixed / Pan scan / Tilt scan / Frame scan / Random scan / Panorama scan | |
| PT Limit | Manual / Scan / Pan | |
| 3D Positioning | PTZ control with mouse click and drag | |
| Electronic compass | Built-in O-sensor | |
| Video | ||
| Bitrate Control | VBR / CBR | |
| Multi-stream | Supported | |
| Caption | Date and time / Alarm / Direction / Customized | |
| Audio | ||
| Compression | G.711a / G.711u / ADPCM / G.722 / G.722.1c / G.726 | |
| Bitrate | 32kbps ~ 64kbps | |
| Audio Function | Bi-directional audio / AEC / Mixed audio recording / Dumb / Mute | |
| Network | ||
| Network Protocols | TCP/IP, UDP, HTTP, DHCP, DNS/DDNS, RTP/RTCP, RTSP, PPPoE, FTP, VSIP, UPnP, 802.1x, NAT, QoS, SMTP, IPv4, IPv6 (optional) | |
| User Interface | IPC Control (IE, Firefox, Chrome) | |
| Max. User Access | Max. 20 Users (includes 2 internal) | |
| Location Technology | GPS | |
| Application Programming | ONVIF (Profile S, Profile G), GB/T 28181-2011, API, CGI | |
| Automatic Network Replenishment (ANR) | Supported | |
| Alarm | ||
| Alarm Triggers | Alarm input / Network disconnect / Disk full / Disk error | |
| Intelligent | Motion detection / Tampering / Guard line / Enter guard area / Exit guard area / Object left / Object removal / Gathering / Audio surge | |
| Alarm Events | Alarm report / Recording / Text overlay / Snapshot / External output / Email notice / Acoustic alarm | |
| Interfaces | ||
| Ethernet | 10/100M, RJ45 interface | |
| Fiber | 1000M, FC interface, Single-mode | |
| GPS | Build-in GPS module | |
| Audio In / Out | 1 x Line in / 1 x Line out | |
| Control | 1 x RS485 | |
| Alarm In / Out | 8 x Input / 2 x Output | |
| Memory Slot | Built-in 2 x SD card (optional), supports up to 256GB/slot | |
| Environmental | ||
| Operating Temperature | -40°C ~ 70°C / -40°F ~ 158°F | |
| Operating Humidity | 10% ~ 95% | |
| Protection Level | IP66, TVS 6000V lightning protection, surge protection and voltage transient protection | |
| Electrical | ||
| Power | 48V DC ± 25% (Power Adapter Included) | |
| Power Consumption | Max. 120W (IR on) | |
| Mechanical | ||
| Weight | 40 kg / 88.2lb (Gross Weight) | |
| Dimensions | Φ290 × 545.5mm / Φ11.4" × 21.47" | |
