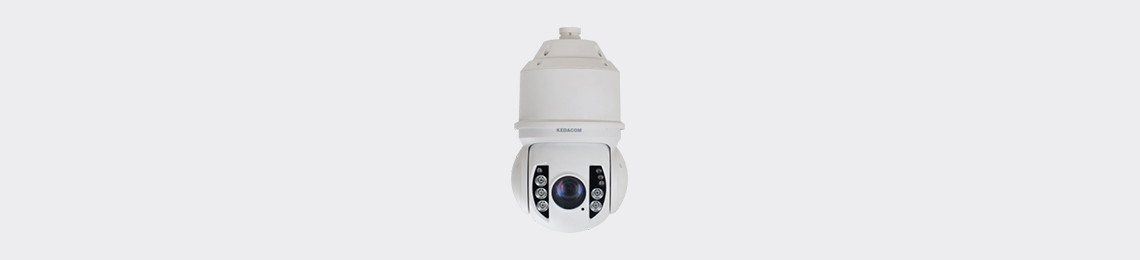

IPC425-G223-N 2.0MP Starlight HD 23x Network IR Speed Dome Camera
Excellent Image Quality
  • 2.0 Megapixel 1/1.9’’ progressive scan CMOS sensor

  • High definition and smooth picture, 1080p@60fps

  • H.265 video codec, saves up to 50% bandwidth and storage

  • Ultra low illumination, 0.002lux with color picture

  • 120dB Ultra WDR

  • IR automatically adjusts

  • WDR / HLC / 3D noise reduction

Intelligent Functions
  • Motion detection / Tampering / Guard line / Enter guard area / Exit guard area / Object left / Object removal / Gathering / Audio surge

Recognitive Functions
  • Face target capturing

  • Human auto tracking

Long Operation Lifespan
  • Industrial components, withstands operation temperatures of -40°C ~ 70°C

  • IP66, TVS 6000V lightning protection, surge protection and voltage transient protection

Large Scale
  • 23x optical zoom

  • IR distance up to 220m

Abundant Functions and Features
  • Built-in EMMC (32G included), supports Automatic Network Replenishment (ANR)

  • Up to 3 Multi-stream

  • Bi-directional audio / alarm in and out / RS485

  • Built-in GPS


Image Sensor 1/1.9’’ progressive scan CMOS
Pixels2.0 Megapixel
Min. Illumination Color: 0.002lux @ (F1.6, AGC ON)
B/W: 0.0002lux @ (F1.6, AGC ON); 0lux with IR
Shutter Speed1 ~ 1/30,000s
Day / NightAuto (ICR) / Color / B/W
Wide Dynamic RangeUltra WDR, >=120dB
S/N Ratio>55dB
White BalanceAuto / Manual
Gain ControlAuto / Manual
Backlight CompensationOff / WDR / BLC / HLC
Focal Length6 ~ 138mm, 23x optical
Zoom SpeedApprox 3s (Optical)
Angle of View70°~ 3.8° (Wide~Tele)
Min. Object Distance300 ~ 1500mm (Wide~Tele)
Max. Aperture RatioF1.5 (Wide) / F3.4 (Tele)
Focus ControlAuto / Manual / Semi-Automatic
IR LED9pcs IR LED Array
IR Distance180 ~ 220m
IR IntensityAutomatically adjust according to zoom ratio
Pan and Tilt
Pan / Tilt Range360° Endless / -15° ~ 90° (Auto Flip)
Pan / Tilt SpeedPan manual speed: 0.1° ~ 240°/s; Pan preset speed: 300°/s
Tilt manual speed: 0.1° ~ 160°/s; Tilt preset speed: 240°/s
Proportional ZoomPan / Tilt speed can be adjusted automatically according to zoom multiples
Preset 256
Patrol8 Patrols scheme, up to 32 presets per patrol
Pattern Scan4 Scan paths, each path can record 10 minutes of operation path
Power-off MemoryPower-off memory / Power-on recovery
Auto GuardPath / Preset / Mixed / Pan scan / Tilt scan / Frame scan / Random scan / Panorama scan
PT LimitManual / Scan / Pan
3D Positioning PTZ control with mouse click and drag
CompressionH.265 / H.264 / MJPEG
Image ResolutionMain stream: 1080p
Secondary stream: D1
Frame RateMain stream: 1080p@60fps
Secondary stream: D1@30fps
Bitrate32kbps ~ 16Mbps
Bitrate ControlVBR / CBR
CaptionDate and time / Alarm / Direction / Customized
Privacy MaskingUp to 4 zones
Motion DetectionUp to 4 zones
Video FreezeSupported
Digital Noise Reduction3D noise reduction
Digital DefogSupported
Image FlipFlip / Mirror
CompressionG.711a / G.711u / ADPCM / G.722 / G.722.1c / G.726
Bitrate32kbps ~ 64kbps
Audio FunctionBi-directional audio / AEC / Mixed audio recording / Dumb / Mute
Network ProtocolsTCP/IP, UDP, HTTP, DHCP, DNS/DDNS, RTP/RTCP, RTSP, PPPoE, FTP, VSIP, UPnP, 802.1x, NAT, QoS, SMTP, IPv4, IPv6 (optional)
User InterfaceIPC Control (IE, Firefox, Chrome)
Max. User AccessMax. 10 Users (includes 2 internal)
Application ProgrammingONVIF (Profile S, Profile G), GB/T 28181-2011, API, CGI
Automatic Network Replenishment (ANR)Supported
Location TechnologyGPS
Recognitive Functions
Target DetectionFace
Captured PictureFace
Human Auto TrackingSupported
Alarm TriggersAlarm input / Network disconnect / Disk full / Disk error
IntelligentMotion detection / Tampering / Guard line / Enter guard area / Exit guard area / Object left / Object removal / Gathering / Audio surge
Alarm EventsAlarm report / Recording / Text overlay / Snapshot / External output / Email notice / Acoustic alarm
Ethernet10/100M, RJ45 interface
Audio In / Out1 x Line in / 1 x Line out
Control1 x RS485
Alarm In / Out4 x Input / 2 x Output
Memory SlotBuilt-in EMMC (32G included)
Operating Temperature-40°C ~ 70°C / -40°F ~ 158°F
Operating Humidity 10% ~ 95%
Protection LevelIP66, TVS 6000V lightning protection, surge protection and voltage transient protection
Power 24V AC / 3A (Power adapter included)
Power ConsumptionMax. 45W (IR on)
Weight 8 kg / 17.6lb (Gross Weight)
DimensionsΦ214× 379mm / Φ8.43’’ x 14.92’’
