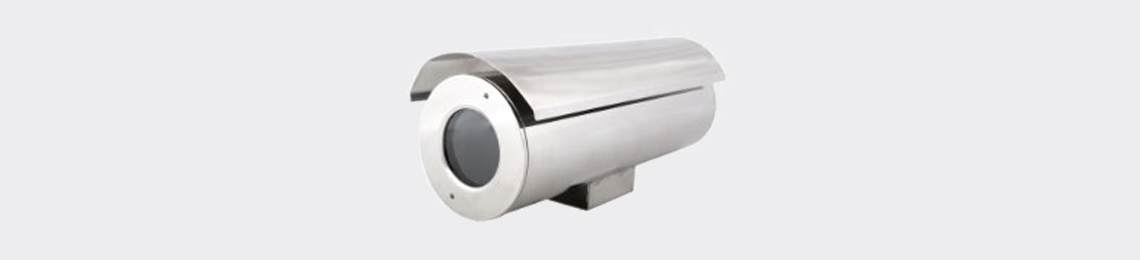

IPC820-FB 2.0MP Explosion-Proof HD 20x Network Zoom Camera
Excellent Image Quality
  • 2.0 Megapixel 1/2.8’’ progressive scan CMOS sensor
  • High definition and smooth picture, 1080p@30fps
  • H.265 video codec, saves up to 50% bandwidth and storage
  • Ultra low illumination, 0.003lux with color picture
  • 120dB Ultra WDR
  • HLC / 3D noise reduction

Intelligent Functions
  • Motion detection / Tampering / Guard line / Enter guard area / Exit guard area

Explosion-Proof
  • Stainless steel enclosure with explosion-proof of ExdⅡCT6 / DIP A20 TA,T6
  • Withstands operation temperatures of -30°C ~ 60°C
  • IP68, TVS 6000V lightning protection, surge protection and voltage transient protection

Abundant Functions and Features
  • Micro SD card optional, supports Automatic Network Replenishment (ANR)
  • Up to 3 Multi-stream
  IPC820-FB
Camera
Image Sensor  1/2.8’’ progressive scan CMOS
Pixels 2.0 Megapixel
Min. Illumination  Color: 0.003lux @ (F1.6, AGC ON)
B/W: 0.0003lux @ (F1.6, AGC ON)
Shutter Speed 1 ~ 1/30,000s
Day / Night Auto (ICR) / Color / B/W
Wide Dynamic Range Ultra WDR, >=120dB
S/N Ratio >53dB
White Balance Auto / Manual
Gain Control Auto / Manual
Backlight Compensation Off / WDR / BLC / HLC
Lens
Focal Length 4.7 ~ 94mm, 20x optical
Zoom Speed Approx 3s (Optical)
Angle of View 61°~ 3.64° (Wide~Tele)
Min. Object Distance 300 ~ 1000mm (Wide~Tele)
Max. Aperture Ratio F1.6 (Wide) / F3.5 (Tele)
Focus Control Auto / Manual / Semi-Automatic
Video
Compression H.265 / H.264 / MJPEG
Image Resolution Main stream: 1080p
Secondary stream: D1
Frame Rate Main stream: 1080p@30fps
Secondary stream: D1@30fps
Bitrate 32kbps ~ 16Mbps
Bitrate Control VBR / CBR
Multi-stream Supported
Caption Date and time / Alarm / Direction / Customized
Privacy Masking Up to 4 zones
Motion Detection Up to 4 zones
Video Freeze Supported
ROI Supported
Digital Noise Reduction 3D noise reduction
Digital Defog Supported
Image Flip Flip / Mirror
Network
Network Protocols TCP/IP, UDP, HTTP, DHCP, DNS/DDNS, RTP/RTCP, RTSP, PPPoE, FTP, VSIP, UPnP, 802.1x, NAT, QoS, SMTP, IPv4, IPv6 (optional)
User Interface IPC Control (IE, Firefox, Chrome)
Max. User Access Max. 10 Users (includes 2 internal)
Application Programming ONVIF (Profile S, Profile G), GB/T 28181-2011, API, CGI
Automatic Network Replenishment (ANR) Supported
Alarm
Alarm Triggers Network disconnect / Disk full / Disk error
Intelligent Motion detection / Tampering / Guard line / Enter guard area / Exit guard area
Alarm Events Alarm report / Recording / Text overlay / Snapshot / Email notice
Interfaces
Ethernet 10/100M, RJ45 interface
Memory Slot Built-in Micro SD card (optional), up to 128GB
Environmental
Operating Temperature -30°C ~ 60°C / -22°F ~ 140°F
Operating Humidity  10% ~ 90%
Protection Level IP68, TVS 6000V lightning protection, surge protection and voltage transient protection
Explosion-proof mark ExdⅡCT6 / DIP A20 TA,T6
Electrical
Power  -220: 220V AC ± 10%
-110: 110V AC ± 10%
Power Consumption Max. 5W
Mechanical
Weight  12 kg / 24.46lb  (Gross Weight)
Dimensions 150 x 165 x 350mm / 5.91’’ x 6.5’’ x 13.78’’
Mounting Bracket Bracket included
