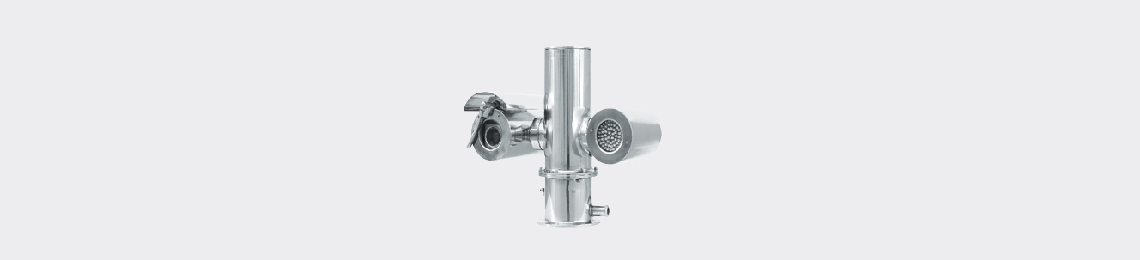

IPC520-F233-FBIR 2.0MP Explosion-Proof HD 20x Network IR PTZ Camera
Excellent Image Quality
  • 2.0 Megapixel 1/2.8’’ progressive scan CMOS sensor
  • High definition and smooth picture, 1080p@60fps
  • H.265 video codec, saves up to 50% bandwidth and storage
  • Ultra low illumination, 0.003lux with color picture
  • 120dB Ultra WDR
  • HLC / 3D noise reduction
Intelligent Functions
  • Motion detection / Tampering / Guard line / Enter guard area / Exit guard area / Object left / Object removal / Gathering
Large Scale
  • 33x optical zoom
  • IR distance up to 220m
Explosion-Proof
  • Stainless steel enclosure with explosion-proof of ExdⅡCT6 / DIP A20 TA,T6
  • Withstands operation temperatures of -40°C ~ 70°C
  • IP68, TVS 6000V lightning protection, surge protection and voltage transient protection
Abundant Functions and Features
  • SD card optional, supports Automatic Network Replenishment (ANR)
  • Up to 3 Multi-stream



  IPC520-F233-FBIR
Camera
Image Sensor  1/2.8’’ progressive scan CMOS
Pixels 2.0 Megapixel
Min. Illumination  Color: 0.003lux @ (F1.6, AGC ON)
B/W: 0.0003lux @ (F1.6, AGC ON)
Shutter Speed 1 ~ 1/30,000s
Day / Night Auto (ICR) / Color / B/W
Wide Dynamic Range Ultra WDR, >=120dB
S/N Ratio >55dB
White Balance Auto / Manual
Gain Control Auto / Manual
Backlight Compensation Off / WDR / BLC / HLC
Lens
Focal Length 4.5 ~ 148.5mm, 33x optical
Zoom Speed Approx 3s (Optical)
Angle of View 67.8°~ 2.34° (Wide~Tele)
Min. Object Distance 100 ~ 1000mm (Wide~Tele)
Max. Aperture Ratio F1.5 (Wide) / F4.4 (Tele)
Focus Control Auto / Manual / Semi-Automatic
Infrared
IR LED IR LED Array
IR Distance 180 ~ 220m
IR Intensity Automatically adjust according to zoom ratio
Pan and Tilt
Pan / Tilt Range 360° Endless / -90° ~ 90°
Pan / Tilt Speed Pan manual speed: 1° ~ 40°/s; Pan preset speed: 40°/s
Tilt manual speed: 0.1° ~ 40°/s; Tilt preset speed: 40°/s
Proportional Zoom Pan / Tilt speed can be adjusted automatically according to zoom multiples
Preset  256
Patrol 8 Patrols scheme, up to 32 presets per patrol
Pattern Scan 4 Scan paths, each path can record 10 minutes of operation path
Power-off Memory Power-off memory / Power-on recovery
Auto Guard Path / Preset / Mixed / Pan scan / Tilt scan / Frame scan / Random scan / Panorama scan
PT Limit Manual / Scan / Pan
3D Positioning  PTZ control with mouse click and drag
Video
Compression H.265 / H.264 / MJPEG
Image Resolution Main stream: 1080p
Secondary stream: D1
Frame Rate Main stream: 1080p@60fps
Secondary stream: D1@30fps
Bitrate 32kbps ~ 16Mbps
Bitrate Control VBR / CBR
Multi-stream Supported
Caption Date and time / Alarm / Direction / Customized
Privacy Masking Up to 4 zones
Motion Detection Up to 4 zones
Video Freeze Supported
ROI Supported
Digital Noise Reduction 3D noise reduction
Digital Defog Supported
Image Flip Flip / Mirror
Network
Network Protocols TCP/IP, UDP, HTTP, DHCP, DNS/DDNS, RTP/RTCP, RTSP, PPPoE, FTP, VSIP, UPnP, 802.1x, NAT, QoS, SMTP, IPv4, IPv6 (optional)
User Interface IPC Control (IE, Firefox, Chrome)
Max. User Access Max. 10 Users (includes 2 internal)
Application Programming ONVIF (Profile S, Profile G), GB/T 28181-2011, API, CGI
Automatic Network Replenishment (ANR) Supported
Alarm
Alarm Triggers Network disconnect / Disk full / Disk error
Intelligent Motion detection / Tampering / Guard line / Enter guard area / Exit guard area / Object left / Object removal / Gathering
Alarm Events Alarm report / Recording / Text overlay / Snapshot / Email notice
Interfaces
Ethernet 10/100M, RJ45 interface
Memory Slot Built-in SD card (optional), supports up to 128GB
Environmental
Operating Temperature -40°C ~ 70°C / -40°F ~ 158°F
Operating Humidity  10% ~ 95%
Protection Level IP68, TVS 6000V lightning protection, surge protection and voltage transient protection
Explosion-proof mark ExdⅡCT6 / DIP A20 TA,T6
Electrical
Power  24V AC / 3A (Power adapter included)
Power Consumption Max. 55W (IR on)
Mechanical
Weight  11 kg / 24.25lb  (Gross Weight)
Dimensions 285 × 395 × 445mm / 11.2’’ x 15.55’’ x 17.52’’
