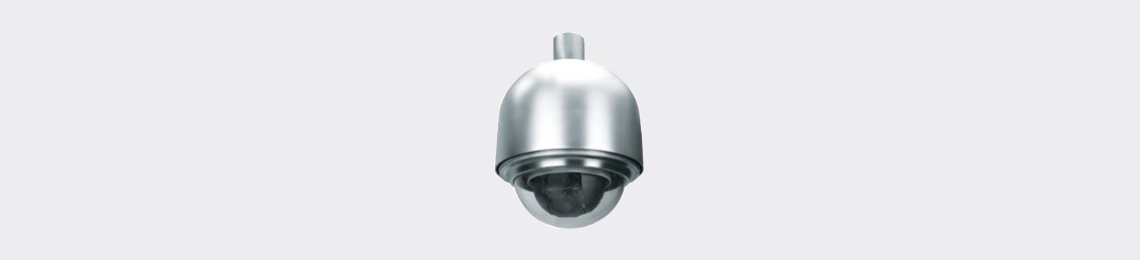

IPC421-FB 2.0MP Explosion-Proof HD 20x Network Speed Dome Camera
Excellent Image Quality
  • 2.0 Megapixel 1/2.8’’ progressive scan CMOS sensor
  • High definition and smooth picture, 1080p@30fps
  • H.265 video codec, saves up to 50% bandwidth and storage
  • Ultra low illumination, 0.003lux with color picture
  • 120dB Ultra WDR
  • HLC / 3D noise reduction
Intelligent Functions
  • Motion detection / Tampering / Guard line / Enter guard area / Exit guard area
  • Stainless steel enclosure with explosion-proof of ExdⅡCT6 / DIP A20 TA,T6
  • Withstands operation temperatures of -40°C ~ 60°C
  • IP68, TVS 6000V lightning protection, surge protection and voltage transient protection
Abundant Functions and Features
  • SD card optional, supports Automatic Network Replenishment (ANR)
  • Up to 3 Multi-stream
Image Sensor 1/2.8’’ progressive scan CMOS
Pixels2.0 Megapixel
Min. Illumination Color: 0.003lux @ (F1.6, AGC ON)
B/W: 0.0003lux @ (F1.6, AGC ON)
Shutter Speed1 ~ 1/30,000s
Day / NightAuto (ICR) / Color / B/W
Wide Dynamic RangeUltra WDR, >=120dB
S/N Ratio>53dB
White BalanceAuto / Manual
Gain ControlAuto / Manual
Backlight CompensationOff / WDR / BLC / HLC
Focal Length4.7 ~ 94mm, 20x optical
Zoom SpeedApprox 3s (Optical)
Angle of View61°~ 3.64° (Wide~Tele)
Min. Object Distance300 ~ 1000mm (Wide~Tele)
Max. Aperture RatioF1.6 (Wide) / F3.5 (Tele)
Focus ControlAuto / Manual / Semi-Automatic
Pan and Tilt
Pan / Tilt Range360° Endless / 0° ~ 90°
Pan / Tilt SpeedPan manual speed: 0.1° ~ 250°/s; Pan preset speed: 450°/s
Tilt manual speed: 0.1° ~ 150°/s; Tilt preset speed: 350°/s
Proportional ZoomPan / Tilt speed can be adjusted automatically according to zoom multiples
Preset 256
Patrol8 Patrols scheme, up to 32 presets per patrol
Pattern Scan4 Scan paths, each path can record 10 minutes of operation path
Power-off MemoryPower-off memory / Power-on recovery
Auto GuardPath / Preset / Mixed / Pan scan / Tilt scan / Frame scan / Random scan / Panorama scan
PT LimitManual / Scan / Pan
3D Positioning PTZ control with mouse click and drag
CompressionH.265 / H.264 / MJPEG
Image ResolutionMain stream: 1080p
Secondary stream: D1
Frame RateMain stream: 1080p@30fps
Secondary stream: D1@30fps
Bitrate32kbps ~ 16Mbps
Bitrate ControlVBR / CBR
CaptionDate and time / Alarm / Direction / Customized
Privacy MaskingUp to 4 zones
Motion DetectionUp to 4 zones
Video FreezeSupported
Digital Noise Reduction3D noise reduction
Digital DefogSupported
Image FlipFlip / Mirror
Network ProtocolsTCP/IP, UDP, HTTP, DHCP, DNS/DDNS, RTP/RTCP, RTSP, PPPoE, FTP, VSIP, UPnP, 802.1x, NAT, QoS, SMTP, IPv4, IPv6 (optional)
User InterfaceIPC Control (IE, Firefox, Chrome)
Max. User AccessMax. 10 Users (includes 2 internal)
Application ProgrammingONVIF (Profile S, Profile G), GB/T 28181-2011, API, CGI
Automatic Network Replenishment (ANR)Supported
Alarm TriggersNetwork disconnect / Disk full / Disk error
IntelligentMotion detection / Tampering / Guard line / Enter guard area / Exit guard area
Alarm EventsAlarm report / Recording / Text overlay / Snapshot / Email notice
Ethernet10/100M, RJ45 interface
Memory SlotBuilt-in SD card (optional), supports up to 128GB
Operating Temperature-40°C ~ 60°C / -40°F ~ 140°F
Operating Humidity 10% ~ 95%
Protection LevelIP68, TVS 6000V lightning protection, surge protection and voltage transient protection
Explosion-proof markExdⅡCT6 / DIP A20 TA,T6
Power -220: 220V AC ± 10%
-110: 110V AC ± 10%
Power ConsumptionMax. 55W (Heater on)
Weight 20 kg / 44.09lb  (Gross Weight)
DimensionsΦ240 × 470mm / Φ9.45’’ x 18.5’’
Mounting BracketBracket included
